HM8118
Basic Accuracy 0.05 %
Measurement functions L, C, R, |Z|, X, |Y|, G, B, D, Q, Θ, Δ, M, N
Test frequencies from 20 Hz to 200 kHz
Up to 12 measurements per second
Parallel and Series Mode
Binning and limits for parts sorting (optional)
Internal programmable voltage and current bias
Transformer parameter measurement
External capacitor bias up to 40 V
Kelvin cable and 4 wire SMD Test adapter included in delivery
Galvanically isolated USB/RS-232 Interface, optional: IEEE-488
HZ181 4 Wire Test Fixture
with shorting plate
HZ184 Kelvin Clip Leads
(included in delivery)
HZ188 4 Wire SMD Test
Fixture (included in delivery)

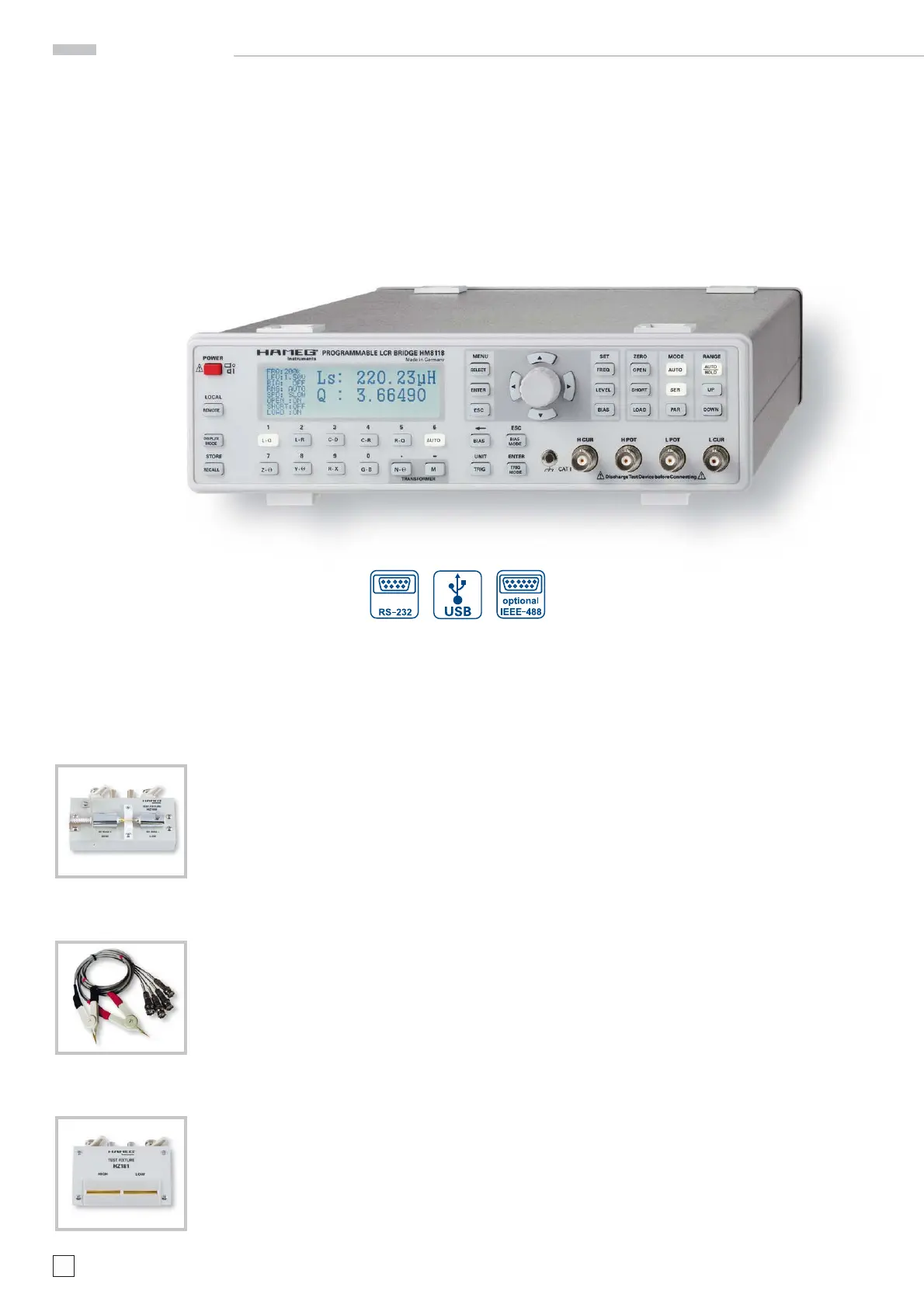

LCR-Bridge
HM8118
HM8118

Hameg HM8118 Specifications

General

Brand	Hameg
Model	HM8118
Category	Measuring Instruments
Language	English
