5
Subject to change without notice
RF
for Laboratory
and Service
The HM8134-2 is an exceptionally low-price RF-
Synthetiseur combining high performance with fast and
easy operation. It has excellent basic specifications,
including such characteristics as high frequency stability,
fast frequency change response time, spectral purity,
and repeatable signal output levels.
The HM8134-2 provides continuous frequency coverage
from as low as 1Hz up to 1,2GHz. This wide range covers
the most commonly needed spectrum of audio, video,
and IF frequencies, as well as the RF frequencies used by
receivers and transmitters in a wide variety of
communication systems. The frequency resolution is
1Hz.
The other propriety are a four modulation (AM/FM/ PM/
GATE), a modulation source internal may be varied
between 10Hz and 100kHz, a modulation shape are (SIN
/ SQR / TRI / +RP / -RP). External input allow modulation
between DC and 100kHz. The FM deviation may be
varied up to ± 400kHz and the PM deviation 10rad , the
AM modulation depth is variable from 0 to 100% and the
GATE on/off Ratio between 50dB and 80dB.
The HM8134-2 have a fast response time of 10ms for
frequency and amplitude changes (same range frequency
and without modulation) is another outstanding chara-
cteristic of this instrument.

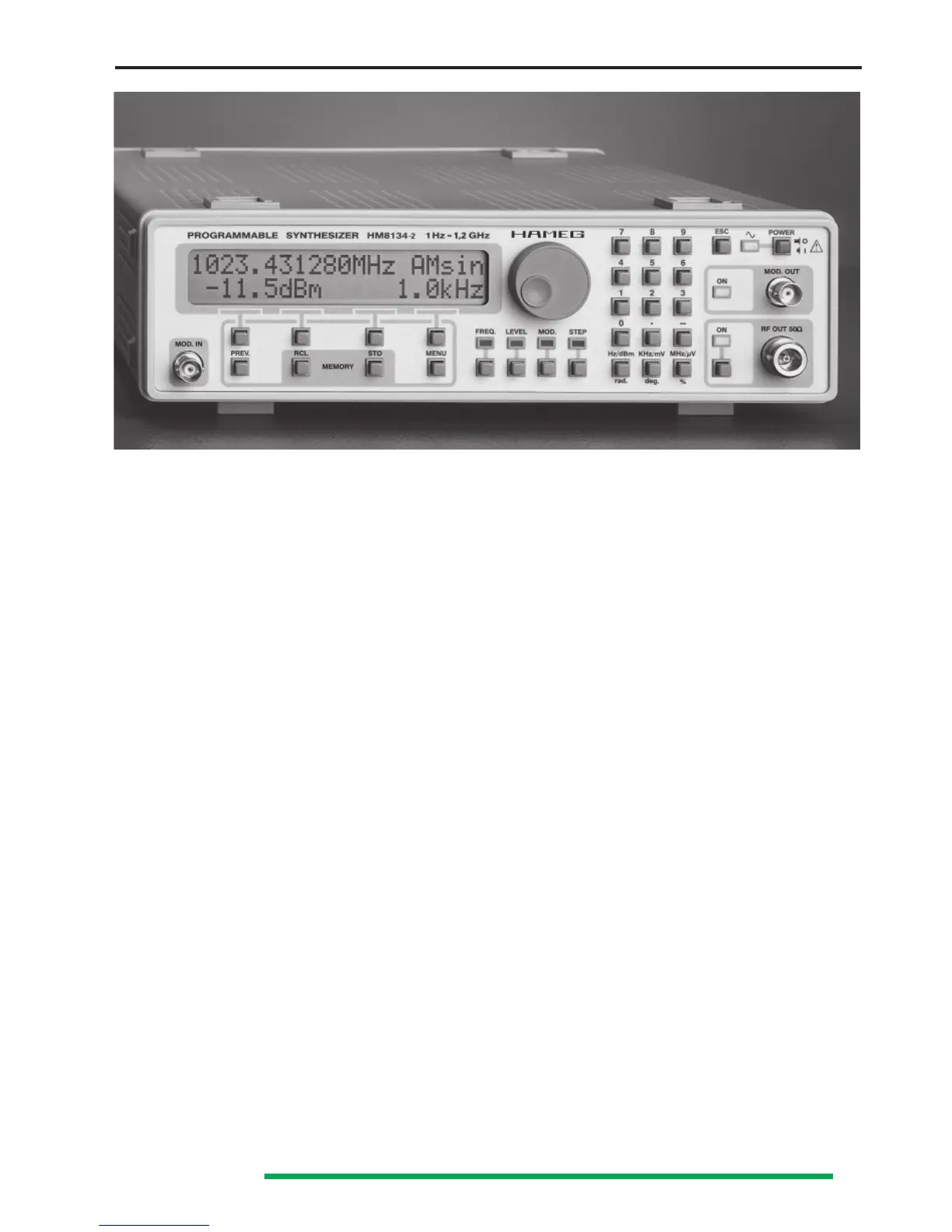

The instrument parameters are all clearly displayed on
two lines of 20 characters each on a backlight LCD.
The HM8134-2 was designed with the thought of
operational ease and productivity in mind. Menu-driven
operation gives clear, up-front information at every stage.
Parameters are either set via the center rotary dial or by
the front-panel keypad. A maximum of ten frequently
used instrument settings can be stored in a non-volatile
memory.
Full programmability for use in automated measuring
systems is provided by the optional IEEE-488 (HO88) or
RS232 (HO89) interfaces. Either one of these options can
be factory-installed at the time of purchase, or can easily
be added by the user.
With the HM8134-2, HAMEG offers a price/performance
ratio unsurpassed in today’s market. As already success-
fully demonstrated in its oscilloscope and Modular Sy-
stem HM8000 series, HAMEG has again reached its goal
of cost-effective, high-quality instrumentation by con-
centrating on essentials, keeping operation simple without
omitting important functions.
I Frequency range: 1Hz to 1200MHz
I Frequency accuracy ±5x10
-7
(optional ±5x10
-8
)
I Frequency resolution 1Hz
I AM / FM / PM / GATE - Modulation
I Optional IEEE-488 and RS 232 - Interface
RF-Synthesizer HM8134-2
