Subject to change without notice
Input impedance: 10kΩ
Input voltage: the modulation is calibrated with 2Vcc
Output source (int,ext): (BNC jack in front panel)
Output voltage: ≤ ± 2V
Amplitude modulation
Level: ≤ +7dBm
Modulation source: internal ,external
AM-depth: 0 to 100%
Resolution: 0,1%
Accuracy (internal sine): ±4% of reading ±0,5% of value
( AM-depth ≤ 80% , Fmod ≤ 1kHz)
±7% of reading ±0,5% of value
( AM-depth ≤ 80% , Fmod > 1kHz)
Bandwidth ext: (to 1dB)
10Hz-50kHz AC coupled
Distorsion: <2% (AM-depth ≤ 60% to 1kHz)
<6% (AM-depth ≤ 80% , level = +7dBm 10Hz to 20kHz)
Frequency modulation
Modulation source: internal ,external
Deviation: ±200Hz to ±150kHz (<16MHz )
± 2kHz to ±400kHz ( 16 -256MHz)
± 1kHz to ±200kHz ( 256 -512MHz)
± 2kHz to ±400kHz ( 512 -1024MHz)
Resolution: 100Hz
Accuracy (internal sine): ±2% Fmod ≤ 1kHz + residual-FM
±5% Fmod > 1kHz + residual-FM
Bandwidth ext: (to 1dB)
DC coupled: DC- 30kHz(100kHz <16MHZ) NUM
AC coupled: 10Hz- 30kHz(100kHz <16MHZ) NUM
30kHz-100kHz ANA
Distorsion: < 3% for deviations ≥ 10kHz
Phase modulation
Modulation source: internal ,external
Deviation: 0 to 3,14rad ( <16MHz )
0 to 10rad ( 16 - 1200MHz )
Resolution: 0,01rad
Accuracy (internal sine): ±5% to 1kHz + residual-PM
Bandwidth ext: (to 1dB)
DC coupled: DC- 30kHz (100kHz <16MHZ) NUM
AC coupled: 10Hz- 30kHz (100kHz <16MHZ) NUM
30kHz-100kHz ANA
Distorsion: < 3% for Fmod=1kHz, Deviation=10rad
Gate modulation
Modulation source: external
on/off Ratio: ≥ 65dB (<16MHz)
≥ 80dB (16MHz - 512MHz)
≥ 50dB (512MHz -1200MHz)
Rise/Fall time: ≤ 1,5µs (<16MHz )
≤ 7,5µs (16MHz -1200MHz )
Delay time: ≤ 1,5µs (<16MHz )
≤ 15µs (16MHz -1200MHz )
Input modulation: (BNC jack in back panel)
Input level: TTL: 0 OFF 1 ON or 1 OFF 0 ON
General
Interfaces: options bus IEEE-488(HO88) or RS232(HO89)
IEEE-488 functions: (T6),(L4) SH1,AH1,RL1,DC1,DT0 and R0(HO80)
Set-up memory locations: 10
Dimensions: 285 X 75 X 365 (W X H XD)
Weight: approx. 10kg
Power consumption: approx. 70VA
Operating conditions: +0°C to +40°C
Humidity: 10% - 90% no condensation
Warm up time: typ. 60min.for the specifications
Supply voltages: 115/230V ±10%, 50-60Hz
Safety: classe I (IEC 1010-1/VDE 0411)
Specifications
(Referency temperature :23°C ±2°C)
Frequency
Range: 1Hz to 1200MHz
Resolution: 1Hz
Setting time: < 10ms (if same range)
< 60ms (range to range)
Standard 10MHz
Stability (10 to 40°C): ≤ ± 0,5ppm
Aging: ≤ ± 1ppm/year
Option OCXO 10MHz
Stability (10 to 40°C): ≤ ± 5 10-8
Aging: ≤ ± 5 10-9/day
Output referency internal: ( BNC jack in back panel)
Output voltage: TTL
Input referency external: ( BNC jack in back panel)
Input frequency: 10MHz ±5ppm
Input level: > 0dBm
Spectral purity
without modulation, level ≤ +10dBm
Harmonic: 1Hz to 1200MHz ≤ -30dBc
Non harmonic: 16MHz to 500MHz ≤ -55dBc
( > 15kHz offset)
Residual-FM: < 50Hz RMS to 1GHz (0,3-3kHz BW)
Residual-PM: <0,06rad RMS to 1GHz (0,3-3kHz BW)
Residual-AM: < 0,1% (50Hz to 10kHz)

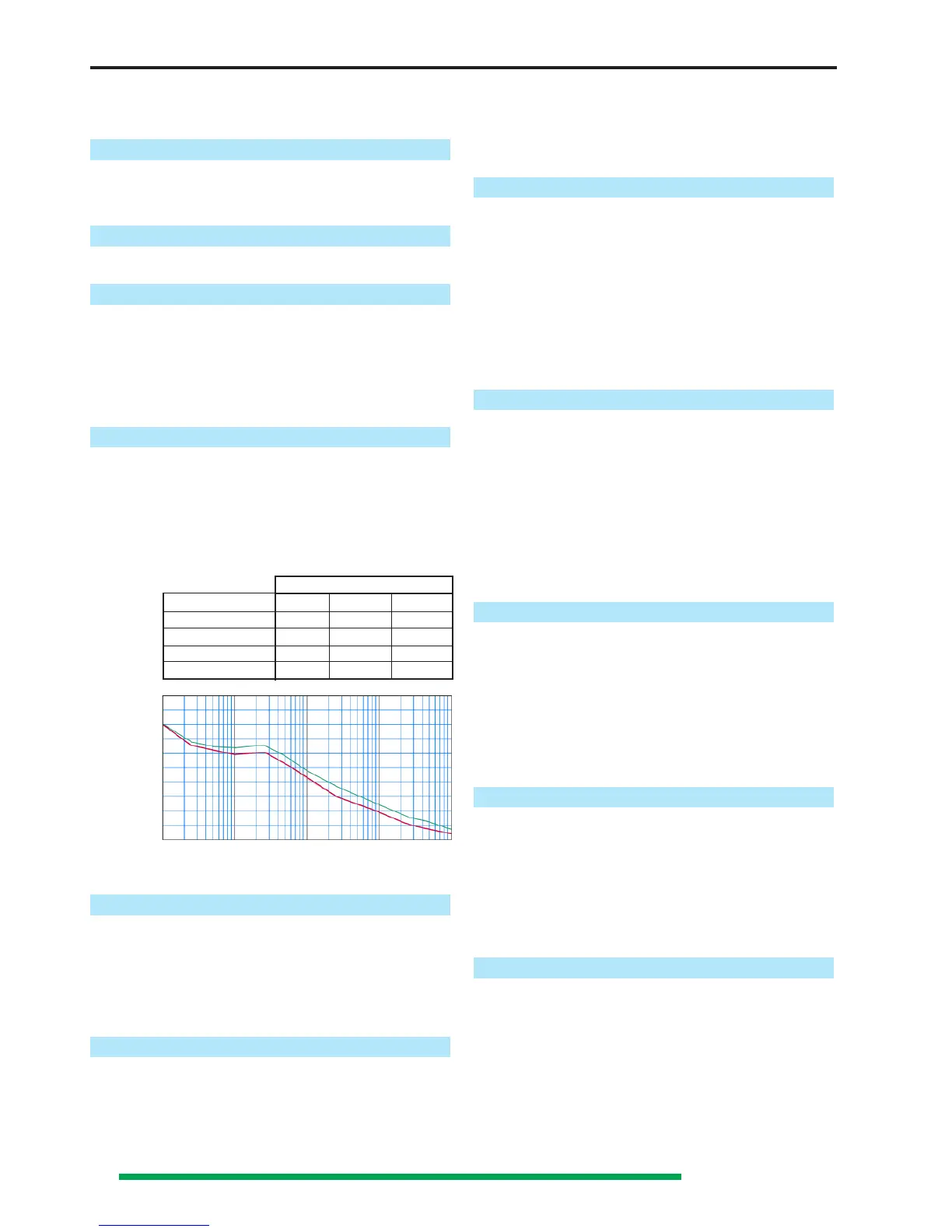

Phase noise (dBc/Hz)
Offset
Range 1kHz 10kHz 100kHz
<16MHz -82 -100 -121
16 - 256MHz -74 -84 -108
256 - 512MHz -80 -90 -115
512 -1024MHz -74 -84 -108
100 1000 1x10
4
1x10
5
1x10
6
Offset (Hz)
Output level
Range: -127dBm to +13dBm
Resolution: 0,1dB
Accuracy: ± 0,5dBm level ≥ -57dBm
±(1dBm+0,4dBm/10dB)level < -57dBm
Setting time: < 10ms (with modulation)
< 60ms (without modulation)
Impedance: 50Ω
V.S.W.R.: <1,5
Modulation source
Modulation source int: 10Hz to 100kHz (40kHz in AM ) Sine
10Hz to 20kHz Sqr, Tri, Rmp+, Rmp-
Resolution: 10Hz
Input modulation ext: ( BNC jack in front panel)
-40
-50
-60
-70
-80
-90
-100
-110
-120
-130
-140
Phase noise (dBc/Hz)
Technical specifications HM8134-2
