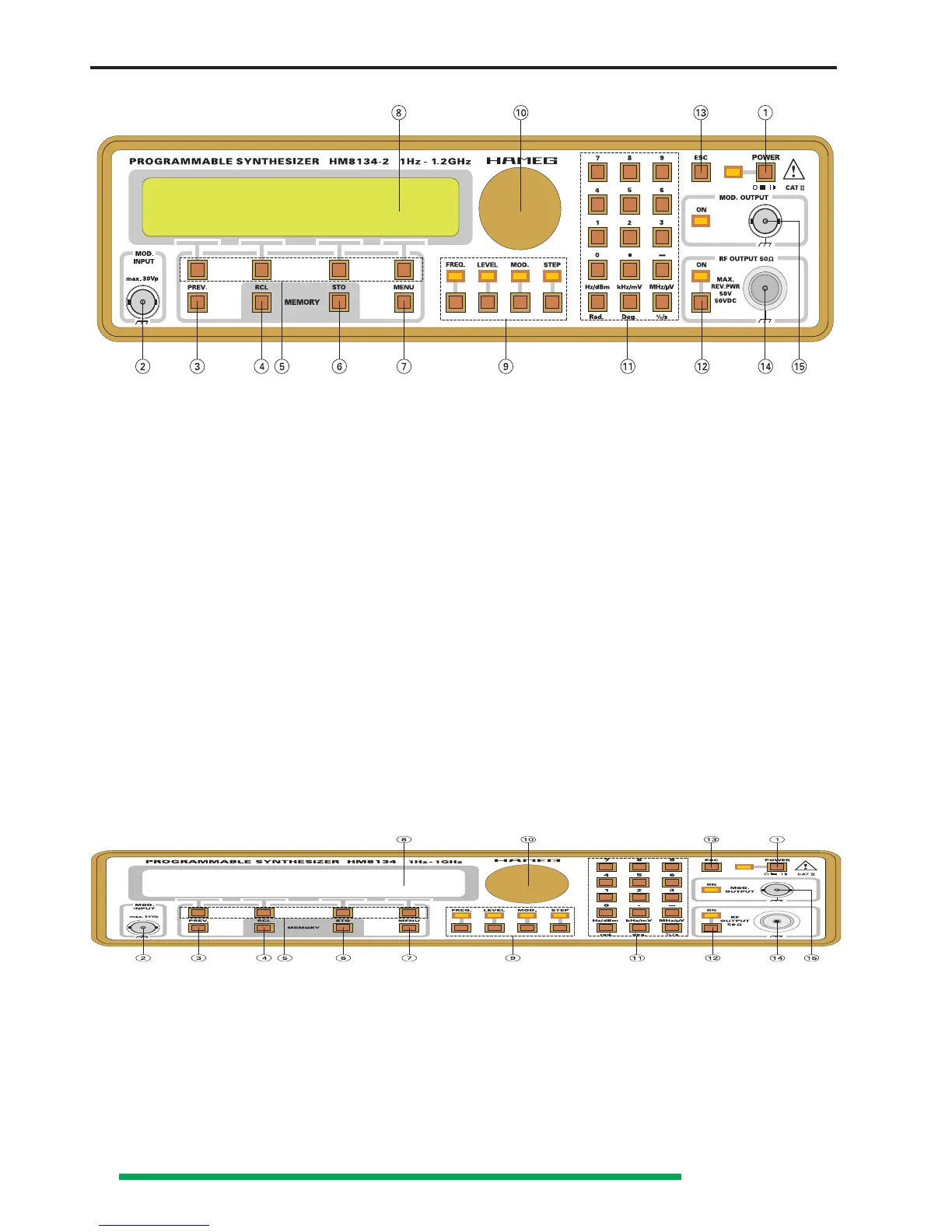

Control elements HM8134 (Front side):
(1) POWER
On / Off switch and led.
(2) MOD. IN
Input of external modulation.
(3) PREV.
Selection of previous menu.
(4) MEMORY RCL
Key for recalling one of 10 memories for instrument
settings.
(5) CONTEXT SENSITIVE KEYS
Action depending on the context display.
(6) MEMORY STO
Key for storing one of 10 memories for instrument
settings.
(7) MENU
Input key in the configuration menu.
(8) DISPLAY
Two lines of 20 characters each on a backlight LCD.
(9) FUNCTIONS
Functions keys and leds.
(10) DIGITAL ROTARY CONTROL
(11) NUMERIC KEYPAD
Input parameters with unit validation.
(12) ON/OFF
Key for activation of output.
(13) ESC.
Cancels the current display.
(14) RF OUT
Signal output.
(15) MOD. OUT
Output for modulation signal.
(16) MAINS / LINE SOCKET
(20) REF. 10MHz OUTPUT
(21) REF. 10MHz INPUT
(22) INTERFACE
Connector interface HO90 (Option HO88/89)
Control elements HM8134 (Rear side):
(17) VOLTAGE SELECTOR
(18) FUSE
(19) GATE INPUT
TTL-compatible
Control elements HM8134
