Hamilton Engineering EVO Plus Series User Manual

7

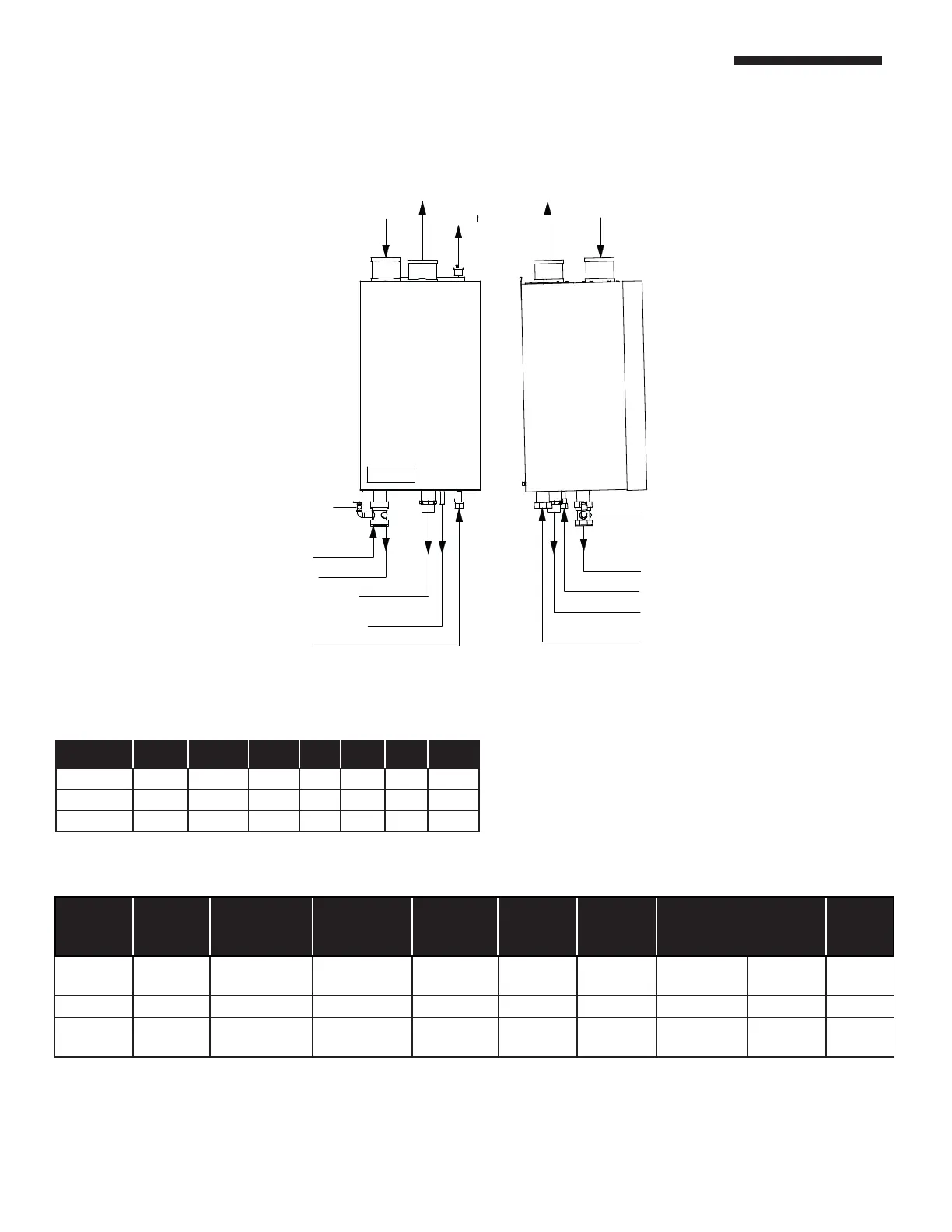

C. DIMENSIONS
PART 1. GENERAL INFORMATION
TABLE 12 EVO INFORMATION
*At 97% thermal eciency with 86
o
F incoming water to heat exchanger
**At 95% thermal eciency with 140
o
F incoming water to heat exchanger
Model
Input
BTU/hr
Water Heater*
Output
BTU/hr
Boiler**
Output
BTU/hr
GPH
Recovery
@ 100˚F∆T
GPH
Recovery
@ 80˚F∆T
GPH
Recovery
@ 60˚F∆T
Water Flow Rate &
Pressure Drop
DWH
†
Heating
Shipping
Weight
HW 299 300,000 up to 291,000
up to
285,000
360 450 600 16.5@22.9' 11.0@9.3' 172 lbs
HW 399 399,999 up to 387,999 up to 379,999 466 582 776 26.4@20.3' 17.6@8.5' 204 lbs
HW 599 630,000 up to 611,100 up to
598,500
734 917 1223 39.6@23.6' 26.4@9.4' 260 lbs
3/4"=1'
Reference dimensions are ± 10%
All dimensions are ± 1"
Custom
Dwg No.
Customer / Job name:
Scale:
Description:
Drawn/
Revised by:
Checked/
Apv. by:
Revision:
MM/DD/YY
Date:
Condensate Waste
Air Vent
Air In (A)
Exhaust
Out (A)
Front View
Condensate Waste
Condensate Waste
Condensate Trap
Cleaning Point
Gas (D)
Inlet (B)
Outlet (C)
Relief Valve
Condensate Waste
Air Vent
Condensate Trap
Cleaning Point
Gas (D)
Inlet (B)
Air In (A)
Left View
Outlet (C)
Exhaust
Out (A)
Relief Valve
TABLE 11 EVO DIMENSIONS
Model Width Heightt Depth A B C D
299 19" 33" 19" 4" 1.5" 1.5" 0.75"
399 19" 33" 19" 4" 2" 2" 0.75"
599 19" 35" 26.5" 5" 2" 2" 1"
