Document #101-0079 19 11/30/17

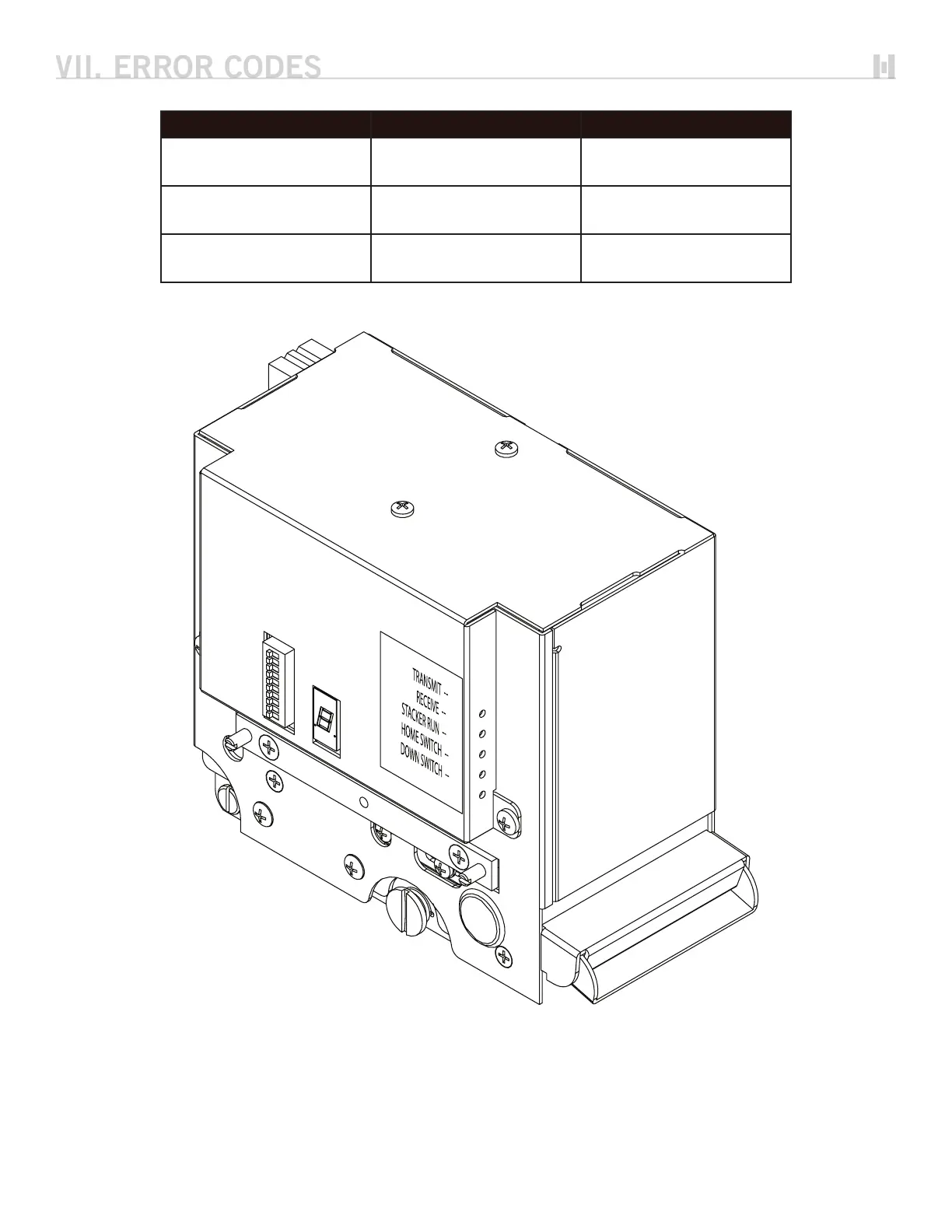

STACKER POSITION SINGLE STACKER SEPARATING STACKER

Home position

Home LED = OFF

Down LED = ON

Home LED = ON

Down LED = OFF

Between home and

down position

Home LED = ON

Down LED = ON

Home LED = OFF

Down LED = OFF

Down position

Home LED = ON

Down LED = ON

Home LED = ON

Down LED = ON
