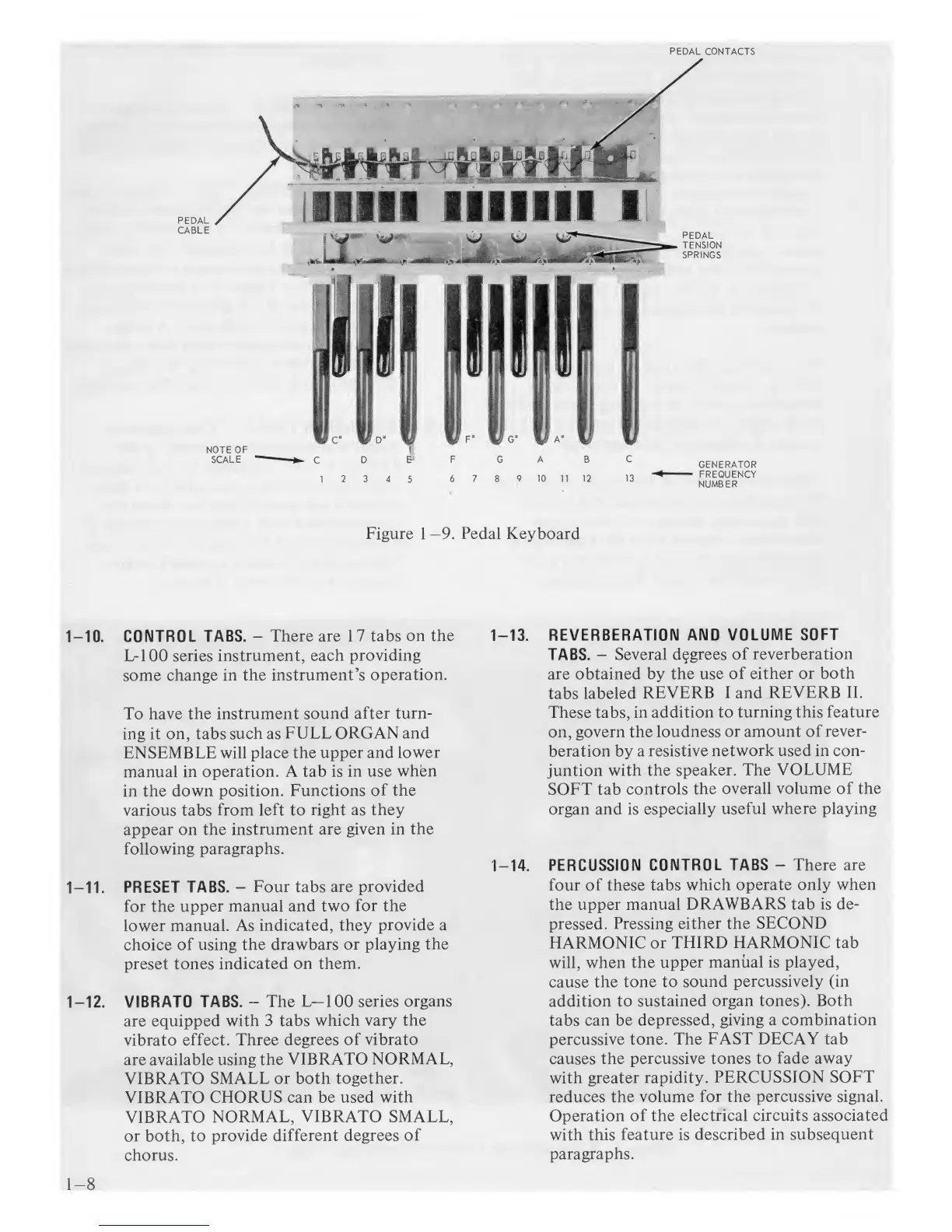

Hammond L series User Manual

PEDAL CONTACTS
Jlllll
lllllll
I
Figure 1
—9.
Pedal
Keyboard
1-10.
CONTROL
TABS.
-
There are
17
tabs
on
the
L-lOO
series
instrument, each
providing
some
change
in the
instrument's
operation.
To
have the
instrument
sound
after turn-
ing
it
on, tabs
such as
FULL ORGAN and
ENSEMBLE will
place the
upper and lower
manual
in
operation. A tab is
in use
when
in the
down
position.
Functions
of
the
various
tabs
from
left
to
right as
they
appear
on the instrument
are given in
the
following
paragraphs.
1-11.
PRESET
TABS.
-
Four
tabs
are provided
for
the
upper manual and
two
for
the
lower manual. As
indicated, they
provide a
choice
of
using
the
drawbars
or playing
the
preset tones
indicated
on them.
1-12.
VIBRATO
TABS.
-
The L-lOO
series
organs
are
equipped with 3
tabs
which
vary the
vibrato
effect.
Three
degrees
of
vibrato
are available
using
the
VIBRATO NORMAL,
VIBRATO
SMALL or both
together.
VIBRATO
CHORUS
can
be
used
with
VIBRATO
NORMAL,
VIBRATO SMALL,
or both, to provide
different
degrees
of
chorus.
1-13. REVERBERATION
AND
VOLUME SOFT
TABS.
-
Several
degrees
of reverberation
are obtained
by
the
use
of
either or
both
tabs
labeled
REVERB
I
and
REVERB 11.
These tabs,
in
addition to
turning
this
feature
on,
govern
the loudness
or amount
of rever-
beration by
a
resistive
network used in con-
juntion
with the
speaker. The
VOLUME
SOFT tab
controls
the
overall volume
of the
organ and is
especially
useful where
playing
1-14.
PERCUSSION
CONTROL TABS
-
There are
four of these
tabs
which
operate
only
when
the
upper manual
DRAWBARS tab
is
de-
pressed.
Pressing
either the
SECOND
HARMONIC
or
THIRD
HARMONIC tab
will,
when the
upper
manUal is
played,
cause
the tone to
sound
percussively (in
addition
to sustained
organ
tones).
Both
tabs
can
be
depressed,
giving
a
combination
percussive
tone.
The
FAST
DECAY
tab
causes the
percussive tones to
fade away
with
greater
rapidity.
PERCUSSION
SOFT
reduces the
volume
for
the
percussive signal.
Operation
of the
electrical
circuits associated
with
this feature
is
described
in
subsequent
paragraphs.
1-8
