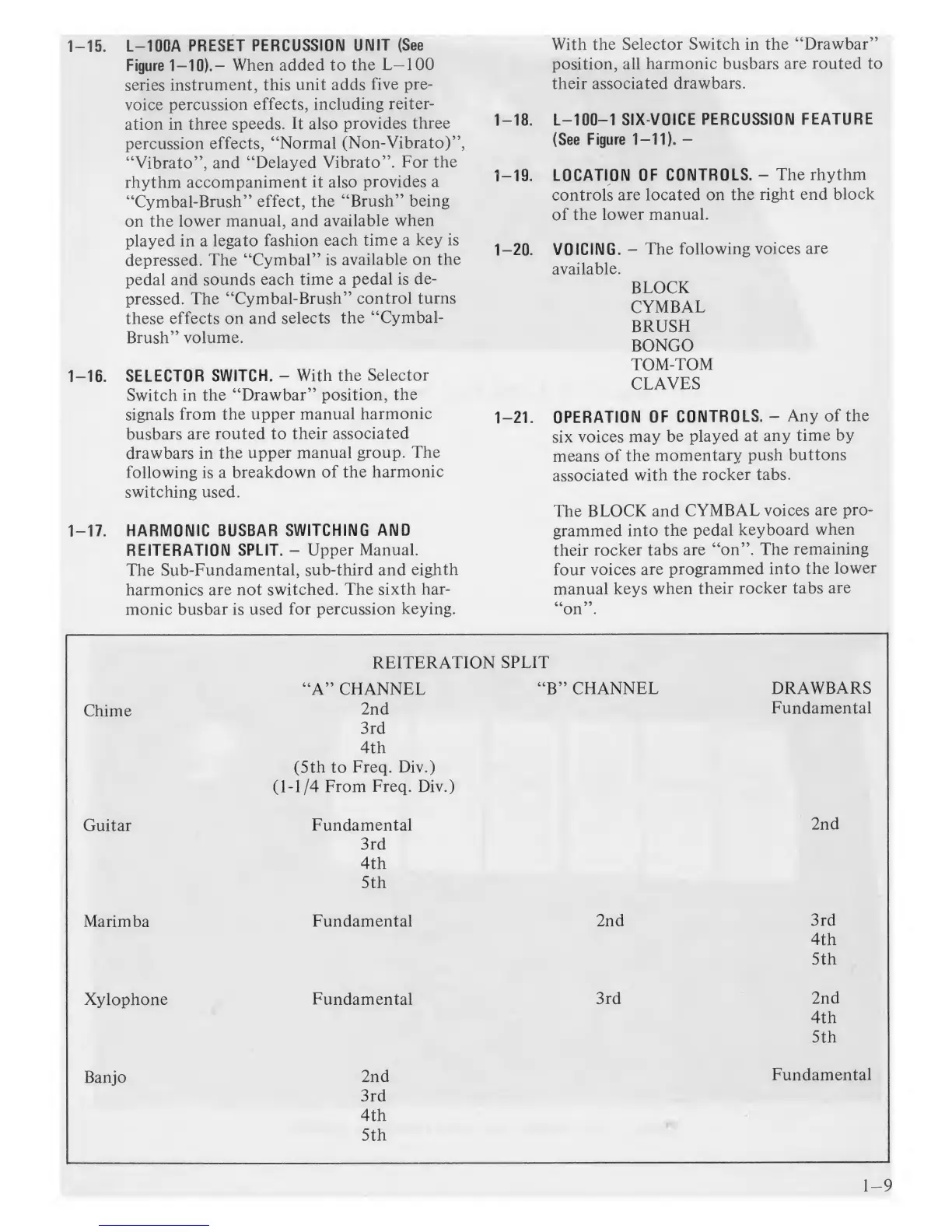

Hammond L series User Manual

1-15.
L-100A
PRESET
PERCUSSION
UNIT
(See
Figure
1-10).-
When added
to
the L-lOO
series
instrument,
this unit
adds
five
pre-
voice
percussion
effects,
including
reiter-
ation in
three speeds.
It
also
provides
three
percussion
effects, "Normal
(Non-
Vibrato)",
"Vibrato",
and
"Delayed
Vibrato".
For
the
rhythm
accompaniment
it
also
provides
a
"Cymbal-Brush"
effect,
the
"Brush"
being
on the
lower
manual, and
available
when
played
in
a
legato
fashion
each time
a
key
is
depressed.
The
"Cymbal"
is
available
on
the
pedal and
sounds
each time a
pedal
is
de-
pressed.
The
"Cymbal-Brush"
control
turns
these effects on
and selects
the
"Cymbal-
Brush" volume.
1-16. SELECTOR
SWITCH.
-
With
the
Selector
Switch in
the
"Drawbar"
position,
the
signals
from
the
upper manual
harmonic
busbars
are routed
to
their
associated
drawbars
in the
upper manual group.
The
following is a
breakdown
of
the
harmonic
switching used.
1-17. HARMONIC BUSBAR
SWITCHING
AND
REITERATION
SPLIT.
-
Upper
Manual.
The
Sub-Fundamental, sub-third
and
eighth
harmonics
are not switched.
The sixth
har-
monic
busbar is
used
for percussion
keying.
With the
Selector Switch
in
the
"Drawbar"
position,
all
harmonic
busbars
are routed
to
.
their associated
drawbars.
1-18.
L-100-1
SIX-VOICE
PERCUSSION
FEATURE
(See
Figure
1-11).
-
1-19.
LOCATION OF
CONTROLS.
-
The
rhythm
controls
are located on the
right
end
block
of
the
lower manual.
1-20. VOICING.
-
The
following
voices
are
available.
BLOCK
CYMBAL
BRUSH
BONGO
TOM-TOM
CLAVES
1-21.
OPERATION
OF
CONTROLS.
-
Any
of the
six
voices
may be
played
at
any
time
by
means
of the
momentary
push buttons
associated
with
the
rocker tabs.
The
BLOCK
and
CYMBAL voices
are
pro-
grammed
into
the
pedal
keyboard
when
their
rocker tabs
are
"on".
The
remaining
four
voices
are
programmed
into
the
lower
manual
keys
when their
rocker tabs
are
on .
Chime
REITERATION
SPLIT
"A"
CHANNEL
"B"
CHANNEL
2nd
3rd
4th
(5th
to
Freq. Div.)
(1-1/4
From
Freq.
Div.)
DRAWBARS
Fundamental
Guitar
Fundamental
3rd
4th
5th
2nd
Marimba
Fundamental
2nd
3rd
4th
5th
,
Xylophone
Fundamental
3rd
2nd
4th
5th
Banjo
2nd
3rd
4th
5th
Fundamental
1-9
