HAMPTON BAY 100 - Assembly; Assembling the Stand; Assembling the Side Panel

7 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
1

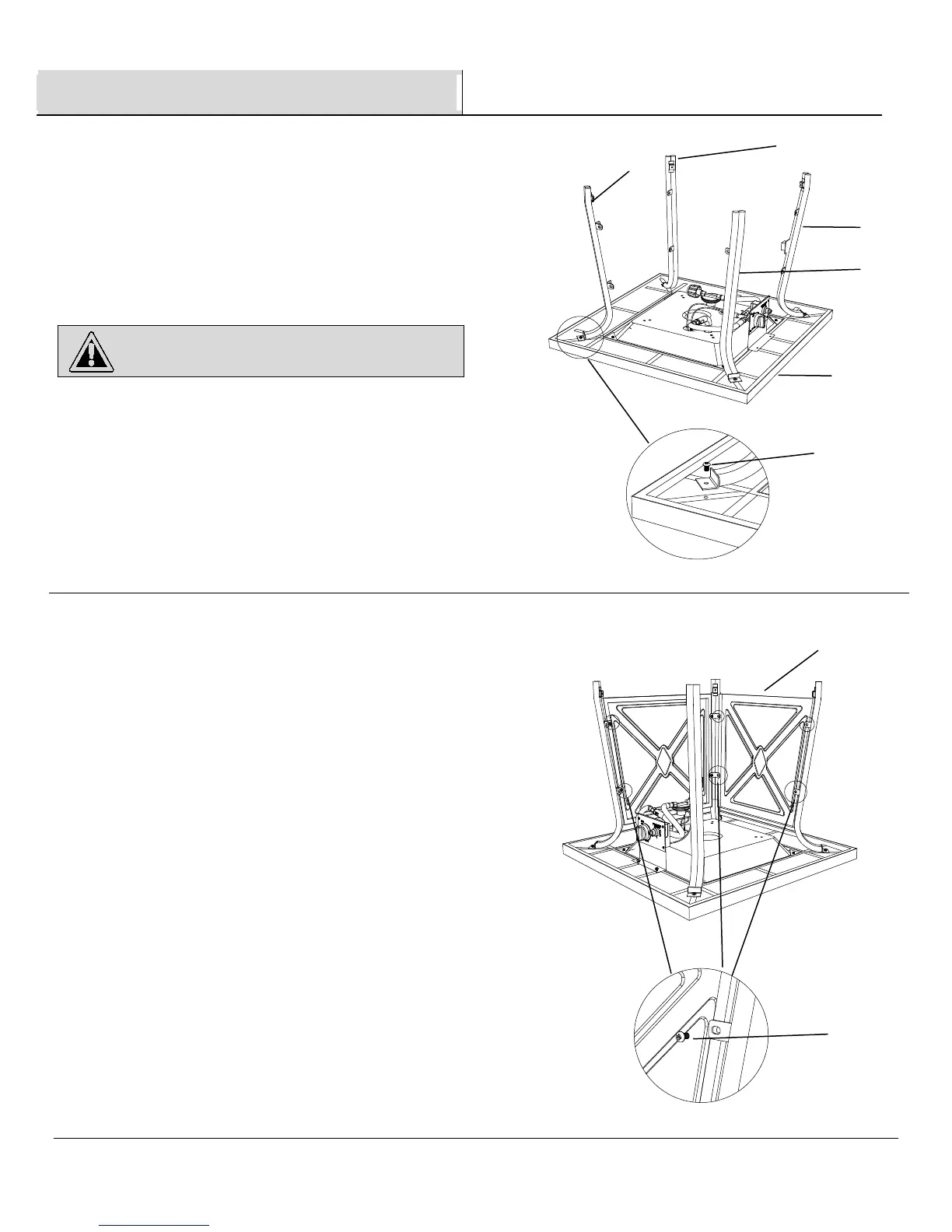

Assembling the stand
□ Attach the left stand (G), the right stand (I) and the stand
(E) to the table top with burner (C) using four (4) M6 x10
mm bolts (AA).
□ Do not tighten the bolts at this step.
CAUTION:
Wear gloves during assembly.
2
Assembling the side panel
□ Attach the side panel (D) to the stands using four (4) M6
x 10 mm bolts (AA).
□ Do not tighten the bolts at this step.
Assembly
I
AA
C
E
G
AA
D
E
