Assembly – Attaching the Fan Blades
8
Attaching the fan blades
Ƒ
Ƒ

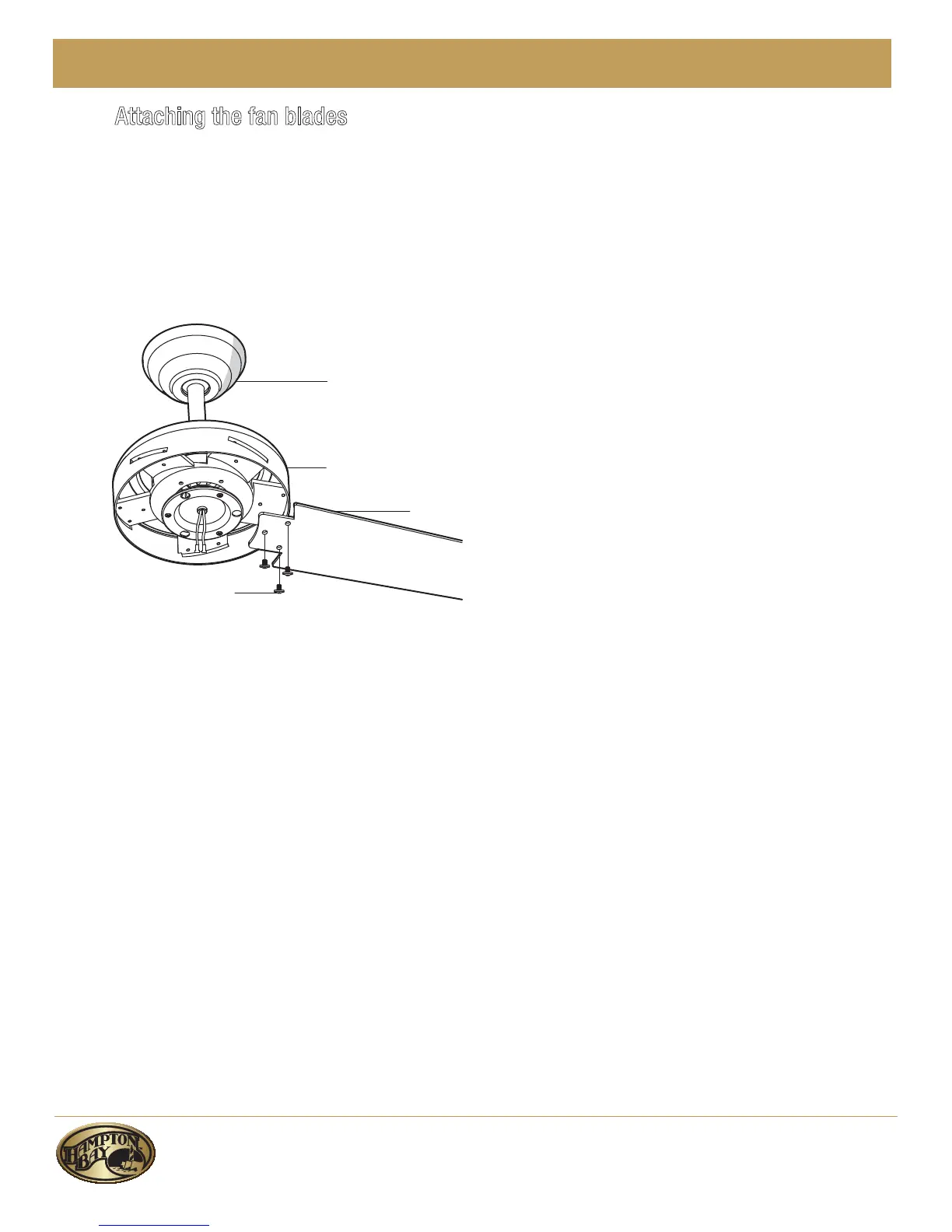

Attach the blade (G) to the fan motor housing (D) by rst
inserting the blade (G) into the slot in the side of the fan
motor housing (D).
Start a screw (AA) into the bracket. Repeat for the two
remaining screws.
Ƒ Tighten each screw (AA) securely.
Ƒ Repeat these steps for the remaining blades (G).
G
AA
C
D
