Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting xtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualied
electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
Ƒ Disconnect the power by removing the fuses or turning
off the circuit breakers.
Ƒ Secure the outlet box directly to the building structure.
Use the appropriate fasteners and materials. The outlet
box and its bracing must be able to fully support the
weight of the moving fan (at least 35 lbs.). Do not use a
plastic outlet box.

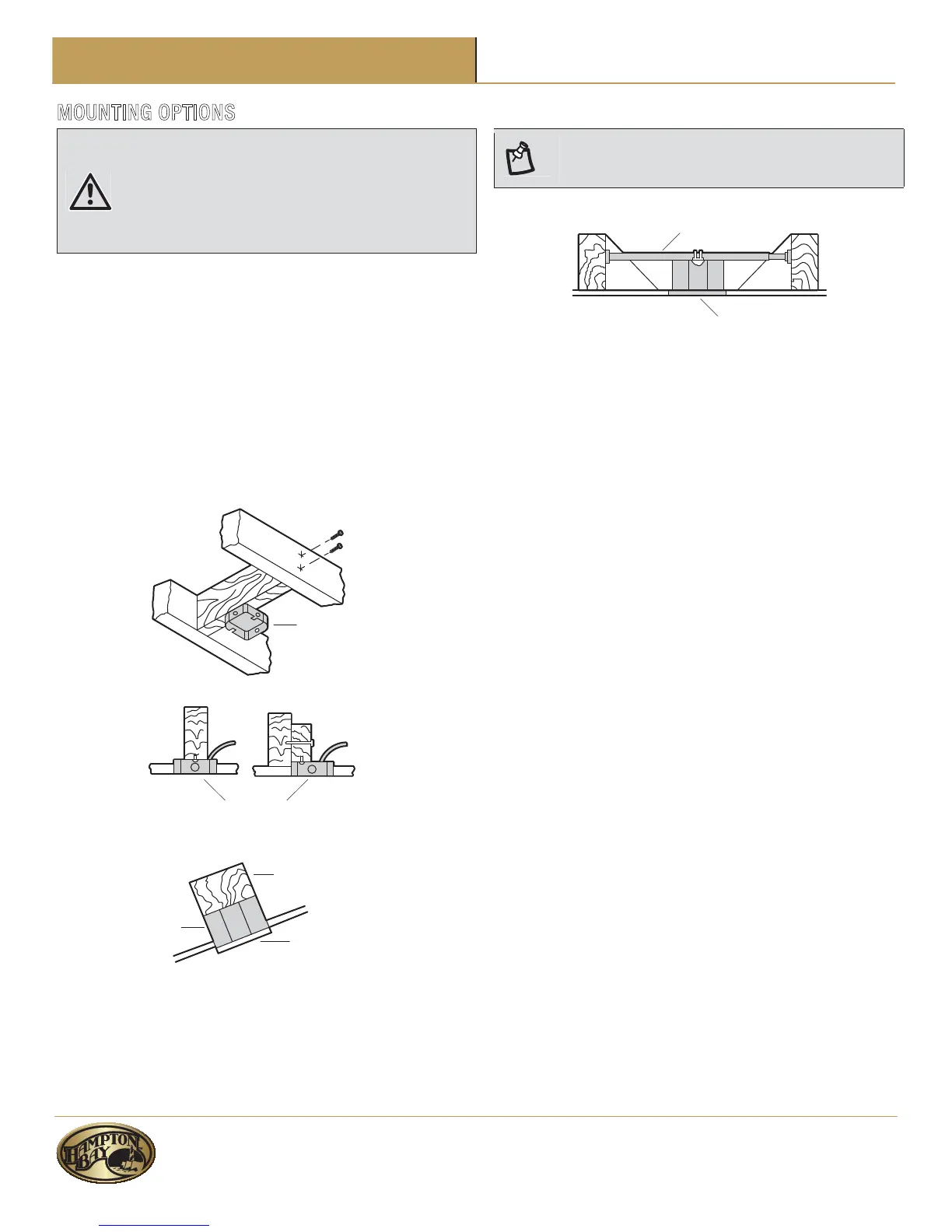

The illustrations below show three different ways to mount the
outlet box.
If the canopy touches the downrod, then remove the decorative
canopy bottom cover, and turn the canopy 180° before attaching
the canopy to the mounting plate.
To hang your fan where there is an existing xture but no ceiling
joist, you may need an installation hanger bar as shown above
(available at any Home Depot store).
Outlet Box
Outlet Box
Provided Strong
Support
Ceiling Mounting
Plate
Recessed
Outlet Box
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 30° away from horizontal.
Outlet Box
Hanger Bar
