Tools Required
Phillips screwdriver, straight slot screwdriver,
adjustable wrench, step ladder, and wire
cutters.
Installing Outlet Box
If
there isn't an
exrsung
UL Listed metal
mounting box, then read the following
instructions. Disconnect the power by
removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 Ibs.). Do
not use plastic outlet boxes.

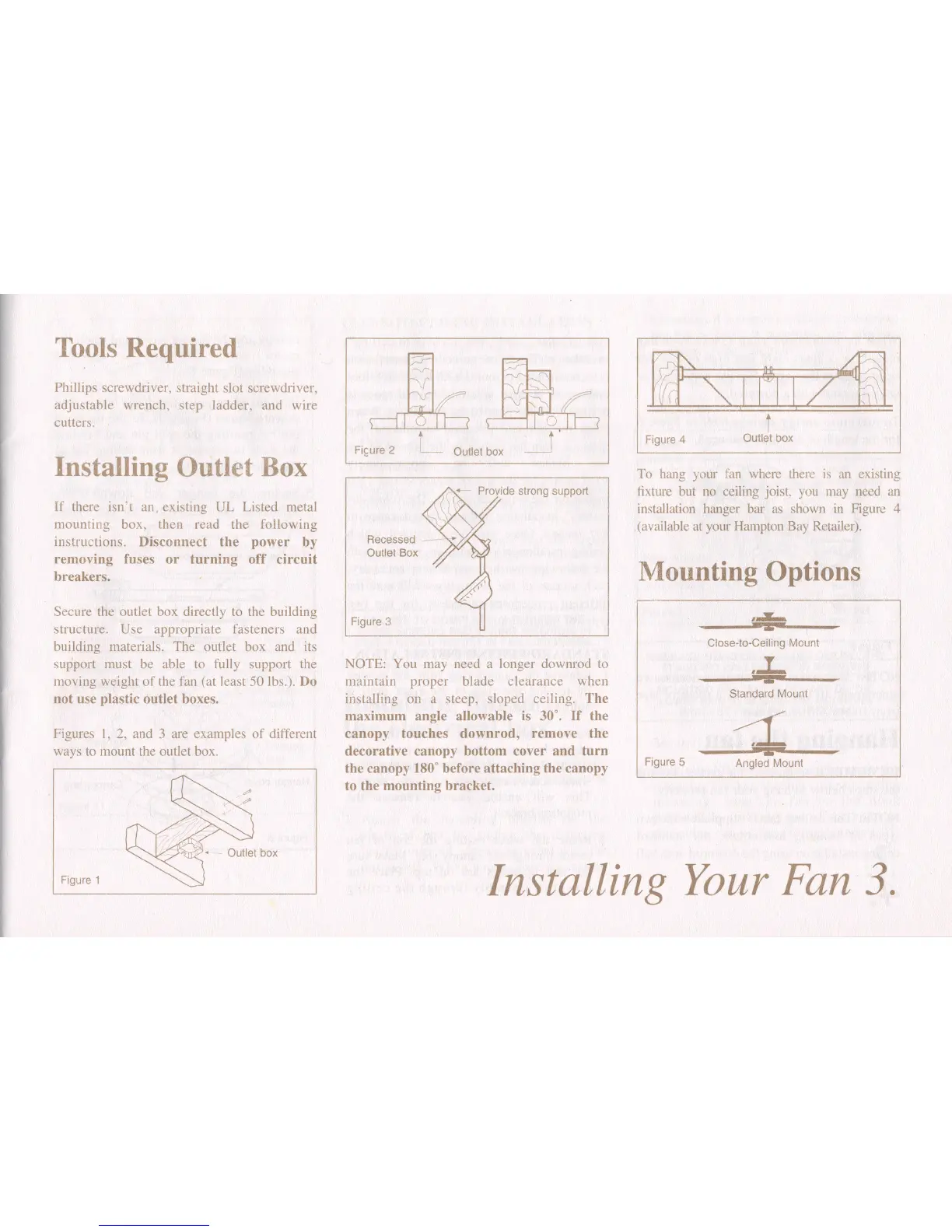

Figures I, 2, and 3 are examples of different
ways to mount the outlet box.
Figure 1
Jk~
Fi£ ure 2
l
Outlet box -
j
Recessed
Outlet Box
Figure 3
NOTE: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. The
maximum angle allowable is
30'.
If the
canopy touches downrod, remove the
decorative canopy bottom cover and turn
the canopy 180' before attaching the canopy
to the mounting bracket.
Figure 4
Outlet box
To hang your fan where there is an
existmg
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4
(available at your Hampton Bay Retailer).
Mounting Options
,~
-
Close-to-Ceiling Mount
,L
-
Standard Mount
Figure 5
Angled Mount
Installing Your Fan 3.
