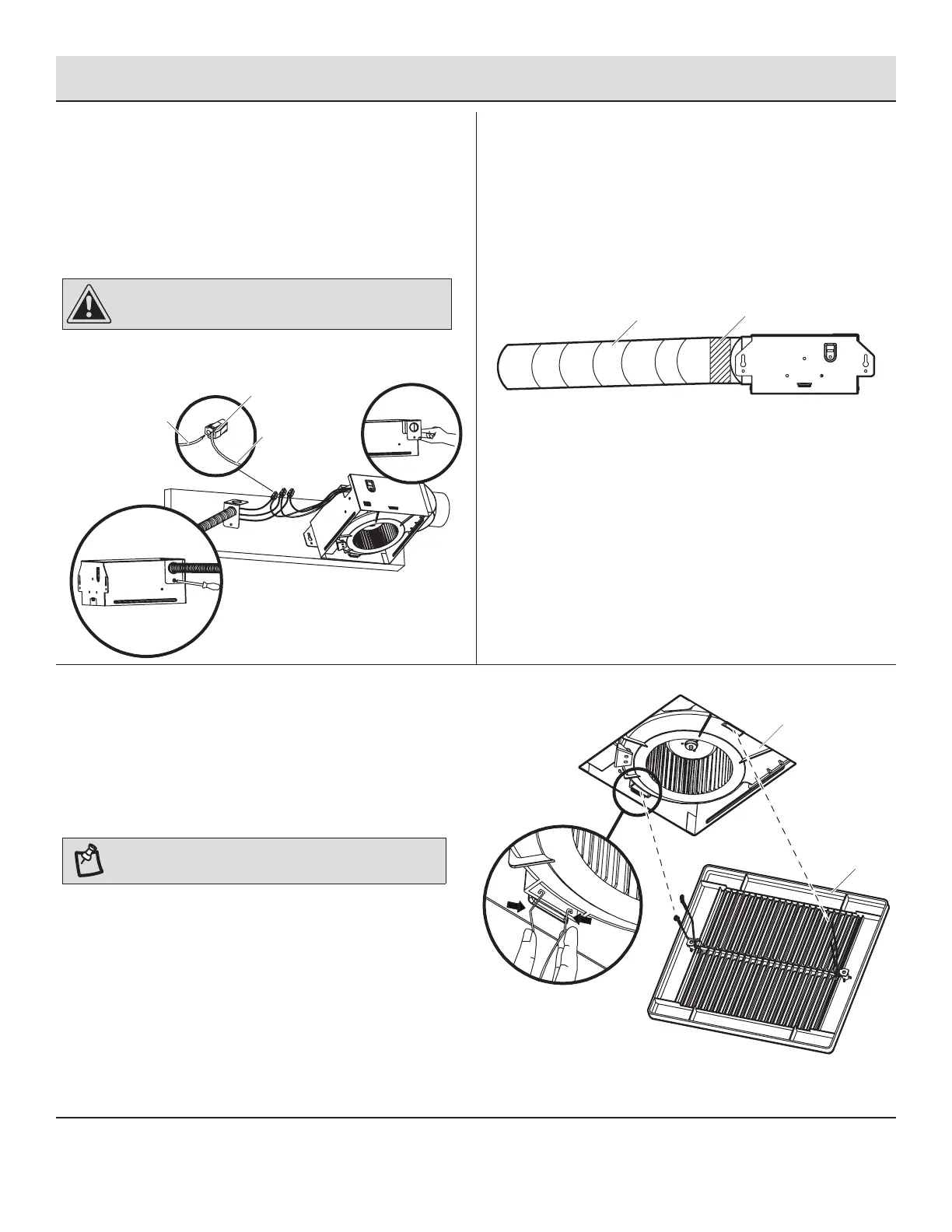

Installation - New Construction (continued)
5
Connecting the house and fan wires
□ Pull the wire through the hole and into the junction box (not
included). Using a quick connector, secure 120 VAC house
wiring from the wall switch to the fan as shown in the
wiring diagram. 14AWG is the smallest conductor that shall
be used for branch-circuit wiring.
CAUTION: Make sure power is switched off at service
panel before starting installation.
□ Push the wires back through the hole. Reattach the wiring
box cover.
connector
Product
wires
House
wires
6
Installing the duct
□ Install a circular 3 in. duct (not included) and secure it with
duct tape or clamps (neither included).
□ Finish ceiling work. The ceiling hole should be aligned with
the edge of the fan housing.
1
2
7
Installing the grille
□ Pinch the mounting springs on the grille (B) and insert
them into the narrow rectangular slots inside the fan (A).
Push the grille (B) up toward the ceiling.
□ Turn on electricity at the breaker box after nishing
installation.
NOTE: Make sure the mounting spring is properly loaded
into the fan slots.
B
A
