Assembling the right side panel

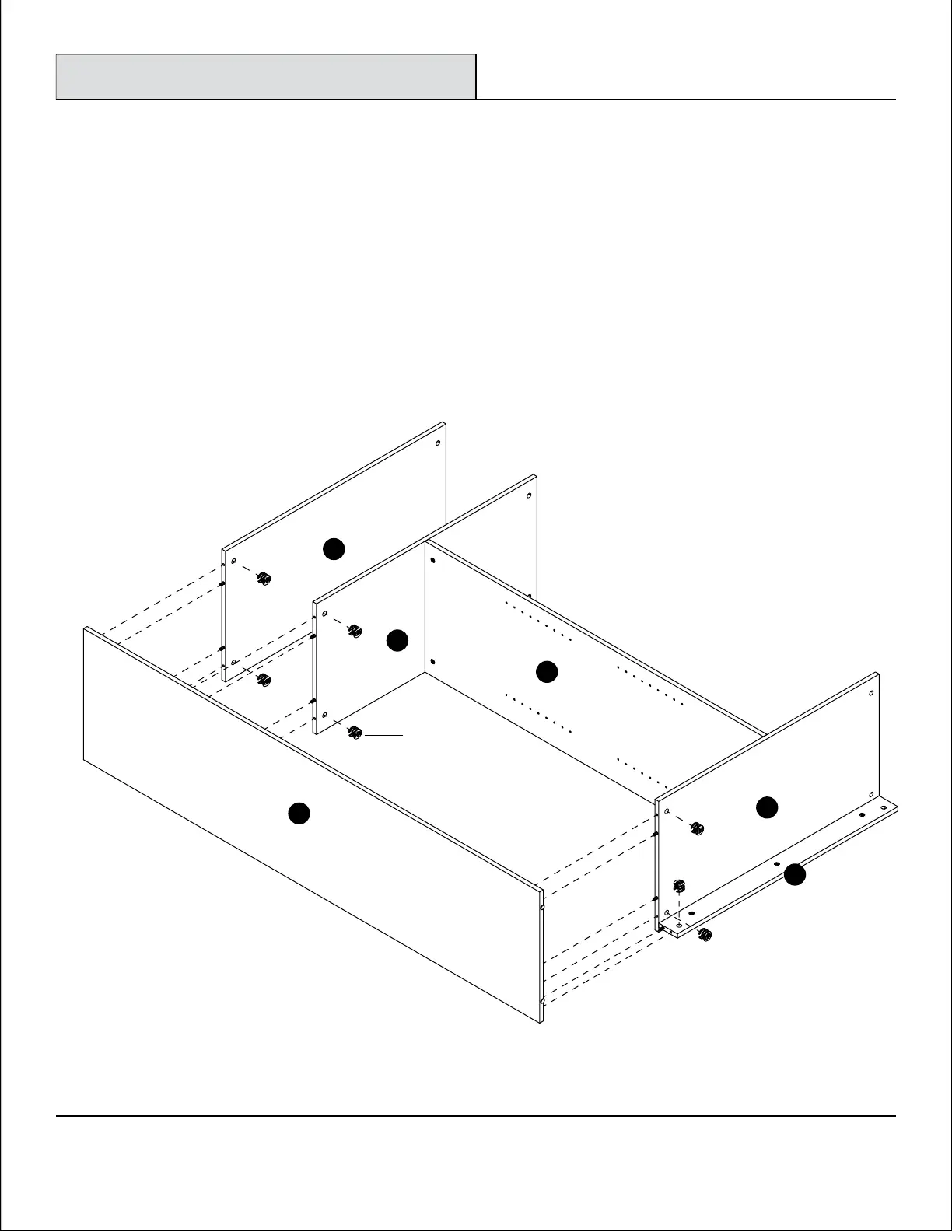

□ Connection top (A) , fixed shelf (F) , bottom (B) , bottom front rail (E) , and
right side panel (D) , ensure that the wood dowels (c) and cam bolts (b) are fully
inserted into the appropriate holes.
□ Insert seven cam locks (a) into the holes to the top (A) ,
fixed shelf (F) , bottom (B) , bottom front rail (E) , then turn
all of the cam lock (a) clockwise until they lock into
place over the cam bolts (b).
D
A
F
E
B
J
a
c
