Assembly (continued)
5

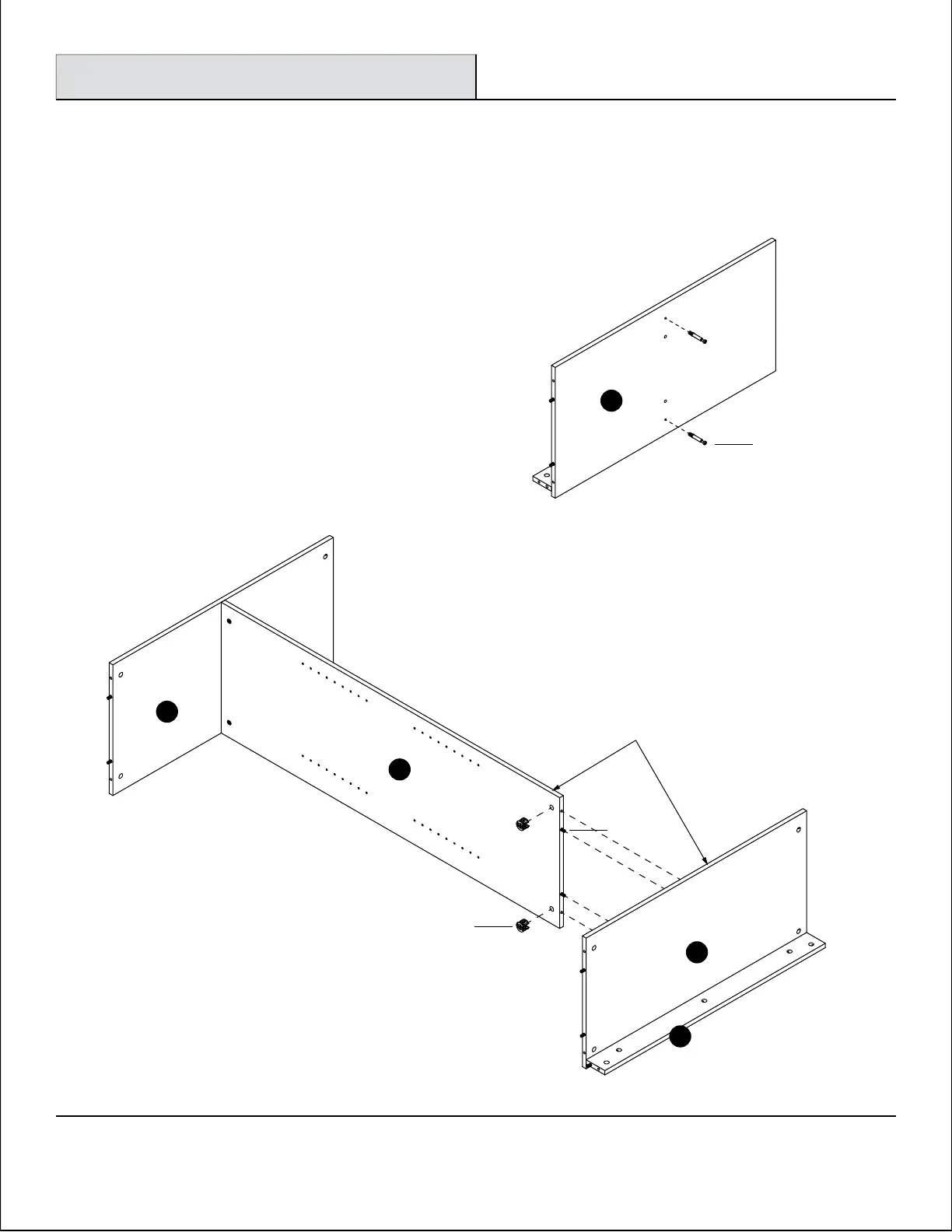

Assembling the partiton and bottom
□ Turn two cam bolts (b) into the holes in the bottom (B) , be careful of the
cam locks holes on the other side.
□ Connection partition (E) and bottom (B) , ensure that the wood dowels (c)
and cam bolts (b) are fully inserted into the appropriate holes.
□ Insert two cam locks (a) into the holes to the partition (E) ,
then turn all of the cam lock (a) clockwise until they
lock into place over the cam bolts (b).
E
F
B
B
J
Unfinished edge
b
a
c
To Next Page
