10
Hampton H300 Cast Freestanding Woodstove

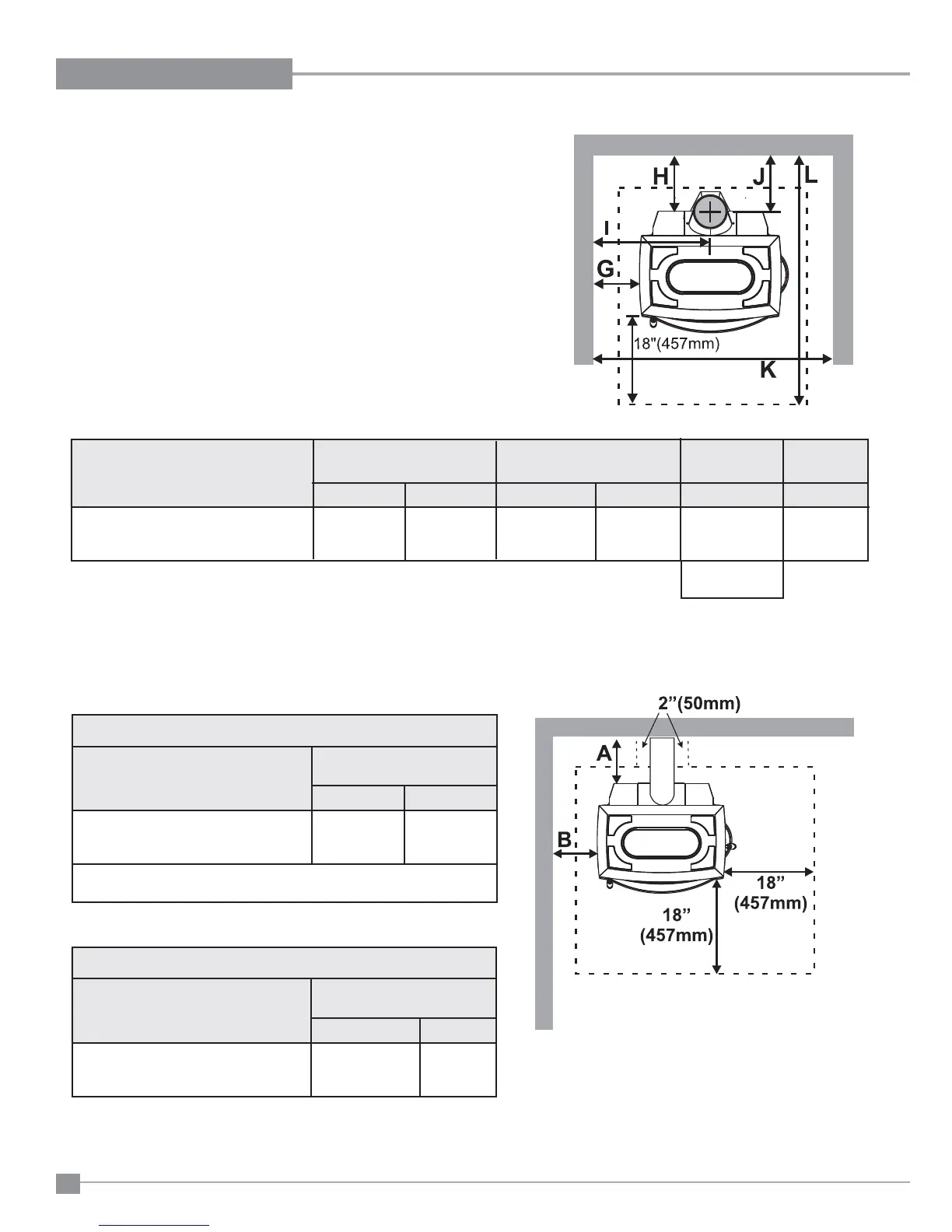

INSTALLATION
MINIMUM ALCOVE CLEARANCE TO
COMBUSTIBLE MATERIALS
This Hampton Freestanding model has been alcove approved and must be installed
with a listed double wall connector to the ceiling level.
Note: Minimum alcove ceiling height (from fi nished fl oor) - 60" (1525 mm)
Maximum depth of alcove - 48" (1220 mm)
From From Flue Min. Min.Hearth
Unit (with Heat Shield) Unit Center-line Width to Rear Wall
G H I J K L
H300 15" (381 mm) 13" (330 mm) 28" (711 mm) 13" (330 mm) 57" (1448 mm) 51-1/4"
without side load door (1301 mm)
ADDITIONAL CLEARANCES
FOR BACKWALL EXIT
Note: Floor Protection must extend 2" (50mm)
to each side of the elbow.
Note: If side load door is used, fl oor protection
must extend at least 18" (457mm) from
the side of the unit.
Minimum Clearance to Non-Combustibles
From
Unit (with Heat Shield) Unit
A B
H300 min. 0" (0 mm) 15" (381mm)
max. 9" (228 mm)
60" (1524 mm)
with side load door
Minimum Clearance to Combustibles
From
Unit (with Heat Shield) Unit
A B
H300 9" (228 mm) 15" (381 mm)
Min. Mantel Height (from fi nished fl oor): 48" 1219 mm
Max. Mantel Depth: 12" 305 mm
