Hampton H300 Cast Freestanding Woodstove
INSTALLATION
SIDE SHELF
INSTALLATION
Bracket
Support
Gussets

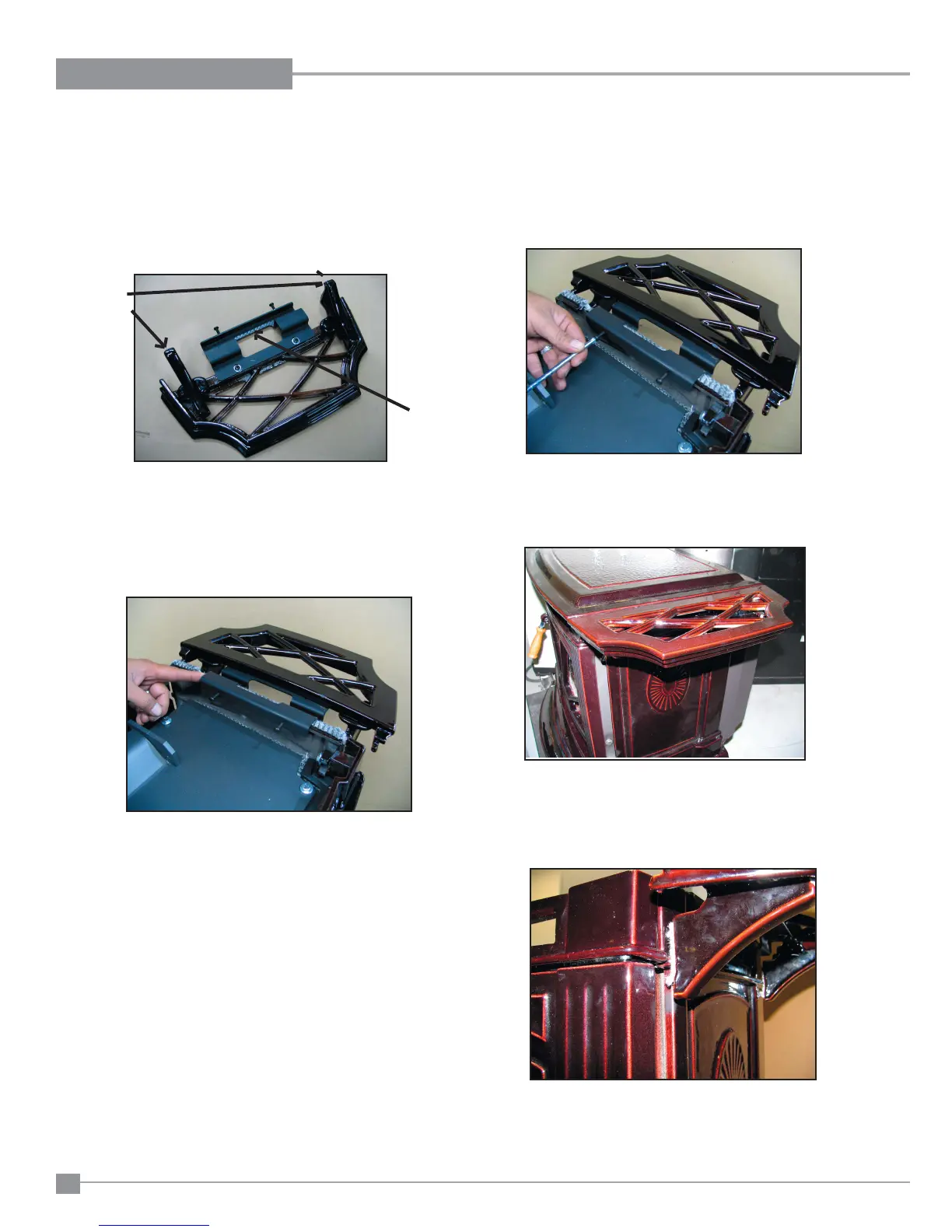

1) Secure the two support gussets using 2 screws per gusset and attach
bracket to the underside of the shelf using 2 screws as shown.
2) Remove stove top and place side shelf onto the side of the stove as
shown, aligning the bracket with notch at the side of the stove.
3) Secure to side shelf to stove. Repeat installation for other side.
4) Carefully re-install stove top on stove ensuring not to chip enamel.
5) Use the two screws holding the bracket to the underside of the shelf
to make fi nal alignment and adjustments.
