Hampton H300 Cast Freestanding Woodstove
MAINTENANCE

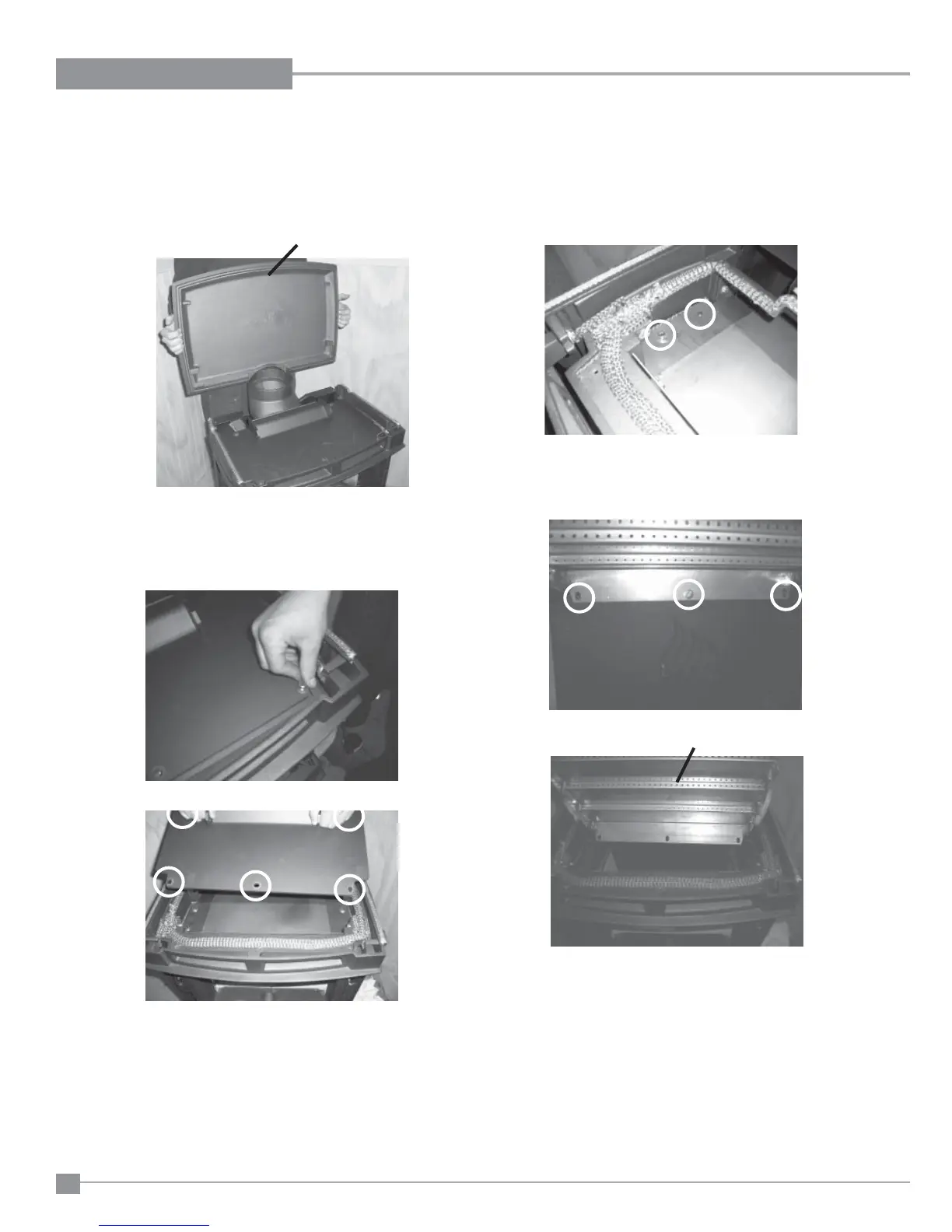

TOP BAFFLE REPLACEMENT
1) Lift the Top Hob off the top of the stove.
2) Remove the fi ve (7/16) socket 1/4 x 1" hex bolts from the Firebox
Top Assembly and lift off.
Top Hob
3) Remove the left and right baffl e caps by removing the 2 bolts (7/16)
socket 1/4-20 x 1/2" hex head on each side and lift out.
4) Remove the three (7/16) socket 1/4-20 x 1/2" stainless steel hex bolts
inside the fi rebox holding the top baffl e assembly and remove.
5) Replace the Top Baffl e
6) Reverse steps 4 to 1.
Top Baffl e Removed
