Hampton H300 Cast Freestanding Woodstove
19
INSTALLATION

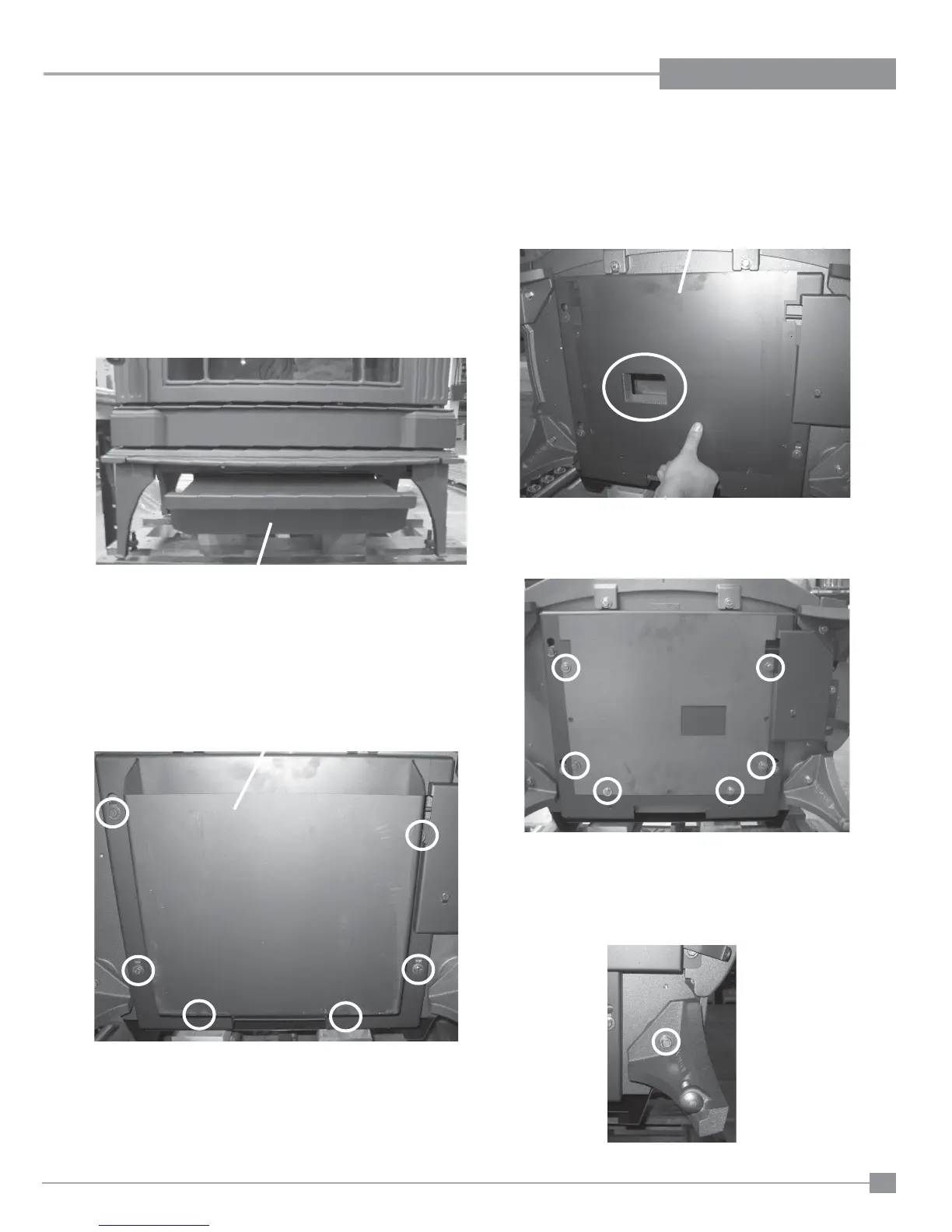

OPTIONAL SHORT LEG INSTALLATION
1) Remove the cast lid from the top of the stove.
2) Remove fan, if installed.
3) Open the front door and remove the cast plug and all loose bricks
from the fi rebox.
4) Close the front door.
5) Remove the Ash Pan by sliding out and discard.
Ash Pan
6) Carefully lay the stove on it's back on a soft surface to prevent
scratching.
7) Remove the Ash Drawer by undoing the 6 bolts and washers. Discard
Ash Drawer.
8) Flip the cover plate so that the ash plug hole is covered. Secure the
cover plate in place using the 6 bolts and washers removed in step 7.
Cover Plate shown in it's original position when
Ash Drawer is removed.
Cover Plate
Cover Plate shown fl ipped and secured in place
covering the Ash Plug Hole.
9) Remove the 4 standard legs by undoing the bolt and washer on
each leg.
Ash Drawer
To Next Page
