9

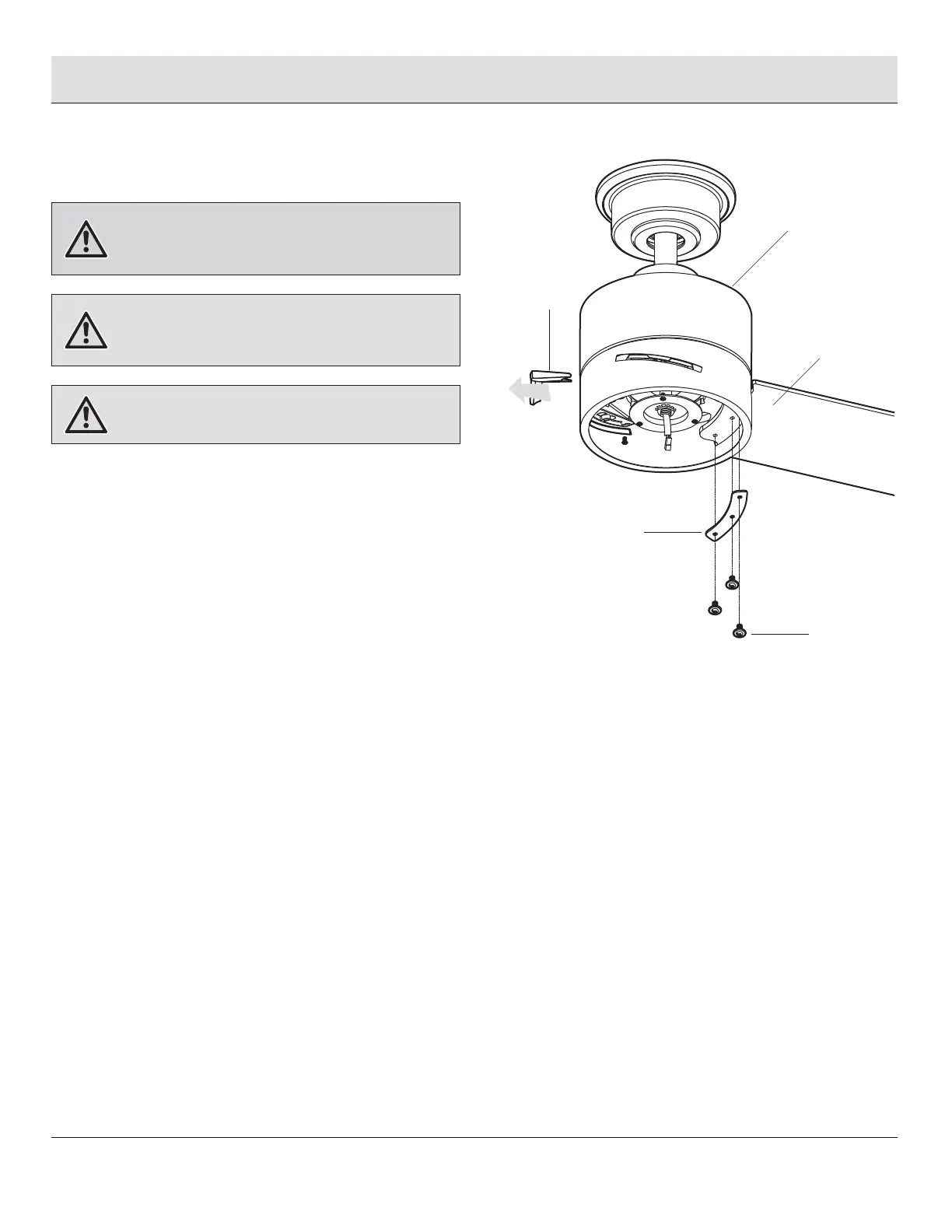

Assembly — Attaching the Fan Blades
15
WARNING: To reduce the risk of personal injury, do not
bend the blades (H) while installing, balancing the blades (H),
or cleaning the fan.
Attaching the fan blades
Insert the blade (H) through the slot in the housing.
Align the holes in the blade (H), the blade support
plate (I), and the fan motor assembly (G) and secure
with a blade attachment screw with lock washer
(BB).
Repeat this procedure with the remaining blades (H).
BB
I
H
G
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
WARNING: Remove the three rubber packing mounts (JJ)
from the fan motor assembly (G) and discard prior to
attaching the blades (H).
WARNING: Do not insert foreign objects between rotating
fan blades (H).
JJ
