Cabinet Assembly (Continued)
9

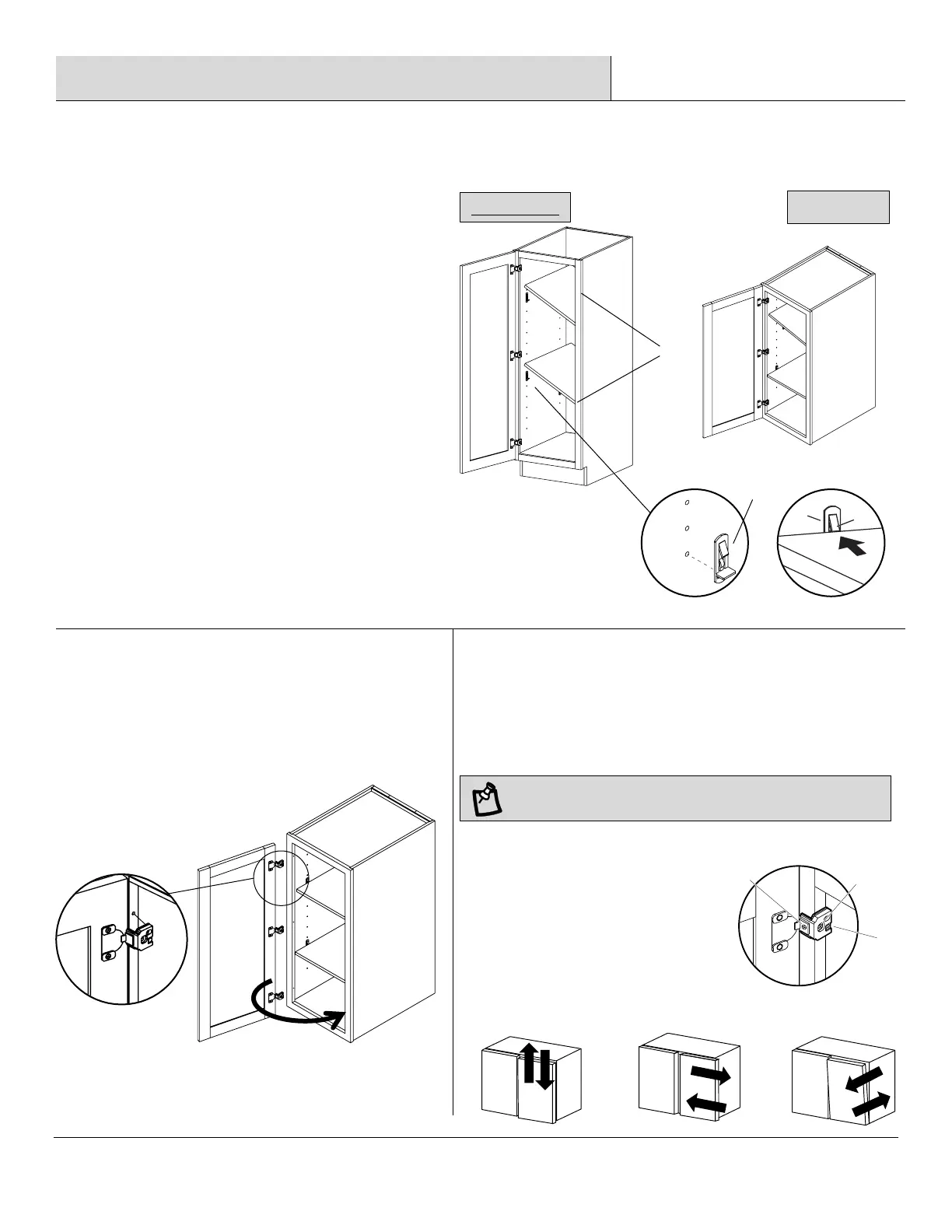

Installing the shelves
 Insert the shelf pins with pre-drilled holes on each
side panel.
 Tilt the shelf (D) to fit inside the face frame and snap
over the shelf pins (AA).
 To remove the shelf, push the tabs (1) on the shelf
pins and lift the shelf.
00000
10
(OPTIONAL) Reversing the door
position.
11
(OPTIONAL) Adjusting the door.
 You can remove and reposition the door to the other side of
the face frame at any time using the pre-drilled holes. For
pre-drilled holes that are not used, you can cover them up
using a wax pencil or touch-up paint pen.
 Door hinges are 6-way adjustable.
 Up or down adjustment – Loosen screw 1, align the door, and
tighten screw 1.
NOTE: It is critical that you do NOT overtighten screw 1.
 L/R adjustmentTurn screw 2 clockwise or counterclockwise.
 In or out adjustment – Turn screw 3 clockwise or counterclockwise.
