HAMPTON BAY Principle User Manual

4.
each section of the instructions will note the
different procedures to follow for the two types
of installation.
Standard Ceiling Mounting
1. Remove the canopy ring from the canopy
by turning the ring to the right until it un-
locks (Figure 5).
Hanging the Fan
REMEMBER to turn off the pow-
er. Follow the steps below to hang your
fan properly.
NOTE: This ceiling fan is supplied with two
types of hanging assemblies; the standard
ceiling installation using the downrod with
ball and socket mounting, and the “close-to-
ceiling” mounting. The “close-to-ceiling”
mounting is recommended in rooms with
less than 8-foot ceilings or in areas where
additional space is desired from the oor
to the fan blades. When using standard
downrod installation, the distance from the
ceiling to the bottom of the fan blades will be
approximately 12 inches. The “close-to-ceil-
ing” installation reduces the distance from
the ceiling to the bottom of the fan blades to
approximately 8 inches.
Once you have decided which ceiling
installation you will use, proceed with the
following instructions. Where necessary,
Turn Canopy Ring to Remove

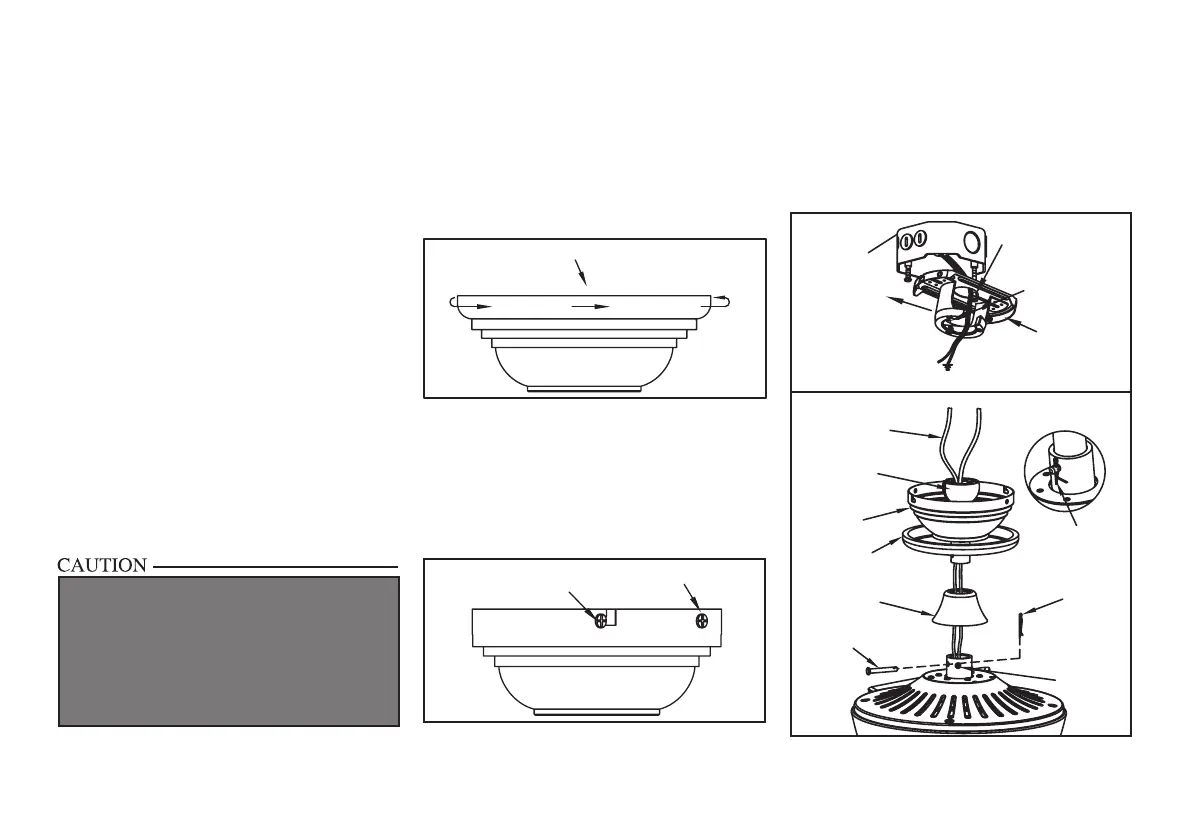

Figure 5
Figure 7
2. Remove the mounting plate from the canopy
by loosening the four screws on the top of
the canopy. Remove the two non-slotted
screws and loosen the slotted screws. This
will enable you to remove the mounting
plate (Figure 6).
3. Route the wires exiting the top of the fan
motor through the decorative motor collar
cover then the canopy ring. Make sure the
slot openings are on top. Route the wires
through the canopy and then through the
ball/downrod assembly (Figure 7).
Tighten
Screws
Pin in
Locked
Position
Locking
Pin
Hanger Pin
Motor Collar
Cover
Downrod/Ball
Assembly
Canopy Ring
Canopy
Motor Wires
Hook
Ceiling
Mounting
Plate
Mounting Screws
(Supplied With
Outlet Box)
UL Listed
Outlet Box
Slide Mounting
Plate Over
Screw Heads
120V Wires
WHEN MOUNTING THE FAN ON A SLOPED
CEILING, THE STANDARD BALL/DOWNROD
MOUNTING METHOD MUST BE USED. THE
MOUNTING PLATE MUST BE MOUNTED SO
THAT THE SLOT OPENINGS ARE ON THE
LOWER SIDE BY SLIDING THE MOUNTING
PLATE FROM THE TOP DOWN. FOR A GREATER
MOUNTING ANGLE, REMOVE THE DECORA-
TIVE CANOPY BOTTOM COVER (FIGURE 8).
Remove
Loosen But
Do Not Remove
Figure 6
