9
Installing the Light Kit
Your fan and light kit though pre-wired have been
disassembled at the factory to ease in shipping.
Please follow these steps to complete the installa-
tion of your fan and light. TO REDUCE THE
RISK OF FIRE DO NOT EXCEED MAXIMUM
WATTAGE RATING.
Remove the 1 of 3 screws from the mounting
ring and keep it for future use. Loosen the other
2 screws. (Do not remove)
Connect the white wire connectors from the
light kit and fan, follow the same procedure
with the black wire connectors. (Figure 15)
Tuck connections neatly into mounting ring,
place the key holes on the light plate over the 2
screws previously loosened from the mounting
ring, turn light plate until it locks in place at the
narrow section of the key holes. Secure by
tightening the 2 screws previously loosened
and the one previously removed. (Figure 15)
Install 3 x 40W candelabra light bulbs
(included). (Figure 16)
1.
2.
3.
4.
Remove the screw and washer from the light
plate, raise the glass shade up against the light
plate, place looped end of safety cable over the
screw and washer just removed and then secure
onto the light plate.
Place the 3 screws already installed inside the
glass shade over the key holes on light plate at
the wide section of the key holes. Turn glass
shade until the screws lock in place at the
narrow section of the key holes. (Figure 16)
Restore power and your light kit is ready for
operation.
5.
6.
7.
NOTE
LIGHT BULBS HAVE NO WARRANTY; CAN BE
PURCHASED AT ANY HOME DEPOT STORE.
CAUTION
BEFORE STARTING INSTALLATION, DISCON-
NECT THE POWER BY TURNING OFF THE
CIRCUIT BREAKER OR REMOVING THE FUSE
AT FUSE BOX. TURNING POWER OFF USING
THE FAN SWITCH IS NOT SUFFICIENT TO
PREVENT ELECTRIC SHOCK.

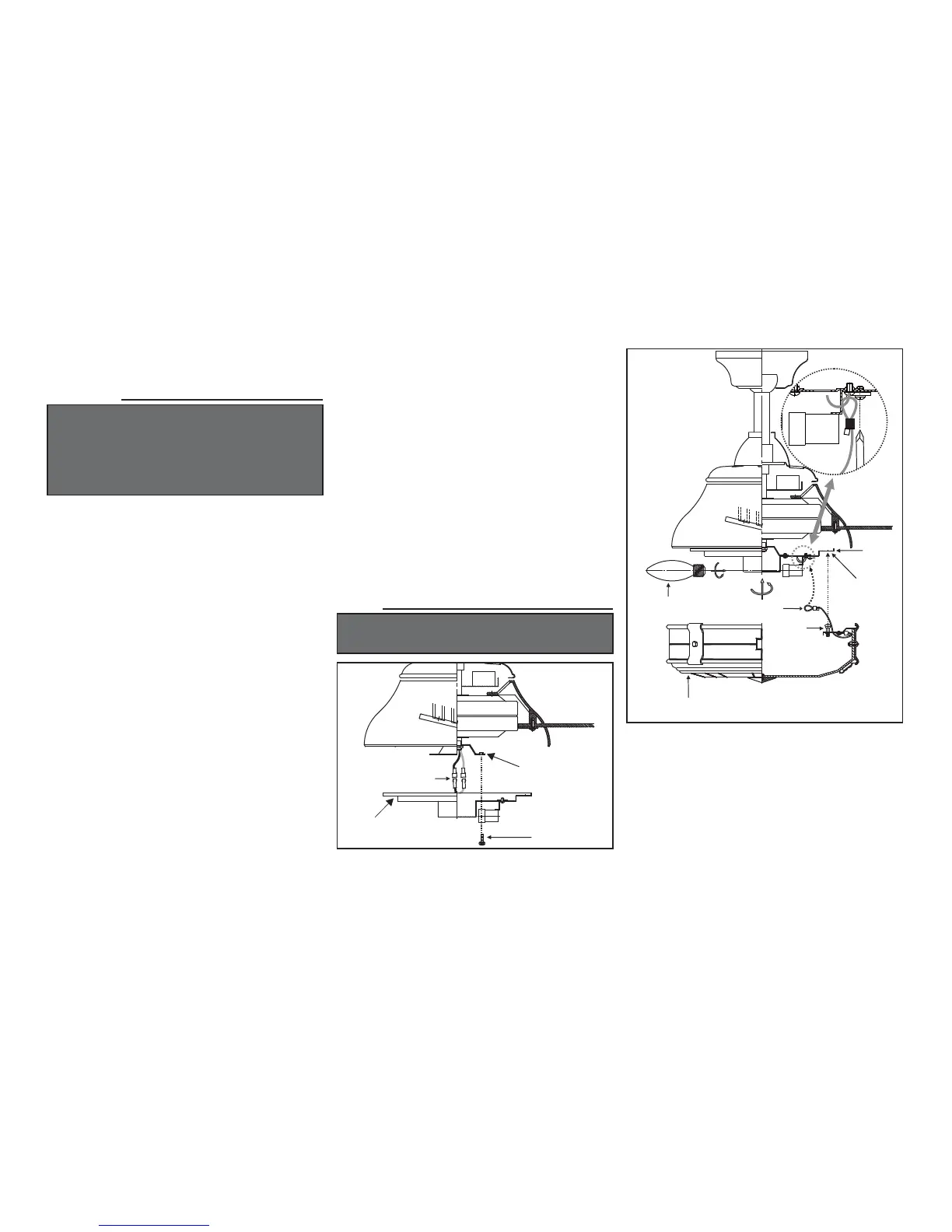

Figure 15
Connection Plugs
Mounting Ring
Light Plate
Screws
Figure 16
Glass Shade
Light
Plate
Screws
Key Hole
Safety Cable
Bulbs
To Next Page
