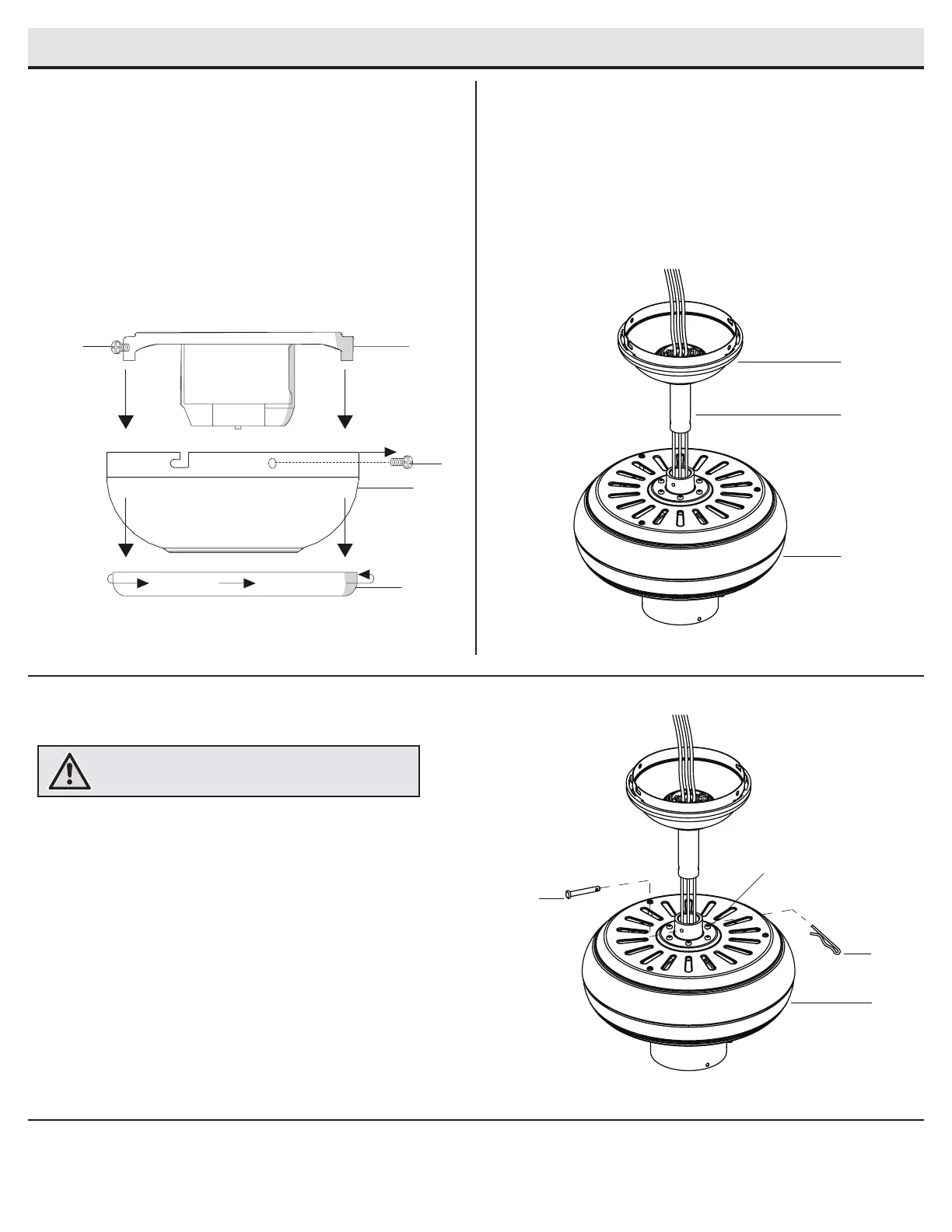

Assembly - Standard Ceiling Mount
Routing the wires
Assembling the fan
Preparation for mounting
□ Loosen, but do not remove, the setscrew on the collar (P) on
top of the motor housing.
□ Align the holes at the bottom of the downrod (B) with the
holes in the collar (P) on top of the motor housing.
□ Carefully insert the hanger pin (CC) through the holes in the
collar (P) and downrod (B). Be careful not to jam the hanger
pin (CC) against the wiring inside the downrod (B).
□ Insert the locking pin (DD) through the hole near the end of
the hanger pin (CC) until it snaps into its locked position.
□ Re-tighten the setscrews on the collar (P) on top of the
motor housing.
□ Remove the canopy ring (JJ) from the canopy (C) by turning the
ring counter clockwise until it unlocks.
□ Remove the mounting bracket (A) from the canopy (C) by
loosening the two canopy screws (HH) located in the “L shaped
slots”.
□ Remove and save the two canopy screws (II) in the round
holes. This will enable you to remove the mounting bracket (A).
□ Route the wires exiting the top of the fan motor (D) and
through the canopy ring (K).
□ Make sure the slot openings are on top and route the
wires through the canopy (C) and then through the ball/
downrod assembly (B).
2
3
1
K
B
D
P
WARNING: Failure to properly install the locking pin could
result in the fan becoming loose and possibly falling.
JJ
C
To Next Page
