AA
H
KK

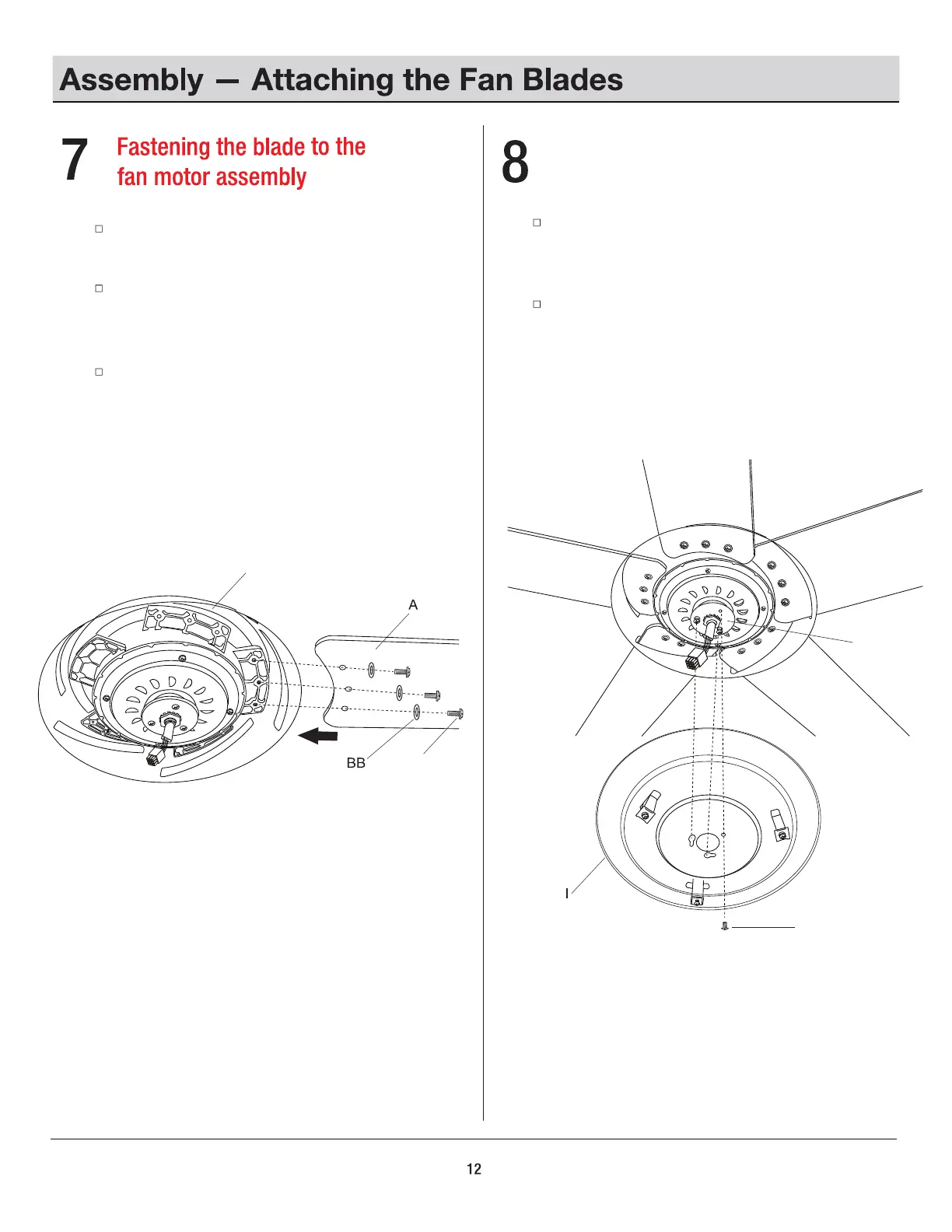

Insert the blade (A) through the slot on the fan
motor assembly (H).
Attach the fan blade (A) to the fan motor assembly
(H) using the three blade screws (AA) and the three
fiber washers (BB) and tighten them securely.
Repeat this step for the other four blades (A).
Installing the mounting plate to the
fan motor assembly
Remove one of the screws (KK) from the locking
plate of the fan motor assembly (H) and loosen the
other two screws (KK), but do not remove.
Place the key holes
from the
mounting plate (I) over the
two screws (KK) previously loosened from the fan
motor assembly (H). Turn the mounting plate (I) until
it locks at the narrow section of the key holes.
Secure by tightening the two screws (KK) previously
loosened and the one screw (KK) previously removed.
H
