Handicare PUMA YeS - Swing-Away Joystick Bracket

Parts lists
Version 2015v1 71

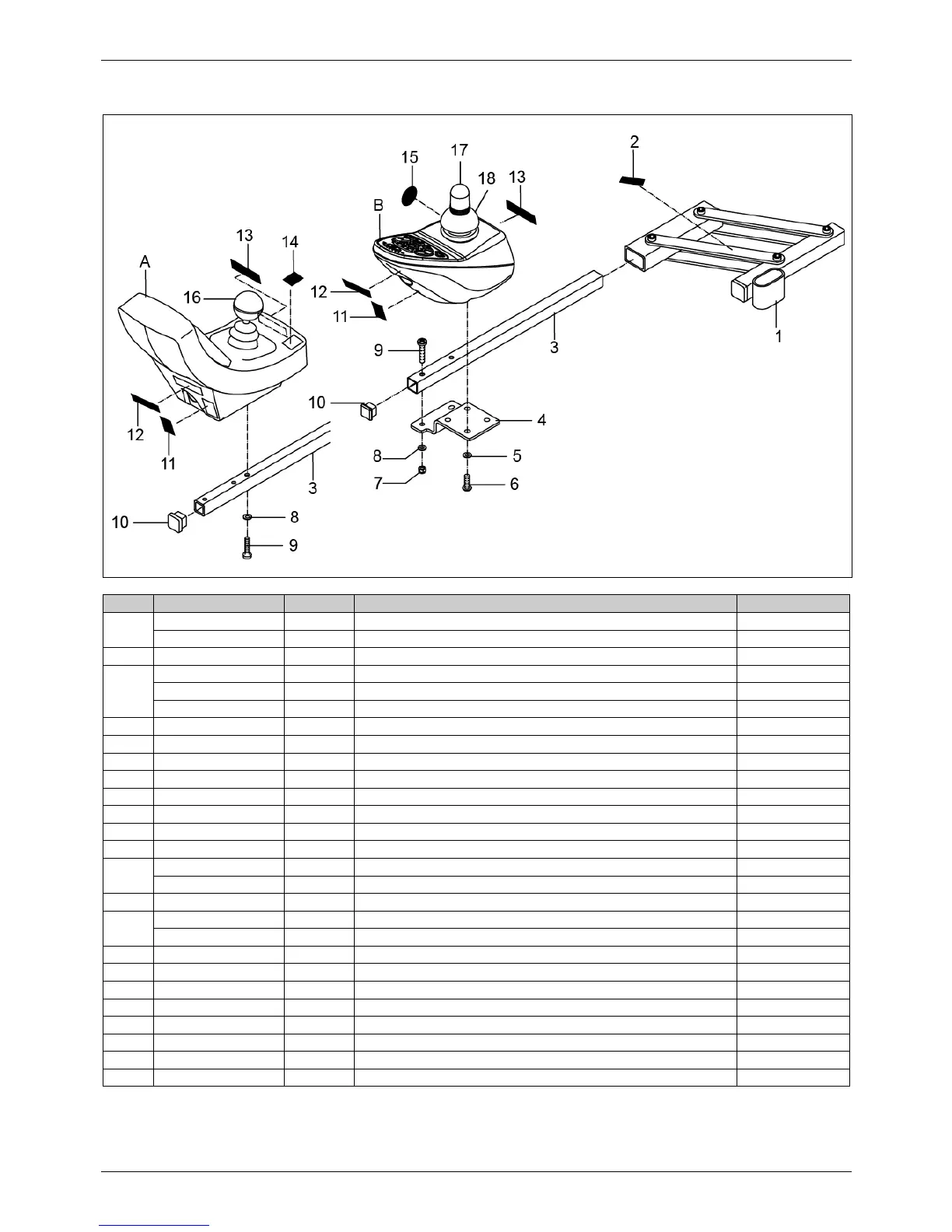

015 Swing-away joystick bracket
Pos
Article number
Units
Description
1
1009533 1 Swing-away bracket for remote right
1009536 1 Swing-away bracket for remote left
2 008.00000.191 1 Label
3
15040.0823 1 Tube for remote
1002331 1 Tube for remote G90 RHS
1002603 1 Tube for remote G90 LHS
4 9000265 1 Shark mounting plate
5 00000.2201 4 Spring washer M5 D127B/VZ
6 00000.3206 4 Screw bck/kr M5X16 D7985
7 00000.1705 2 Lock nut M4xP0.7
8 00000.2006 2 Washer flat M4
9 00000.3212 2 Screw M4X25
10 00000.9301 2 Insert cap 15mm
11 10089 1 Sticker
12
008.00000.161 1 Sticker programmed RWD
008.00000.151 1 Sticker programmed FWD
13 008.00000.201 1 Sticker for use consult
14
008.00000.131 1 Sticker 10 km/h
008.00000.511 1 Sticker 6 km/h
15 008.00000.511 1 Sticker 6 km/h
16 00355.0444 1 Joystick knob standard DX
17 1007917 1 Joystick knob standard Shark
18 1007918 1 Joystick cover Shark
- 05041.9123 1 Swing-away bracket + tube for remote right
- 165.00111.000 1 Swing-away bracket + tube for remote left
A - - See 028: Cabling and modules DX
B - - See 029: Cabling and modules Shark
