LEDs Indication
LED State Description
Off The Wireless Subscriber Gateway is not receiving electrical power. PWR
Green The Wireless Subscriber Gateway is receiving electrical power.
Off The Wireless Subscriber Gateway status is defective.
Green The Wireless Subscriber Gateway status is complete.
SYS
Green (Blinking) During firmware upgrades, this system LED will blink.
Off Port has not established any network connection.
Green A port has established a valid 10/100Mbps network connection.
WAN
Green (Blinking) 10/100Mbps traffic is traversing the port.
Off Port has not established any network connection.
Green A port has established a valid 10/100Mbps network connection.
LAN-1~
LAN-4
Green (Blinking) 10/100Mbps traffic is traversing the port.
Off The Wireless is not ready.
Green The Wireless Subscriber Gateway has established a valid wireless
connection.
WLAN
Green (Blinking) The Wireless connection is active.
1-4-2 Rear Panel
The rear panel of the Wireless Subscriber Gateway is shown below.

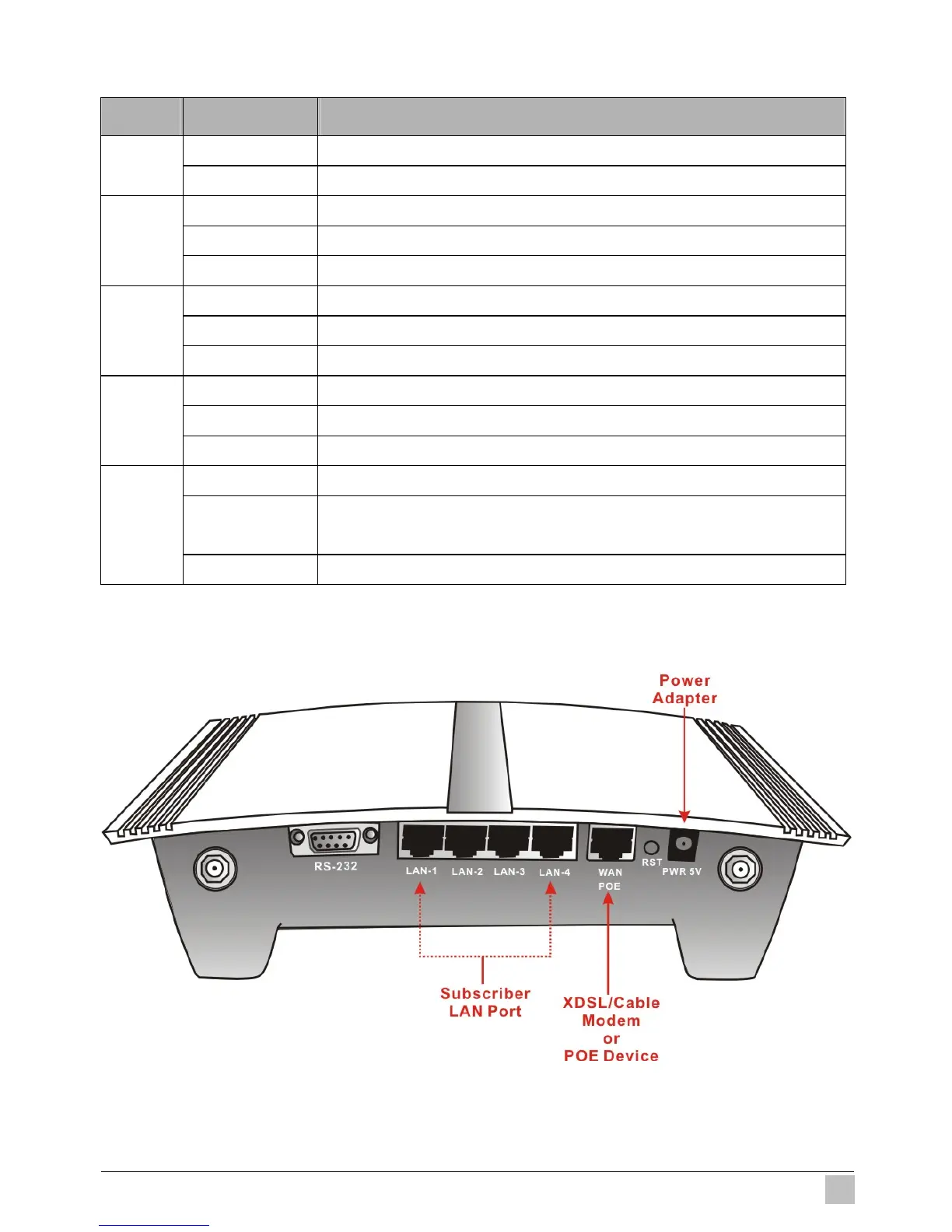

Figure 1-4 Wireless Subscriber Gateway Rear Panel
