H&S 4112 - Page 20

-18-
OPERATION & ADJUSTMENTS
GAUGE WHEELS
Outboard gauge wheels are located on the forward section of each rake beam. These gauge wheels support
the rake beams to allow the rake wheels to better follow the contour of the ground. Located on the gauge
wheel pivot spindle is an adjustable brake assembly. Adjust brake by tightening bolt. The brake should
have enough tension to prevent zig-zag motion, but still allow the wheel to pivot when making corners.

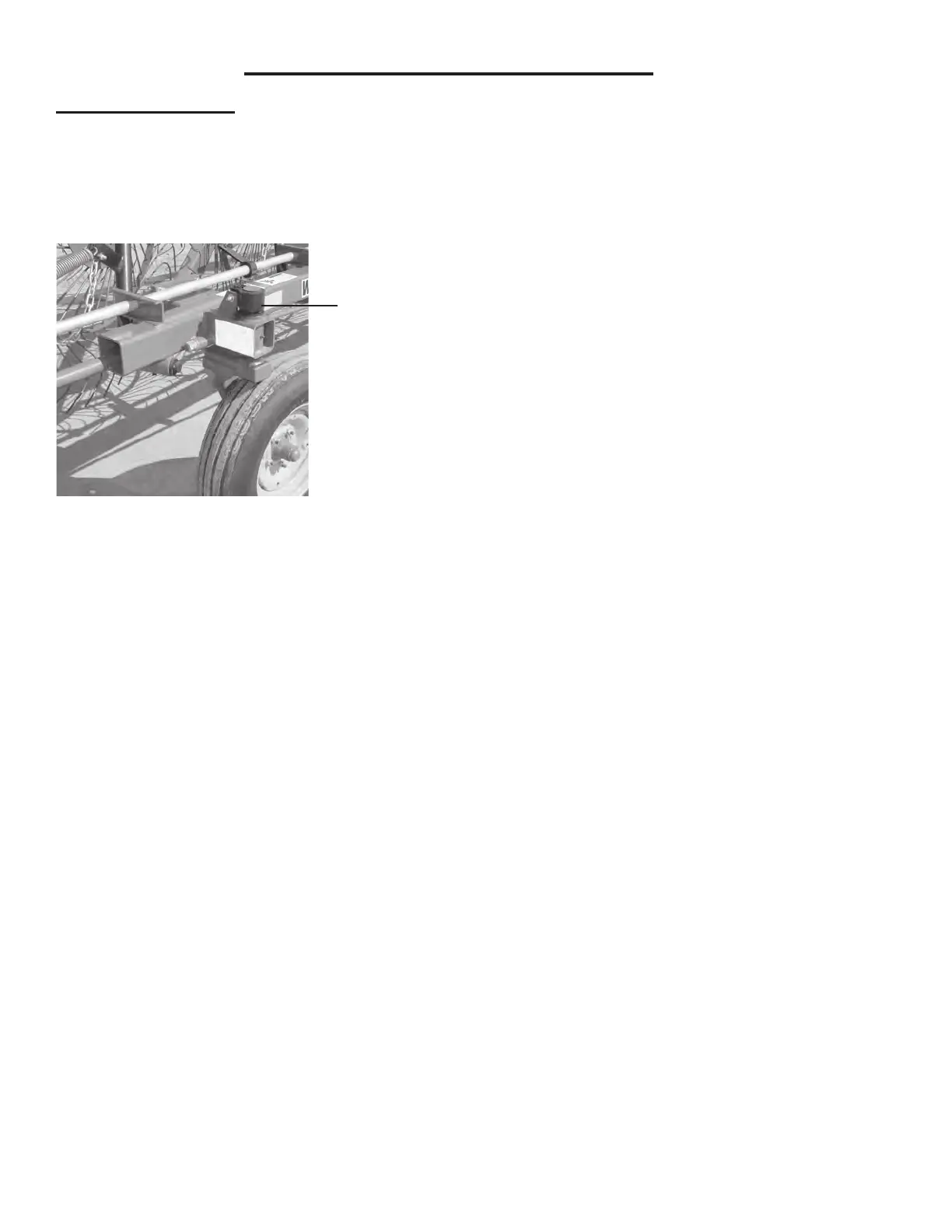

Adjustable
Brake
Assembly
