-19-
OPTIONAL EQUIPMENT
C
A B

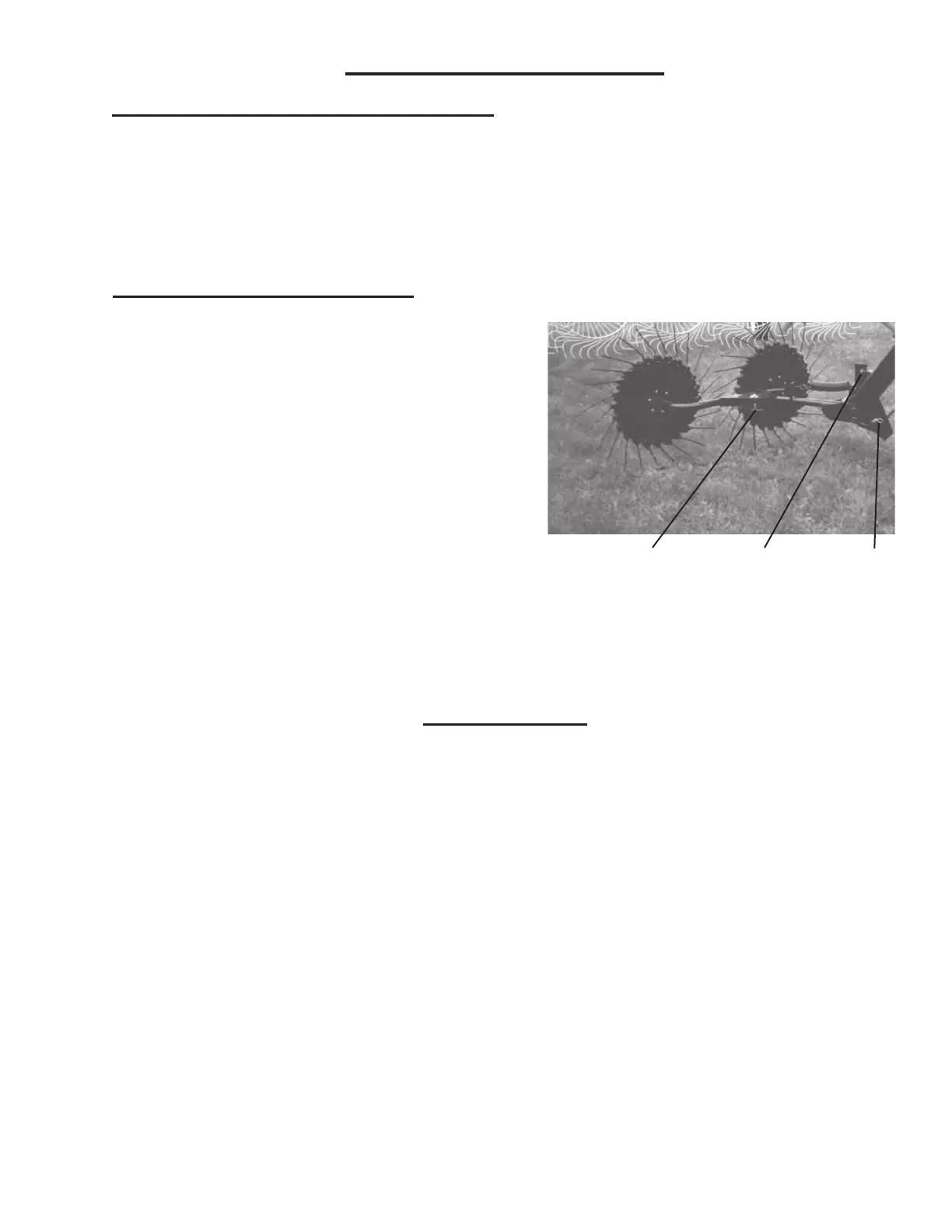

2-Wheel Center Kicker Wheel
To engage center kicker wheels, hydraulically open rake
to desired raking width. Remove Locking Pin (C), swivel
kicker wheel assembly to the desired raking angle. Re-
insert the locking pin. Next, remove Locking Pin (A)
from transport lock position, and insert into convenient
Storage Position (B). Lower rake wheels to begin raking.
To return to transport position, PRIOR TO CLOSING
RAKE, raise rake wheels. (This will also raise the
center kicker wheel assembly). Remove Locking Pin
(C), Swivel kicker wheel assembly so that it is in line
with the hitch pole. Re-insert Pin (C). Remove locking
pin from Storage Position (B) and insert to lock the unit
into the up or Transport Position (A). Rake beams may
now be closed for transport.
OPTIONAL CENTER KICKER WHEEL
An optional center kicker wheel assembly is available for the Rake. If the hay is laying out at, these extra
wheels allow you to raise the hay laying in the center of the rake out of the stubble for faster drying, and
easier pick-up. A separate cylinder controls the kicker wheel assembly. It raises and lowers with the rake
wheels.
MISC. OPTIONS
> Rear Tandem for 4112
> Highway Lighting Kit
> Wind Panel Kit
> Safety Chain
> Wrap-Around Front Rake Beams for 4114
> Rake Beam Support Wheels
