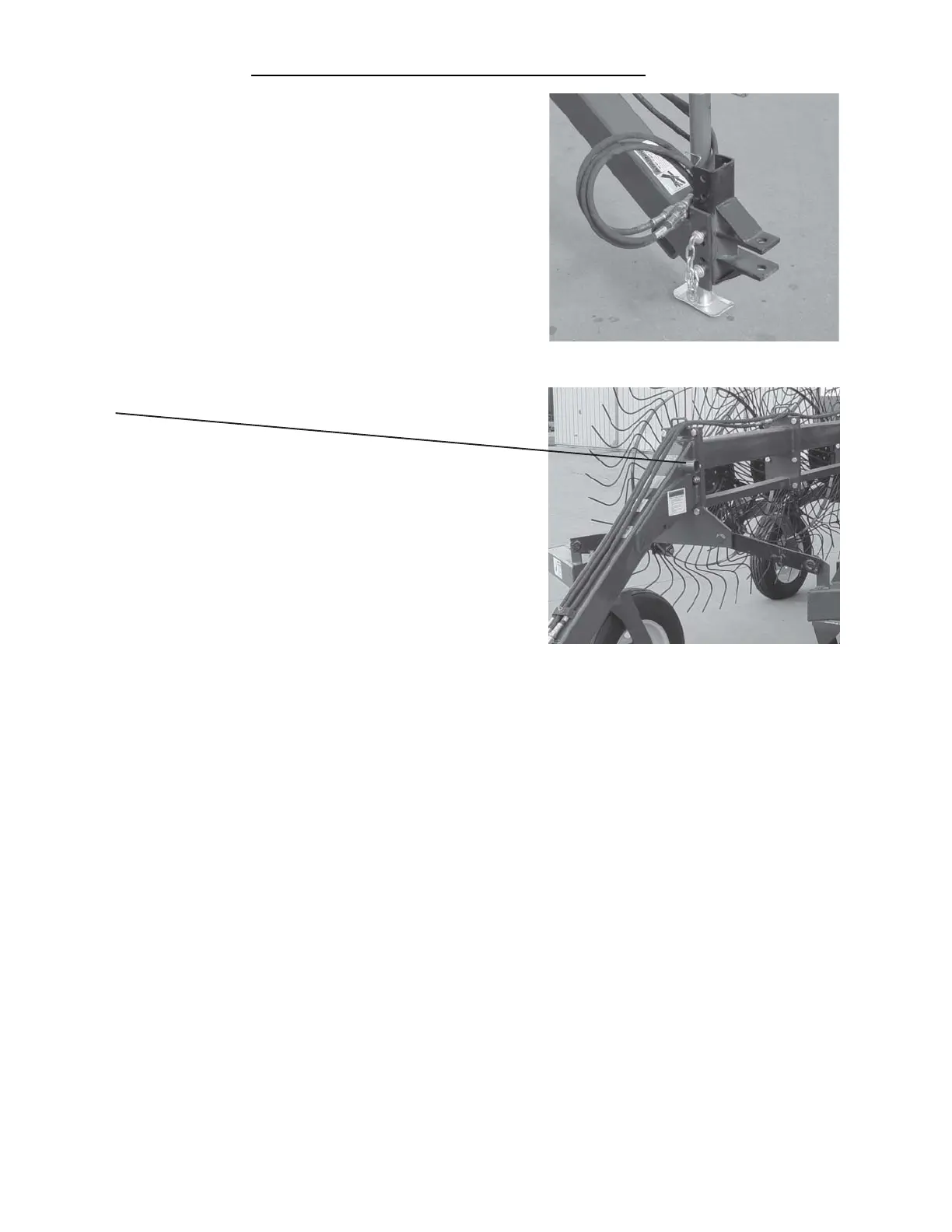

1. Adjust the tractor hitch (13 to 17 inches above ground)
and attach rake to tractor with a hitch pin with a safety
locking device.
2. There are ten different positions to adjust the hitch on your
new Hi-Capacity Rake. Hitch should be adjusted so main
frame of the rake is level or parallel to the ground.
3. Remove weight from lift jack. Remove jack from pipe and
place on convenient storage mount located on the front top
of pole.
PREPARING FOR OPERATION
4. Connect hydraulic hose for raising and lowering rake wheels from rake to a double acting valve on the
tractor.
5. Connect hydraulic hoses for opening and closing the rake to a double acting valve on the tractor.
6. Connect 7-pin electrical connector to tractor (If equipped with optional lighting).
To Next Page
