LUBRICATION GUIDE
GREASE FITTINGS
There are numerous grease fittings on the 5114 and 5116 Hi-Capacity Rakes. If equipped with a center
kicker wheel, there will be one more on the pivot point. If lubricated properly and often enough, it will
prolong the life of your Hi-Capacity Rake. Grease daily during normal use and before and after
storage and after power washing. Use a good grade of high quality grease. Make sure that grease
comes out around the shaft on sleeve type bearings. Wipe off excessive grease to prevent
accumulation of chaff or grit around the bearing.
LOCATION

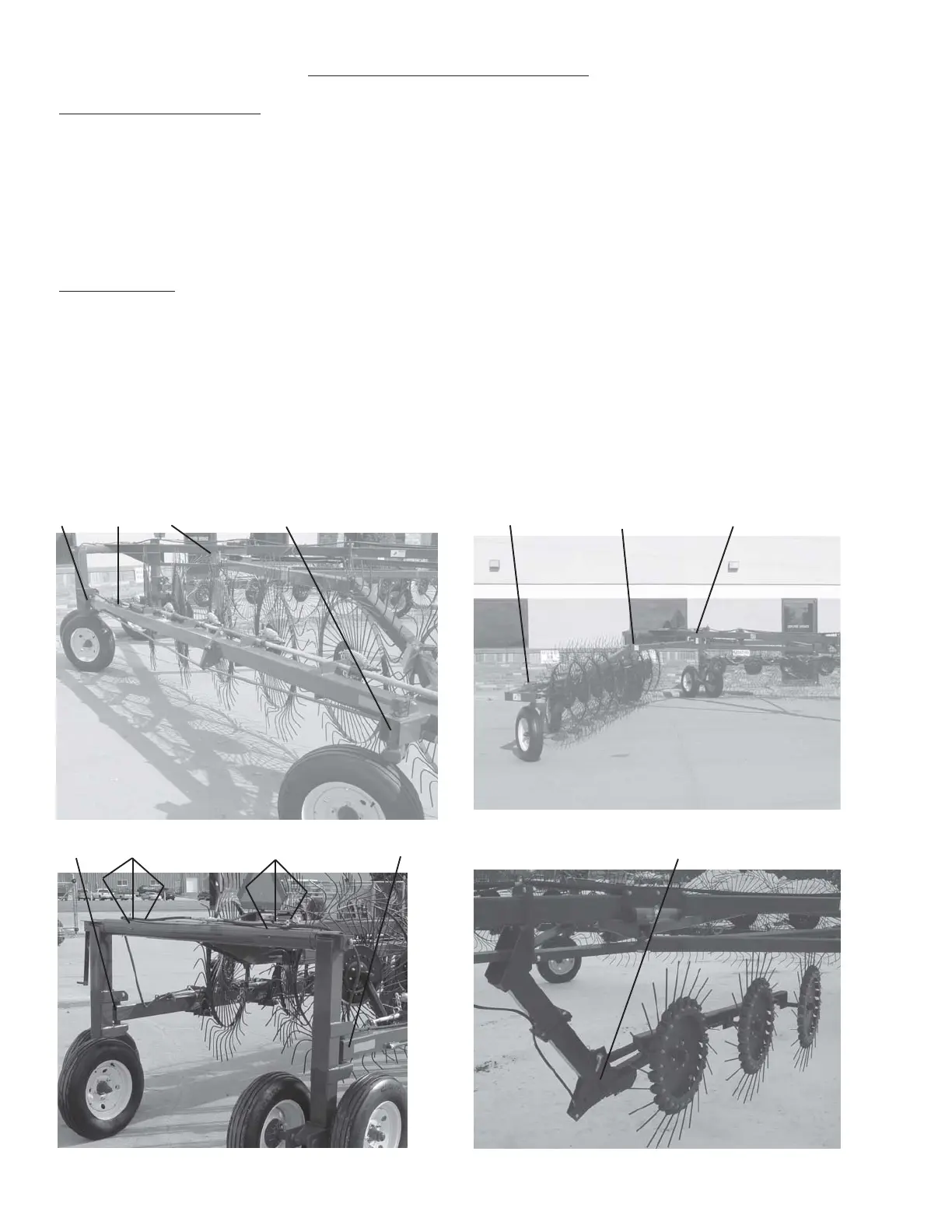

Listed and shown are the description of location and number of grease fittings.
A. (2) Top Opening Arm Front Pivot
B. (4) One on Each Gauge Wheel
C. (2) One on Each Lift Cylinder Mounting Bracket
D. (2) One on Each Rake Beam Pivot
E. (6) Top Rear Windrow Width Adjustment
F. (5) Top Opening Arm Rear Pivot
G. (1) Center Kicker Wheel Pivots (If Equipped)
(8) One on Each Transport Wheel Hub
-18-
DCF B B A F
D E E D G
