OPERATION & ADJUSTMENTS

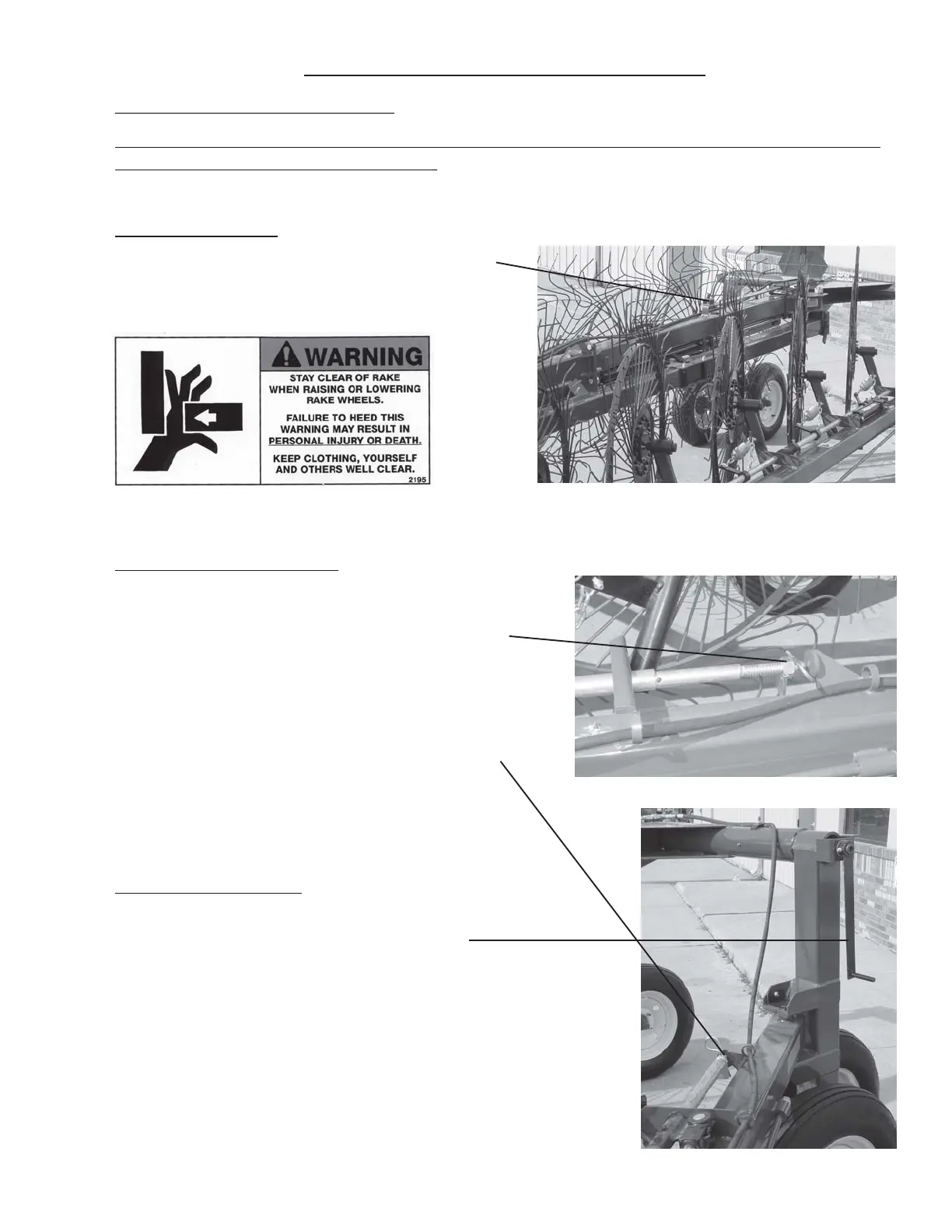

RAKING WIDTH
Raking width is determined by setting the spring
loaded stop, located above the rear pole section
as shown.
WINDROW WIDTH
Windrow width is adjustable from 38” to 58”.
Adjustment is made by turning the crank,
located on the left of the rear of the rake as
shown.
EMERGENCY SHUTDOWN
Stop the tractor engine, remove ignition key, and allow all mechanisms to stop before
cleaning or working on the machine.
GROUND PRESSURE
Rake wheel to ground pressure is adjusted by
turning the threaded rod while the rake wheels are
in the raised position. This allows the tab nut
to stay stationary while the threaded rod rotates, thus
decreasing pressure, or increasing pressure. The
further forward that the nut is on the threaded rod,
the lesser the amount of rake wheel ground
pressure.
The further back that the nut is on the threaded rod,
the greater the amount of rake wheel ground
pressure.
