-16-
OPERATION & ADJUSTMENTS

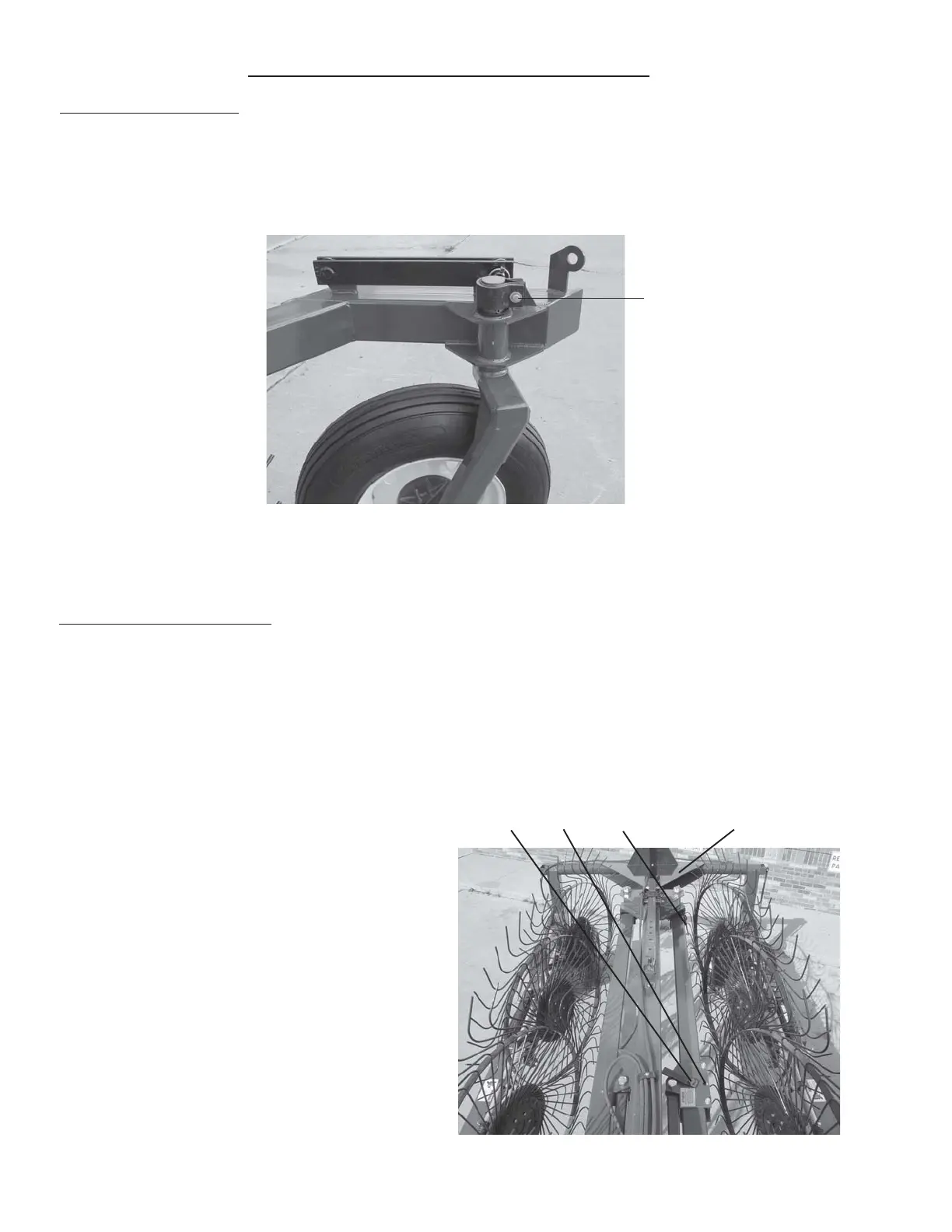

ONE SIDED RAKING
Raking with one side only can be accomplished by first locking the left side of the rake into transport
position utilizing both the front and rear transport locks. Next, remove Pin (E) attaching front linkage arm
to main linkage arm, and place in storage hole (F). Also remove Pin (G) at the rear of the main linkage
arm and place in the storage position (H) located in hitch attachment gusset at the rear of the rake
(Lowering of rake wheels will aid in removal/installation of pins. Be sure rear transport lock is in transport
position prior to raking with one side.) The right side can now be opened, and used to rake.
NOTE: Only the right side of your Hi-Capacity Rake can be used in this manner.
EFG H
GAUGE WHEELS
Outboard gauge wheels are located on the forward section of each rake beam. These gauge wheels
support the rake beams to allow the rake wheels to better follow the contour of the ground. Located on
the gauge wheel pivot spindle is an adjustable brake assembly. Adjust brake by tightening bolt. The brake
should have enough tension to prevent zig-zag motion, but still allow the wheel to pivot when making
corners.
Adjustable
Brake
Assembly
