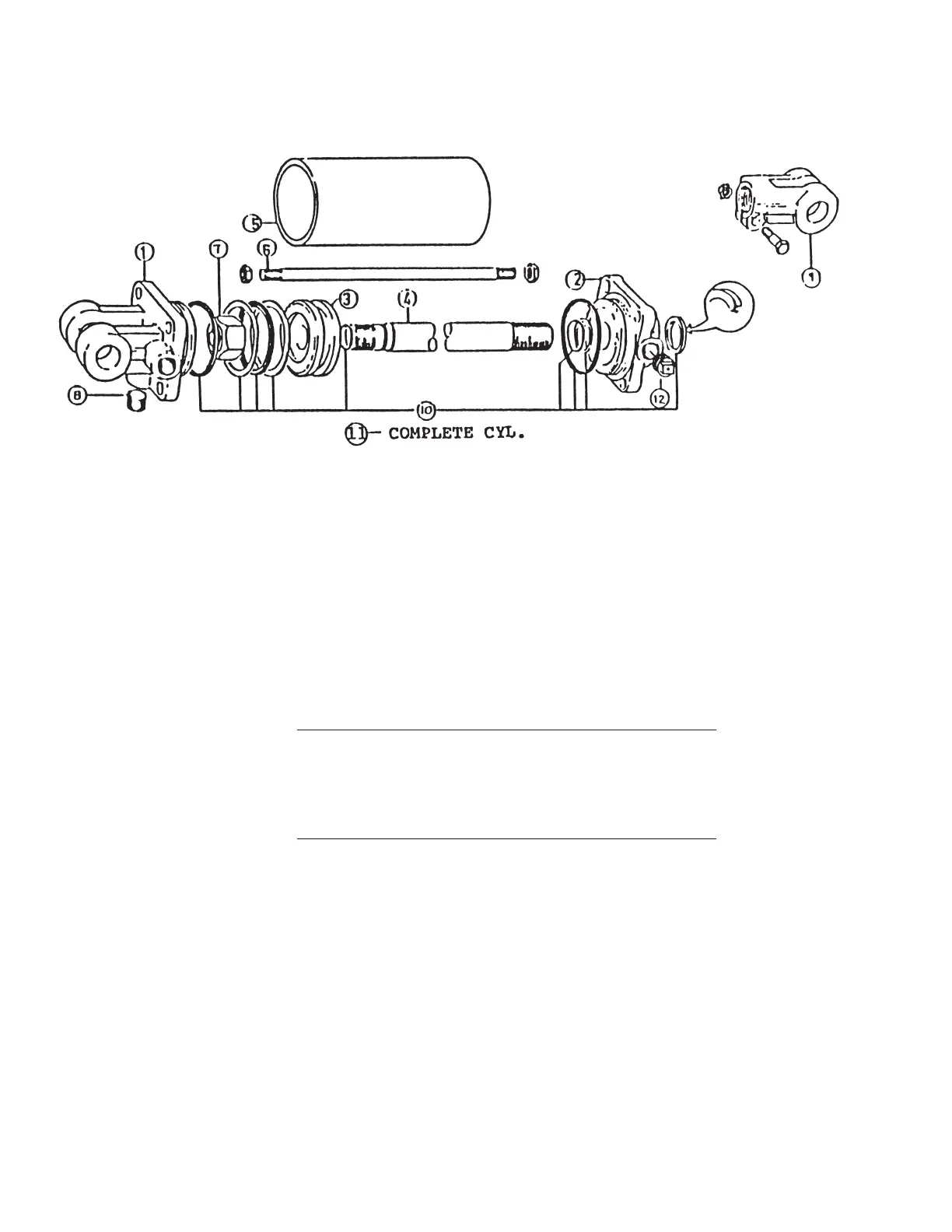

FIGURE 5
FIGURE 5
HYDRAULIC LIFT CYLINDER
ITEM PART NO. DESCRIPTION
1. 23N142A Clevis Cap
2. 23N143A Rod Cap
3. 23N144 Piston
4. T184A Rod
5. BFR68 Cyl. Tube
6. T186 Tie Rod
7. 23N148 Piston Nut
8. 23N149 Plug
9. 23N150A Rod Clevis
10.
23N151 Seal Kit
11. BFR69A Complete Cylinder
12. BFR70 Vent Plug
