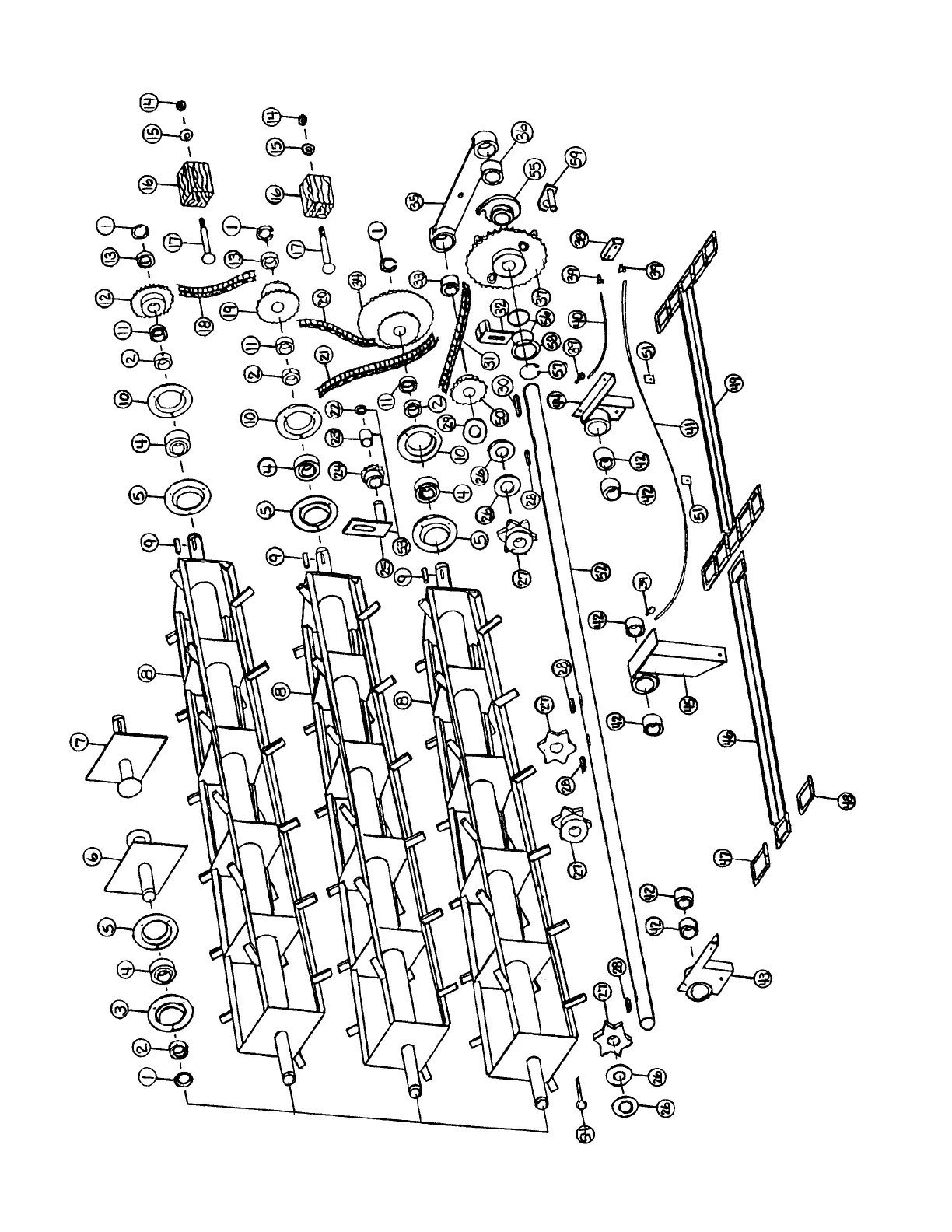

FIGURE 3
ITEM PART NO. DESCRIPTION
1. F32 U-Bolt (2)
2. S1 Spring for Shield (2)
3. S2 Plastic Beater Guard
4. S3 LH Side Panel Top
5. S4 LH Side Panel
6. S5 LH Emergency Stop Panel
7. S370 Emergency Stop Panel
8. ES14 Thimble (2)
9. ES15 Cable Clamp (2)
10. S7 Spring for Emergency Stop (3)
11. S8 Emergency Stop Cable
12. S9 RH Side Panel Top
13. S10 RH Side Panel
14. S11 RH Emergency Stop Panel
15. S12 Gearbox Brace
16. S13 Return Pan End
17. S14 Cross Apron Pan End
18. S353 Front Main Panel
19. S16 Cross Apron Pan
20. S356 Return Pan
21. S18 RH Return Pan Angle
22. S19 LH Return Pan Angle
23. S20 Apron Side Spacer
24. IFB56 Drive Shaft Panel
25. S22 LH Front Angle
26. S217 Return Pan End
27. S420 Rubber Seal
28. S288 Rubber Seal Strap
29. PB79 Hydraulic Hose Holder
30. JB105 Hose Coupling Holder
31. S522 Manual Holder
35. S239 Cross Conv. Front Holdown
36. S240 Cross Conv. Rear Holdown
37. CHM38 Plug Storage
-27-
FIGURE 2
HOUSING COMPONENTS FOR UNIT
