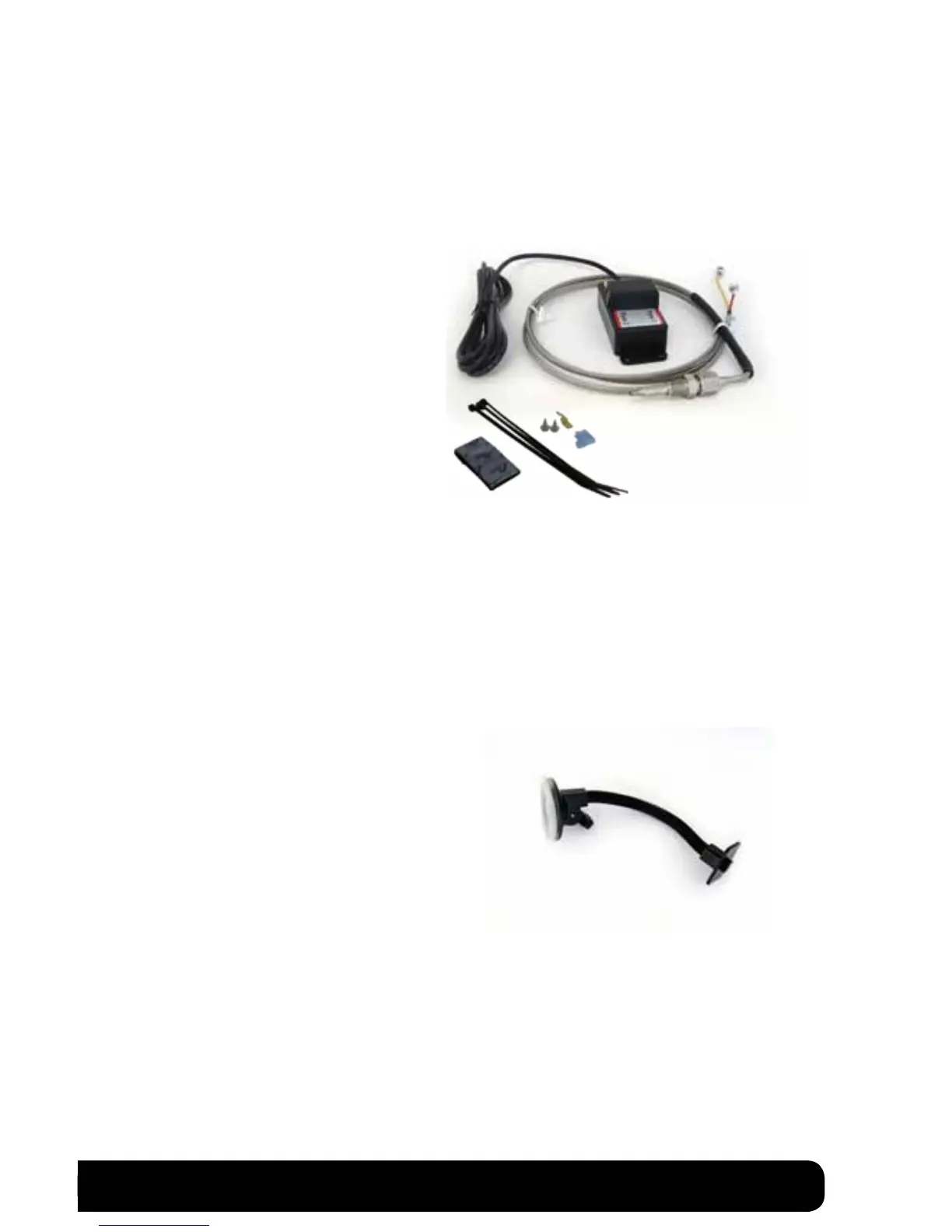

Pyrometer Connection Head (PCH) Board Assembly*
The PCH Board or Pyrometer Connection Head serves as a dock to connect the pyrometers into the Mini
Maxx system. The PCH Board includes the ability to connect two pyrometers. Attached to the PCH Board
housing is a cable with four pin plug which connects to the OBDII Adapter Plug. The list below includes all
separate parts that make up the entire PCH Board Assembly.
• PCH Board
• Velcro
• (2) Self-tapping Sheet Metal Screws
• Pyrometer Cable
Universal Windshield Mount
This universal windshield mount is used to install the Mini Maxx rmly onto the windshield, it is a suction
cup mount that will work on any vehicle windshield. Check our web site for other mounting options, the Mini
Maxx is adaptable to a range of other mounting styles.
H&S Also oers custom vehicle specic solutions.
See www.hsperformance.com for details.
* Optional
