Hanover 9820101-2 - Back Wall Assembly and Installation; Attaching Back Wall Panels to Base; Installing Back Wall Rails and Outer Panels

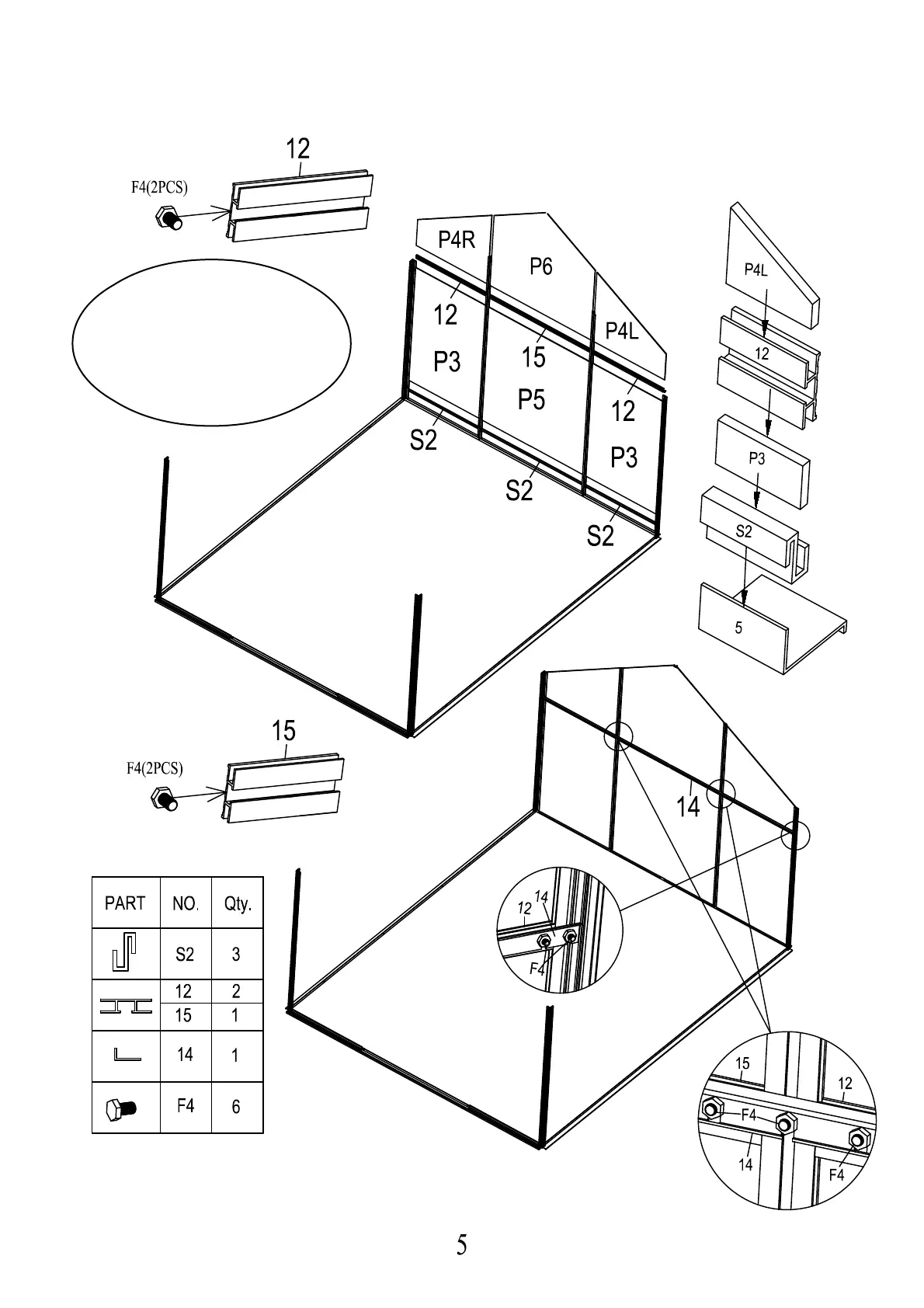

Back Wall Assembly & Installation
1.Attach panels P3-P5-P3
to base with S2.
2.Attach rails 12-15-12
to panelsP3-P3-P3.
3.Attach panels P4R-P6-P4L
to rails 12-15-12.
Hand tighten bolts
as shown
