Fastenings and Reinforcing Ribs Installation
15
15
15

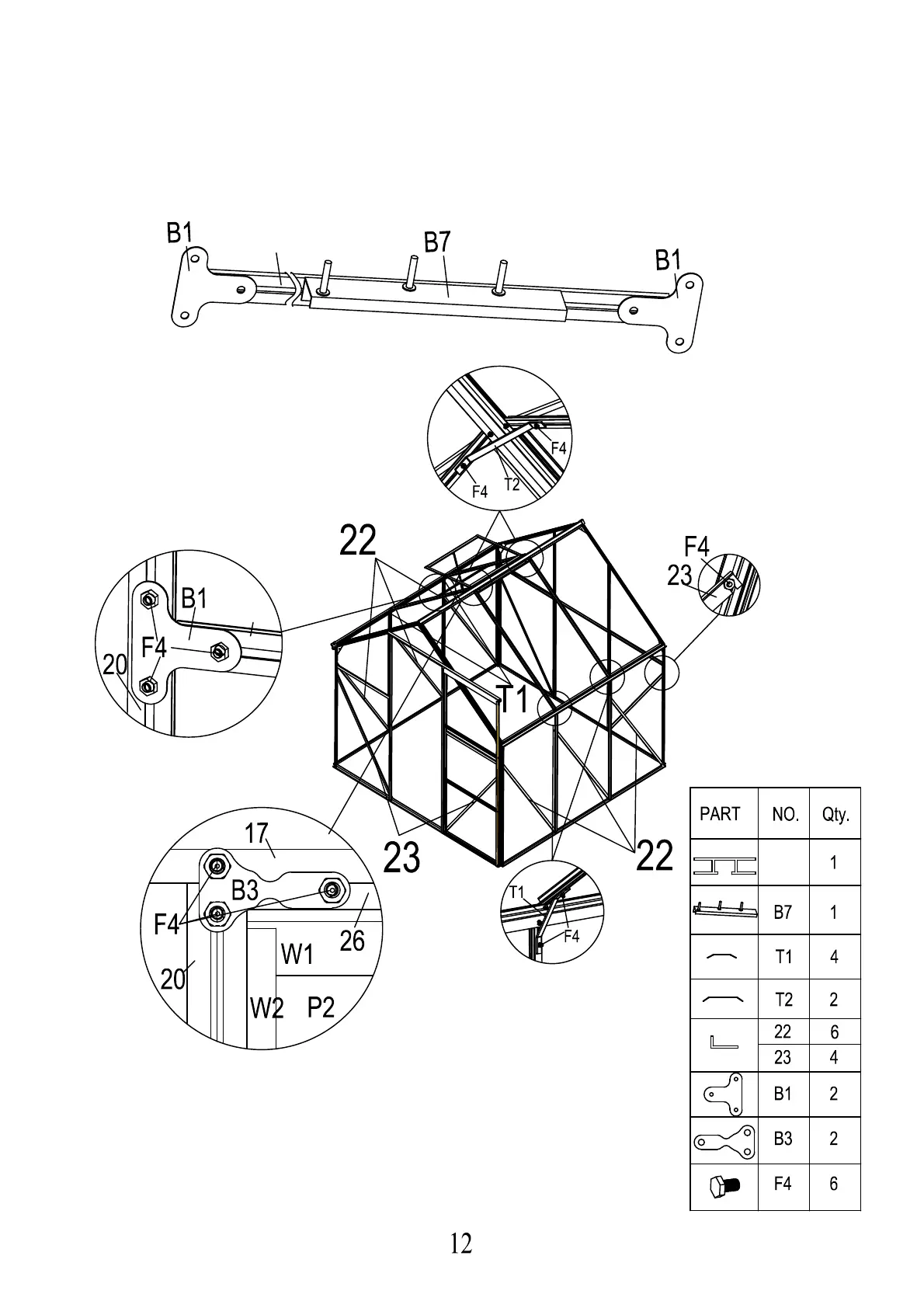

1.Assemble the window base
(B7-15) using bracket(B1).
2.Assemble corner brace to
rails(17,20,26) as shown.
1.Assemble the six cross
braces(22) and four cross
braces(23) as shown using
the pre-inserted hex bolt(F4).
To Next Page
