Tools required for assembly (not supplied)
• A knife to cut open the box
• Two 13 mm spanners - to tighten the inlet chute
Box 1 contains:
✓ The chipper body
Box 2 contains:
✓ The inlet chute
✓ A fastener pack containing parts required for assembly
✓ Documentation (Hansa operations manual, warranty card and Honda motor manual)
CAUTION: The chipper body weighs 53 kg; it is recommended to cut the box open rather than lifting the body out.

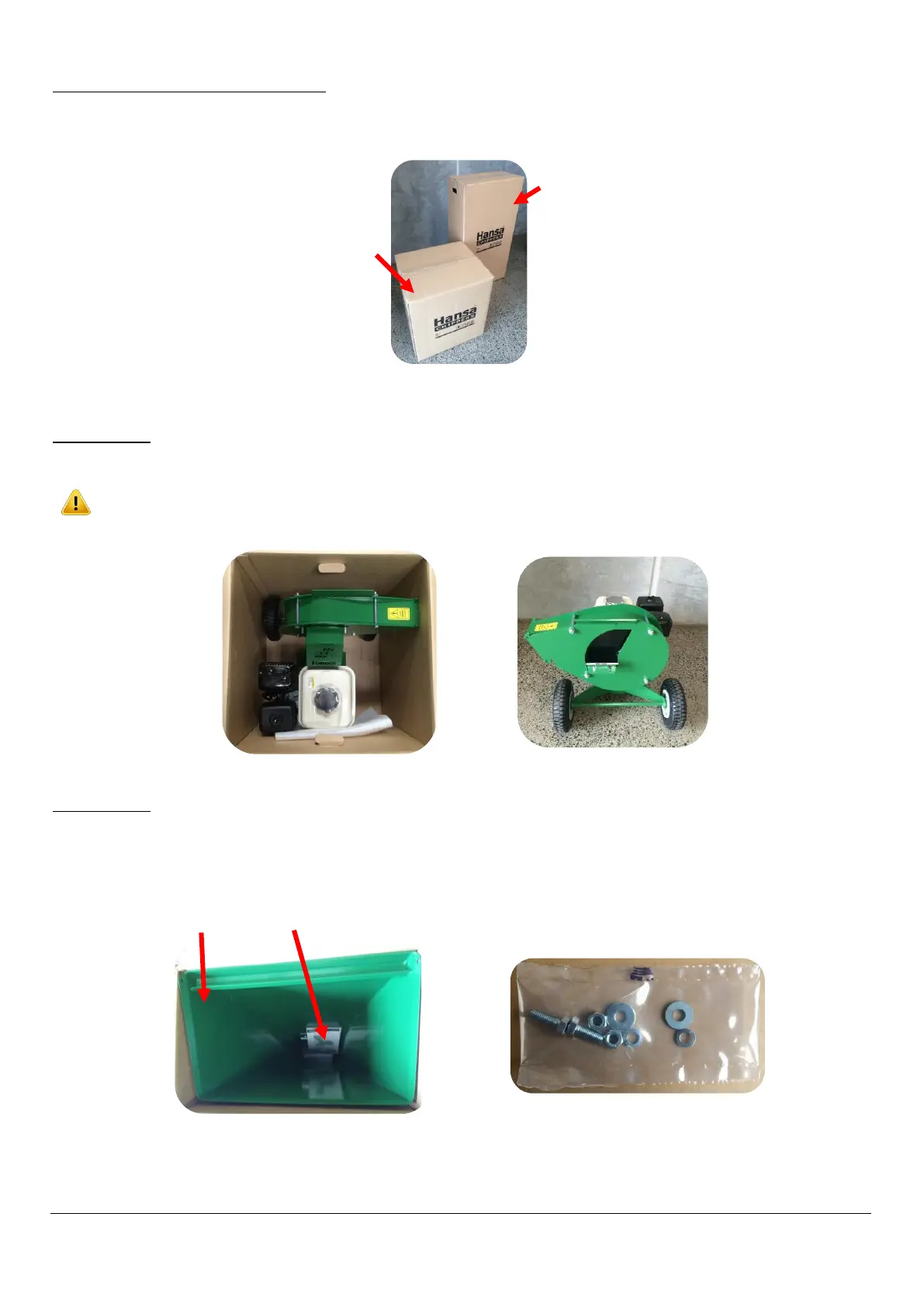

Contents in box 1
Chipper body
Box 1
Box 2
All the C4 parts in two separate boxes
Contents in box 2
Inlet chute
Documentation
Fastener pack
