Assembling your chipper
Fit the inlet chute
Fix the inlet chute – slide the tab at the base
of the inlet chute over the tab at the top of
the rotor housing. Adjust the inlet chute
until the holes at the back of the rotor
housing line up with the holes on the back of
the inlet chute.
Line up the holes and insert the bolts (item no. 1),
heavy washers (item no. 2), spring washers (item no.
3), and nuts (item no. 4). Ensure that the heavy
washer is touching the chipper body (top) and the
spring washer is touching the nut (bottom).

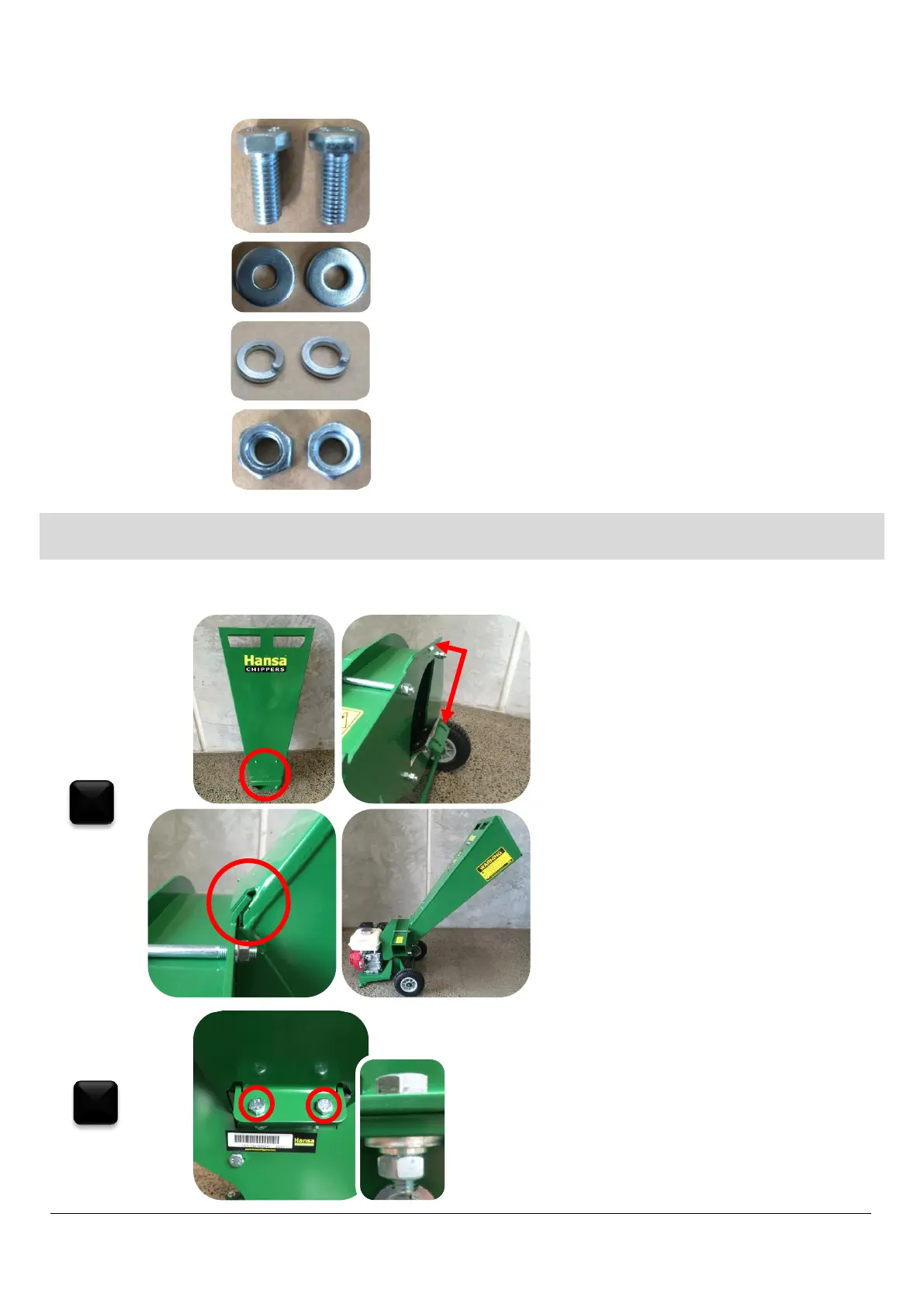

Item no.
Fastener pack contents (in box 2)
1
Two bolts to attach the inlet chute.
2
Two heavy washers to attach the inlet chute.
3
Two spring washers to attach the inlet chute.
4
Two nuts to attach the inlet chute.
