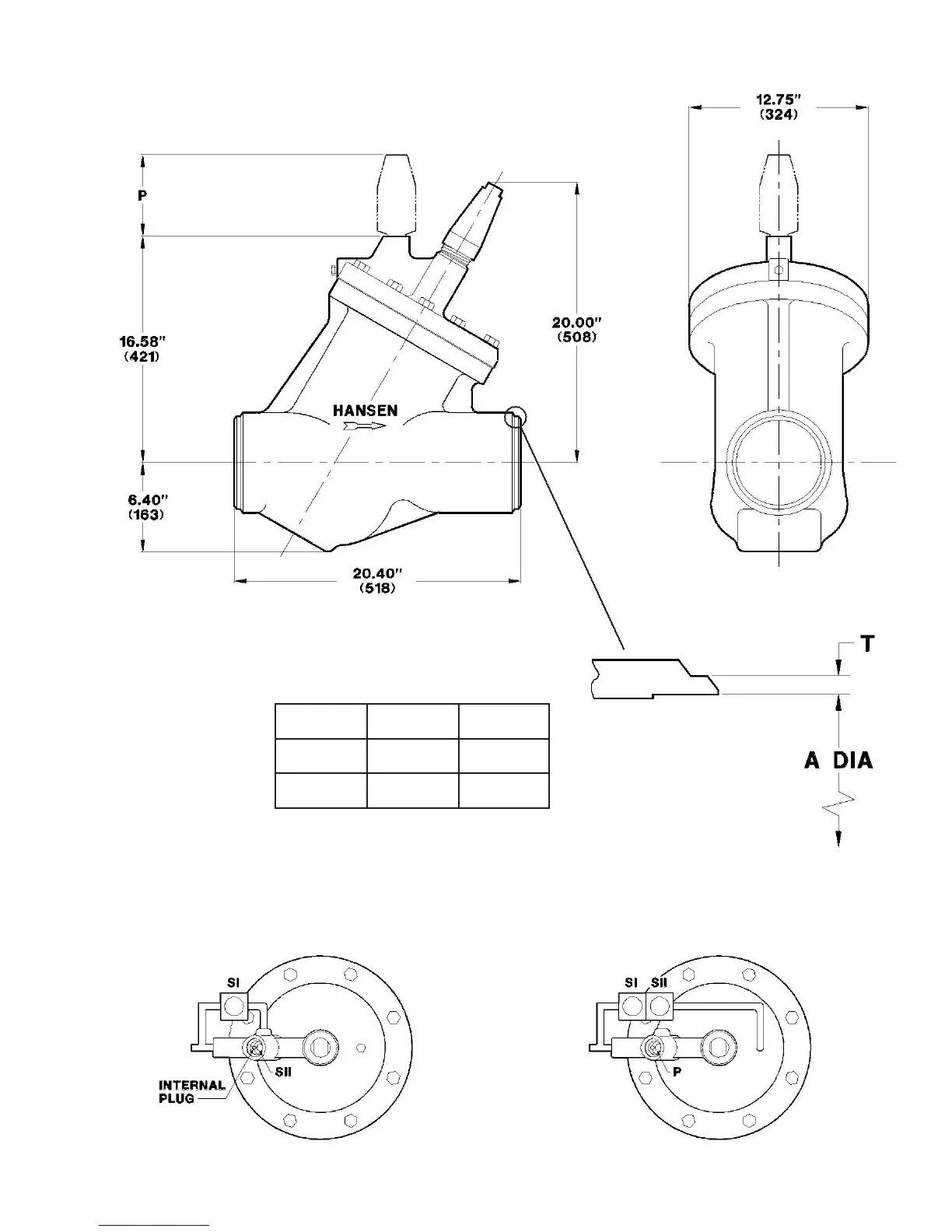

INSTALLATION DIMENSIONS (MM)
5" AND 6" REGULATORS
(See page 8.)
WELD END DIMENSIONS (MM)
P ORT SIZE
A
T
5"
5.05"
0.26"
(125)
(128)
(6.6)
6"
6.06"
0.28"
(150)
(154)
(7.1)
5" AND 6" PILOT PIPING (TOP VIEW)
FOR SERIES ARRANGEMENT (AS)
FOR SERIES AND PARALLEL ARRANGEMENT (AD)
SI, solenoid; SII pressure pilot
SI, solenoid; SII & P pressure pilots
