Hansen HA4A series User Manual

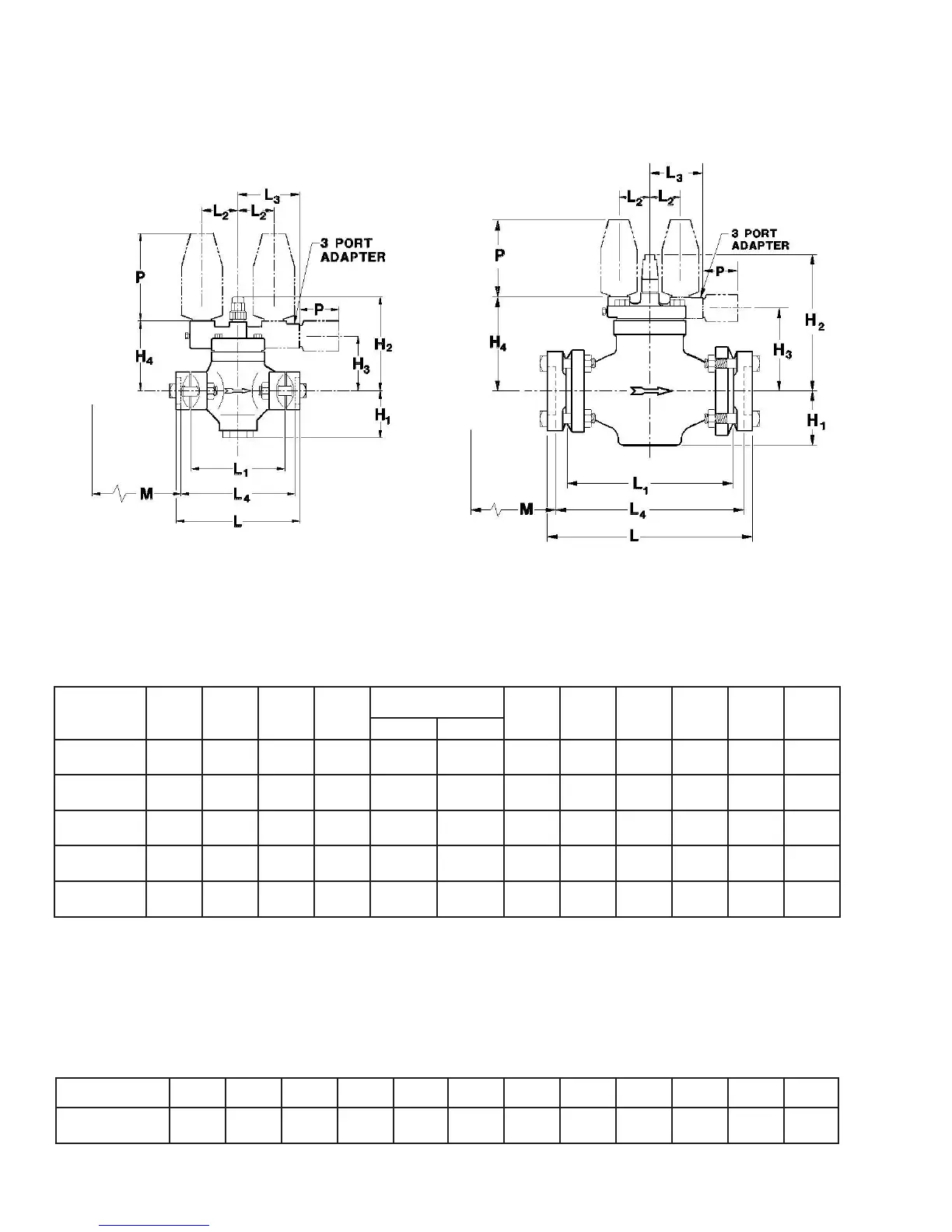

INSTALLATION DIMENSIONS (MM)
¾" THROUGH 1¼" REGULATORS
1½" THROUGH 4" REGULATORS
M = Additional length for close-coupled strainer
PORT SIZE
H
1
H
2
H
3
H
4
L
L
1
L
2
L
3
L
4
M
W*
(mm)
F PT,SW
WN,ODS
3
/ 4 ", 1", 1
1
/ 4 "
3.09"
6.77"
3.75"
4.63"
8.20"
8.94"
6.19"
2.38"
4.07"
7.20"
3.70"
4.50"
(20, 25, 32)
(78)
(172)
(95)
(117)
(208)
(227)
(157)
(60)
(103)
(183)
(94)
(114)
1
1
/ 2 ", 2"
2.87"
8.84"
4.90"
5.72"
12.39"
13.39"
9.88"
2.35"
4.04"
10.89"
9.83"
4.50"
(40, 50)
(73)
(225)
(124)
(145)
(315)
(340)
(251)
(60)
(103)
(277)
(250)
(114)
2
1
/ 2 "
3.62"
9.69"
5.57"
6.53"
13.01"
14.03"
9.88"
2.35"
4.04"
11.01"
9.83"
5.62"
(65)
(92)
(246)
(141)
(166)
(330)
(356)
(251)
(60)
(103)
(280)
(250)
(143)
3"
4.06"
10.00"
6.03"
6.88"
15.38"
16.40"
12.25"
2.35"
4.04"
13.38"
12.20"
6.50"
(80)
(103)
(254)
(153)
(175)
(391)
(417)
(311)
(60)
(103)
(340)
(310)
(165)
4"
4.69"
10.56"
6.58"
7.46"
17.01"
20.51"
14.12"
2.69"
4.38"
15.01"
14.07"
8.06"
(100)
(119)
(268)
(167)
(189)
(432)
(521)
(359)
(68)
(111)
(381)
(357)
(205)
*Maximum width of valve.
For ¾", 1", 1¼" valves add 3" (80 mm) to one side of the valve for external piping as found on HA4AO and HA4AL.
An alternate 4-bolt version of the 1¼" valve is available with face-to-face dimension (L1) same as R/S 1¼" for replacements.
“P” DIMENSION FOR CONTROL MODULES (MM)
C ATALOG
M 3
M 3W
M S
M 3O
M 3K
M 3KW
M 3L
M 3P
M 3J
M 3T
M 3E25
M3M
Size
6.5"
5.12"
3.25"
7.75"
6.5"
5.12"
6.5"
6.5"
4.63"
4.5"
1"
14.9"
(mm)
(165)
(130)
(83)
(197)
(165)
(130)
(165)
(165)
(118)
(114)
(25)
(378)
The above dimensions do not include seal cap and solenoid coil removal height, or motor-access clearance. M3E25 =
Less 4" (100 mm) long weld nipple. M3M = Electric motor compensated control module with motor.
R429d
12
MAR 2002
