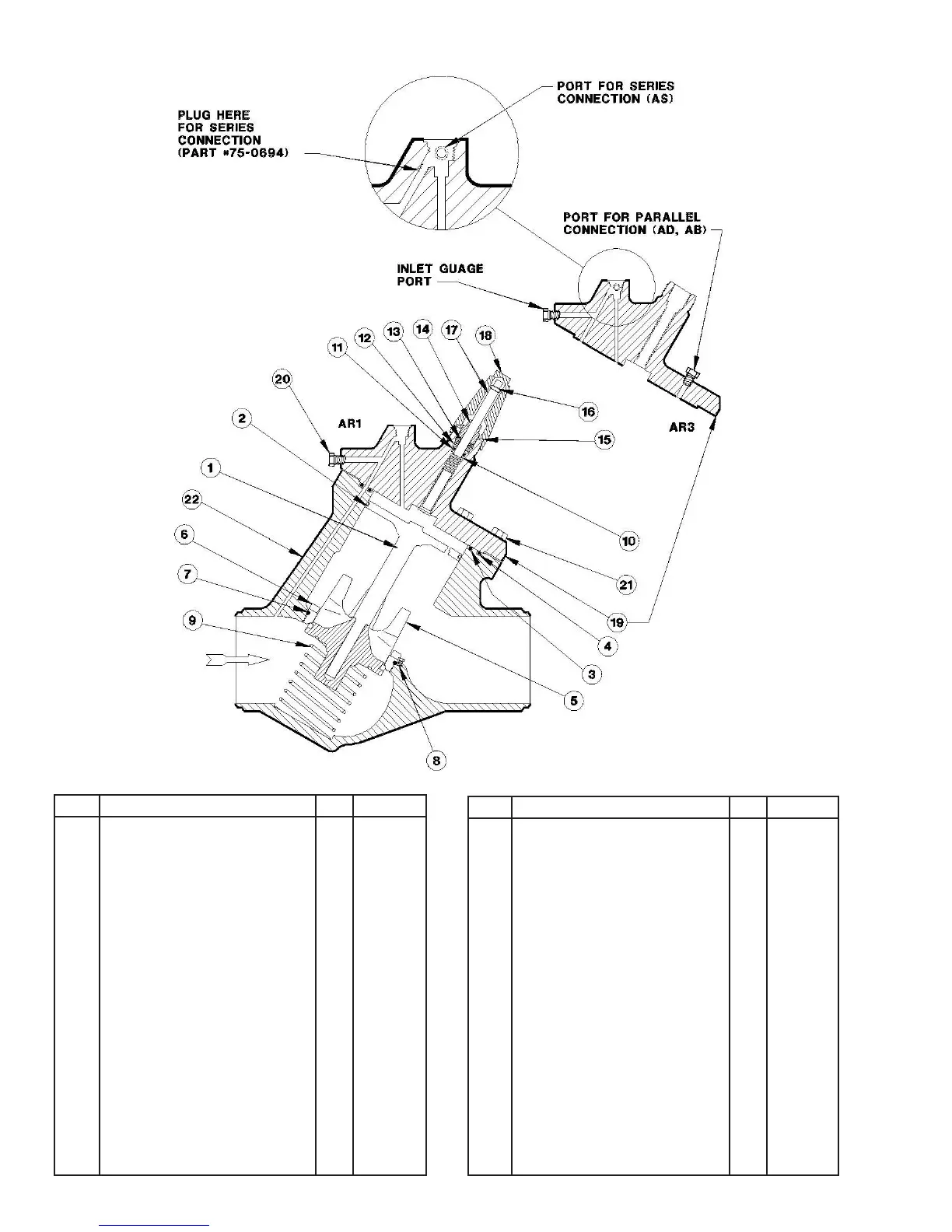

PARTS LIST 5" AND 6" (125 MM AND 150 MM)
I TEM
D ESCRIPTION
Q TY
PART NO
Piston Kit
75-1110
Above Kit consists of:
1
Piston
1
75-0570
2
Piston Seal
1
75-0602
3
Adapter O-ring, Inner
1
75-0605
4
Adapter O-ring, Outer
1
75-0606
G asket Kit
75-1111
Above Kit consists of:
3
Adapter O-ring, Inner
1
75-0605
4
Adapter O-ring, Outer
1
75-0606
7
Seat Seal O-ring
1
75-0613
10
Back-up Washer
1
50-0324
11
Stem O-ring
1
50-0293
12
Stem Washer
1
50-0299
13
Stem Packing
1
50-0290
14
Packing Nut
1
50-0292
15
Seal Cap Gasket
1
50-0315
16
Manual-Opening Stem Pin
1
75-0607
Solenoid Tube Gasket
1
70-0301
Port O-ring and Gasket
3
75-1071
I TEM
D ESCRIPTION
Q TY
PART NO
V- Port/Seat Kit 5"
75-1112
V- Port/Seat Kit 6"
75-1113
Above Kits consist of:
5a
V-Port/Seat 5"
1
75-0640
5b
V-Port/Seat 6"
1
75-0641
3
Adapter O-ring, Inner
1
75-0605
4
Adapter O-ring, Outer
1
75-0606
7
Seat Seal O-ring
1
75-0613
8
Seat Screw (
1
/4"-20 x
1
/2")
1
75-0220
9
Closing Spring
1
75-0601
6
Seat Ring
1
75-0558
17
Manual-Opening Stem
1
75-0581
18
Seal Cap
1
50-0304
19a
Adapter, 1 Port
1
75-0554
19b
Adapter (1 Port) with Plugged
Access Holes for Mutiple Pilots
1
75-0720
20
Gauge Port Plug
1
75-0189
21
Adapter Bolts
8
75-0604
22a
Body, 5"
1
75-0542
22b
Body, 6"
1
75-0541
R429d
18
MAR 2002
