ESL Access Point HS_C09851 PRODUCT MANUAL
Page 5 , Total 15

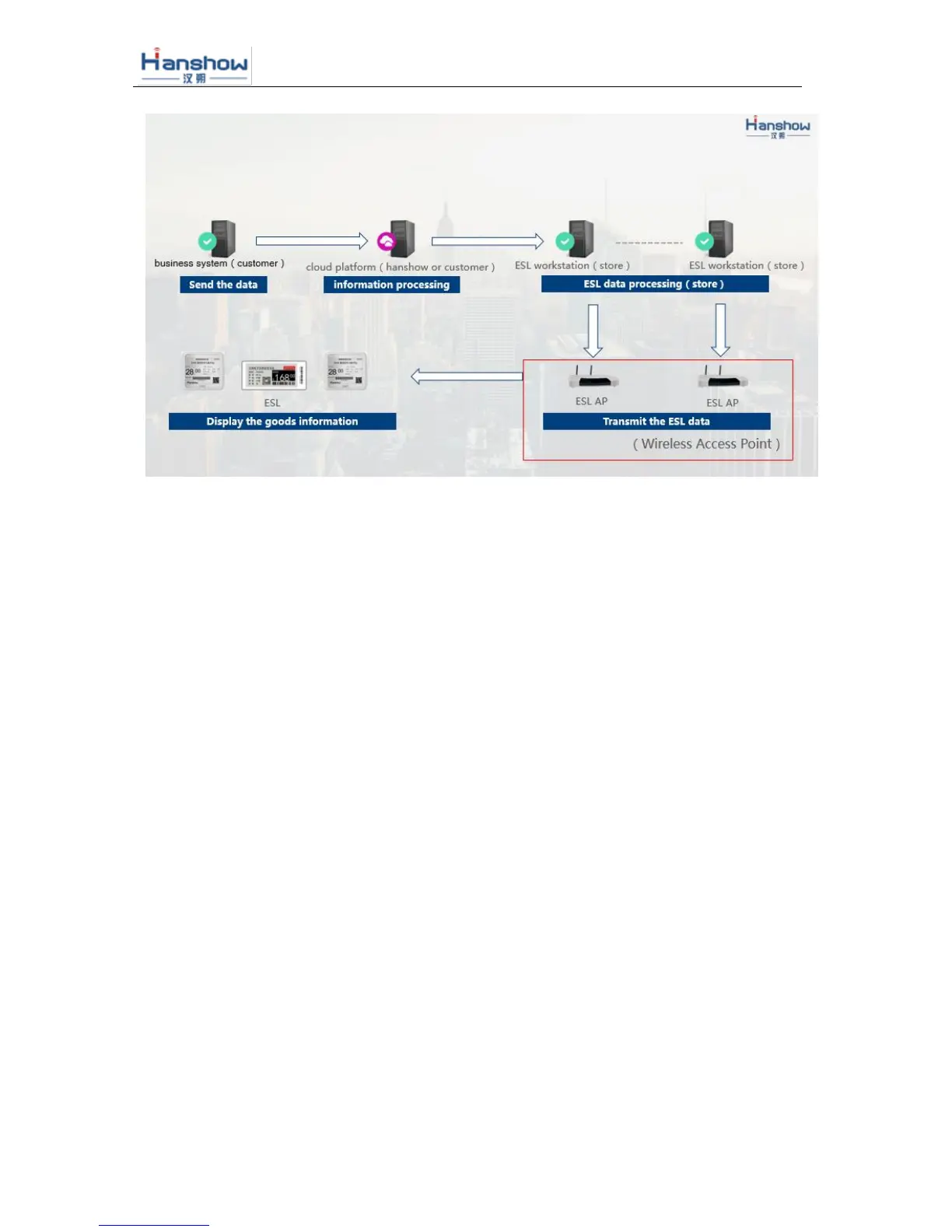

Figure 1-1ESL System architecture diagram
HS_C09851 is an important part of Hanshow electronic shelf label system, it as a data
transmission link responsible for the important task of data forwarding:
（1） Forwarding uplink data：The ESL Access Point connected to ESL-Working over a wired
network, to sent send the price changes, inventory, templates and other data to ESL;
（2） Forwarding downlink data：The ESL Access Point operates in the 2.4G protocol specification,
based on the ESL radio protocol standard to ESL-Working platform to forward ESL heartbeat
and other information.
1.3 HS-C09851 Characteristics
 Linux OS: Embedded Linux operating system, support network upgrade
 4-way antenna: support 4-way antenna work at the same time
 Compatibility: Support LCD and EPD series ESL
 A variety of power: support POE and AC power adapter power supply
 LED light: LED light real-time display working status
2 PRODUCT ARCHITECTURE
2.1 Overview
ESL Access Point using modular design, HS-C09851 has four receiving and transmitting module,
responsible for the transmission of wireless data; and it can interact with data of the price tag and
remote control. data exchange.
