Page 12 , Total 15

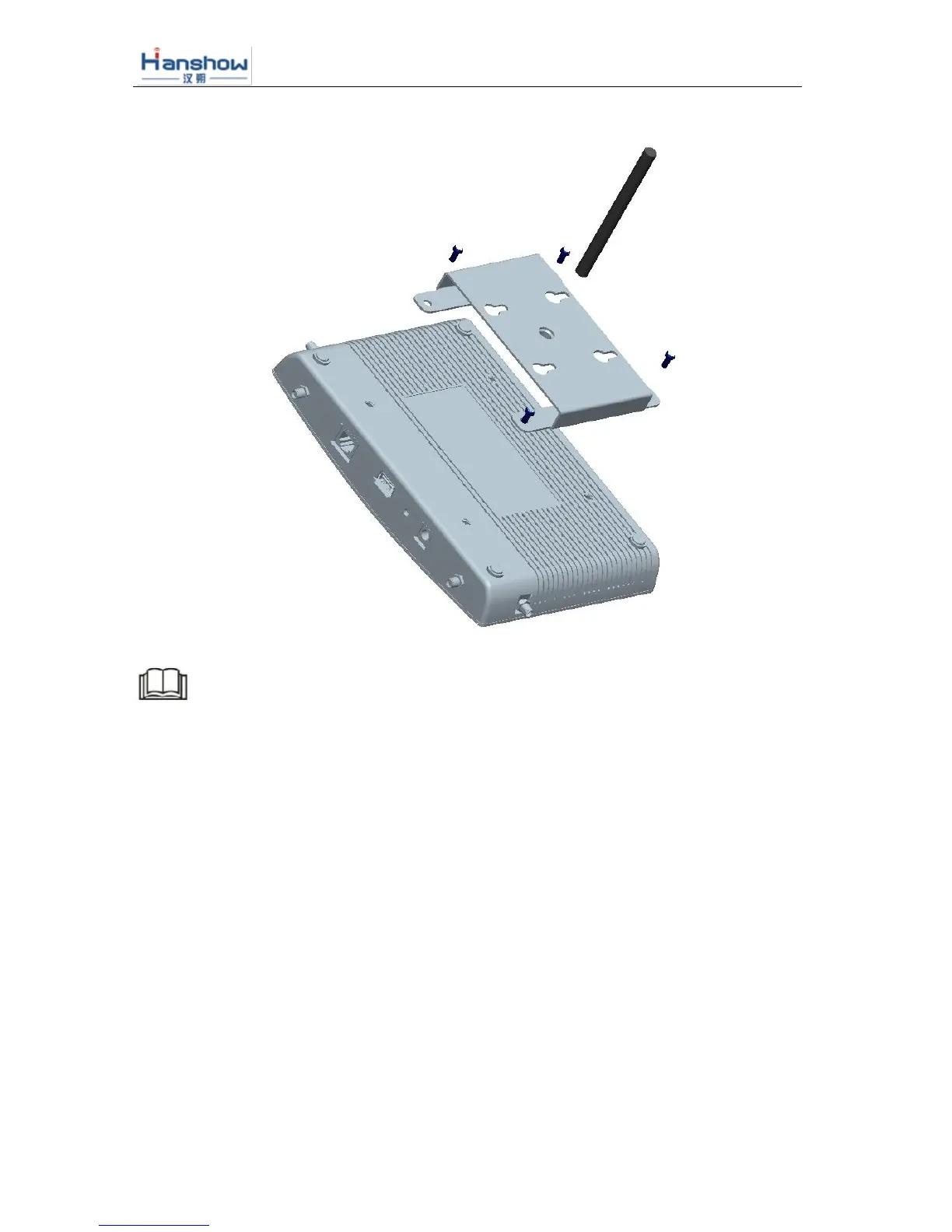

Figure 3-3 ESL Access Point mounting accessories
Note
Accessories are to set the Access Point up on the ceiling.
4 PRODUCT FUNCTIONS
HS-C09851 Host function：
（1） RF sub-system: embedded processing unit, individual RF module
（2） Display：Nixie light and LED display for Access Point ID, working condition and
error code display
（3） Interface：power source, reset button, USB interface, Ethernet interface
（4） Upgraded：software of host processing system and firmware of RF sub-systems
support interface and webpage upgrading
（5） Configuration：Settings on webpage
5 ESL ACCESS POINT CONFIGURATION
