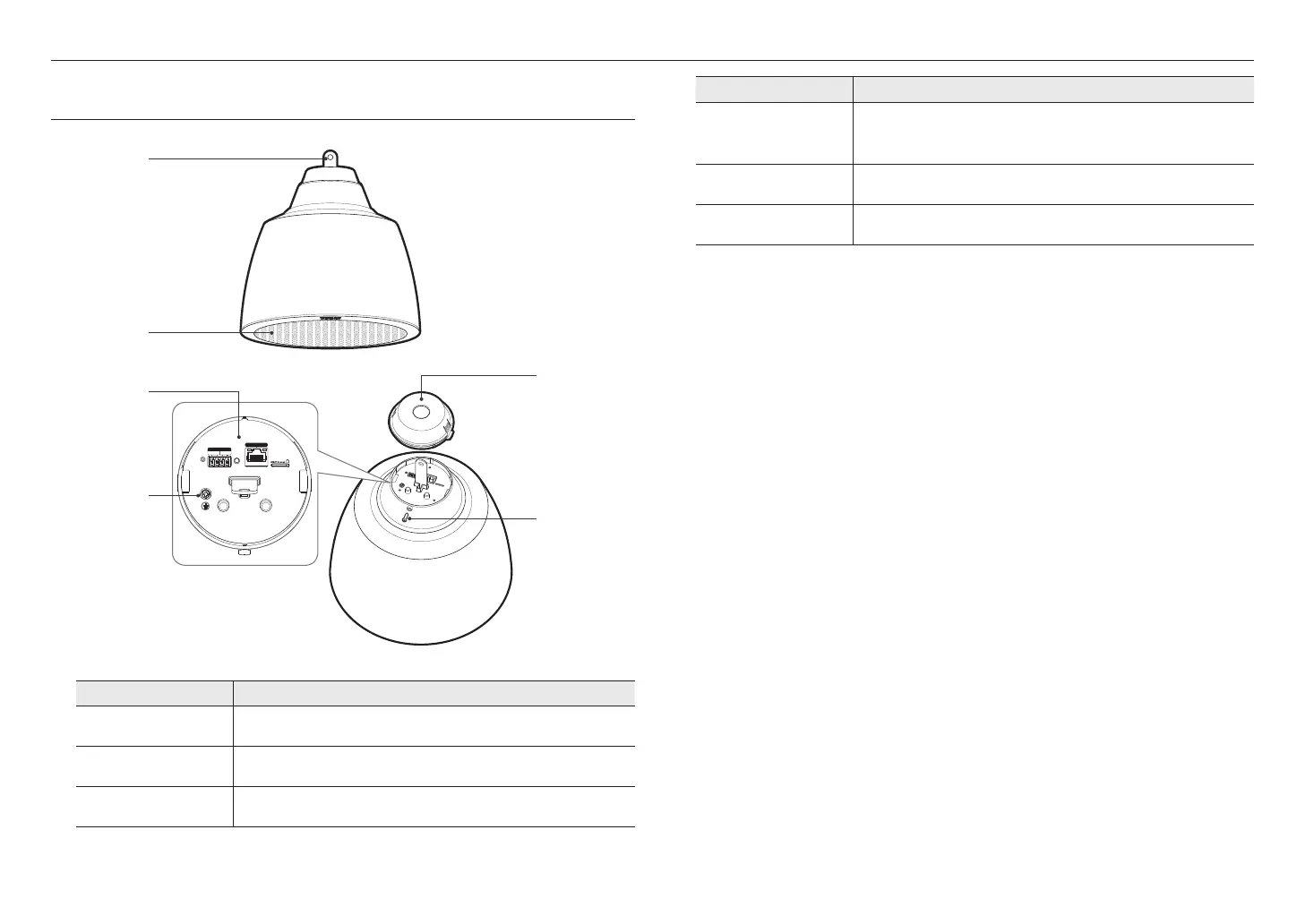

NAMES AND FUNCTIONS OF THE IP SPEAKERS (PENDANT TYPE)
(SPA-P100B/SPA-P100W)
e
f
ALARM
OUT
RESET
IN GND
PoE+
c
a
b
d
Name Function Description
a
Wire link Connected to the wire by using the provided carabiner.
b
Detachable grille Prevents dust intrusion.
c
Audio module Equipped with an audio module.
Name Function Description
d
Grounding port
Used for earth-grounding.
Grounding serves to protect the product from lightning strikes.
Before connection, be sure to turn off the power of the device.
e
Speaker terminal cover Protects the speaker terminals.
f
Screw A screw for securing the speaker terminal cover.
