! OVERVIEW

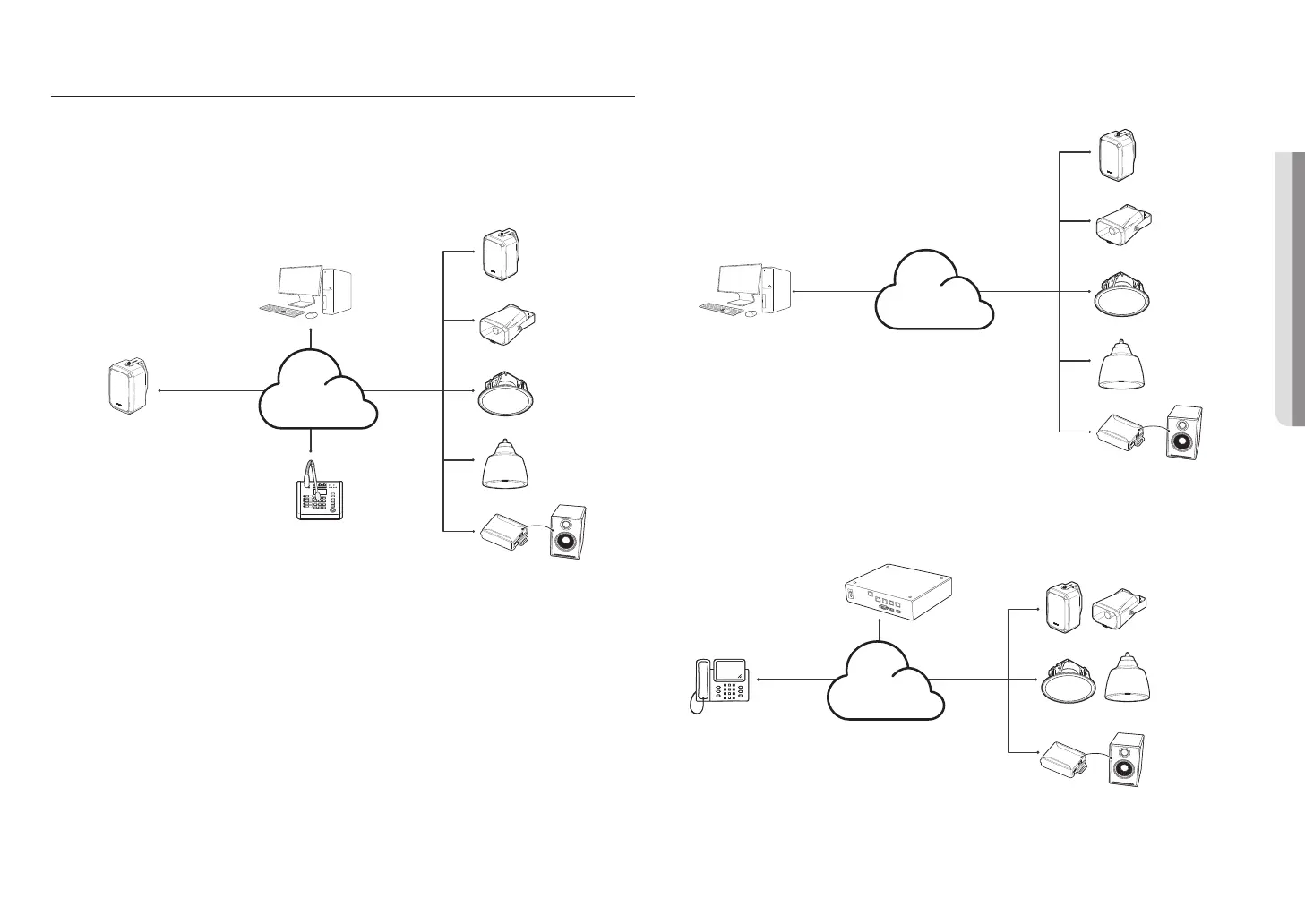

BROADCAST SYSTEM CONFIGURATION DIAGRAM
Controller Mode Block Diagram
It is a block diagram for using the IP speakers in a controller mode.
The controller mode speaker provides an operating GUI which is different from a regular speaker, and it can
control multiple speakers via the button mode or event & preset menu.
You can configure a broadcast system by connecting the IP microphone (SPA-M1000) to it. Refer to the
separate manual for the IP microphone.
1
2
3
4
5
1 2 3
4 5 6
7 8 9
*
0 #
VOLUME
MONITOR
MIC
TALK
PUSH
MAXMIN
AUX
MAXMIN
CHIME
MENU
PRESET
PREV
NEXT
CHIME
POWER
-6dB 0dB
NETWORK
+3dB +6dB
MAXMIN
ALL
Local PC
IP Speakers (ceiling-mount type)
IP Speakers (Pendant type)
IP Speakers (wall-mount type)
IP Speakers (Horn type)
IP Audio Module (Analogue Speaker)
<IP microphone>
IP Speaker (Controller mode)
Network
M
`
You can use the IP audio server (SPA-S1000) as a controller.
`
The IP audio module can be used as an IP speaker when connected to an analog speaker with a permissible input of 10W
or higher and an impedance of 8 ohms.
`
There should be only one controller mode product in the broadcast system.
If multiple controller mode speakers or servers are registered redundantly, broadcasting cannot be performed properly.
Speaker Mode Block Diagram
You can run a scheduled broadcasting, BGM, or TTS broadcasting using each speaker by itself.
IP Speakers (ceiling-mount type)
IP Speakers (Pendant type)
IP Speakers (wall-mount type)
IP Speakers (Horn type)
IP Audio Module (Analogue Speaker)
Local PC
Network
IP PBX Linkage Block Diagram
You can broadcast voice to each speaker with a VoIP phone which uses the SIP protocol by using the IP
PBX server.
VolP Phone
(SIP)
IP PBX
IP Speakers (wall-mount type/Horn type)
IP Speakers (ceiling-mount type/Pendant type)
IP Audio Module (Analogue Speaker)
Network
