! OVERVIEW

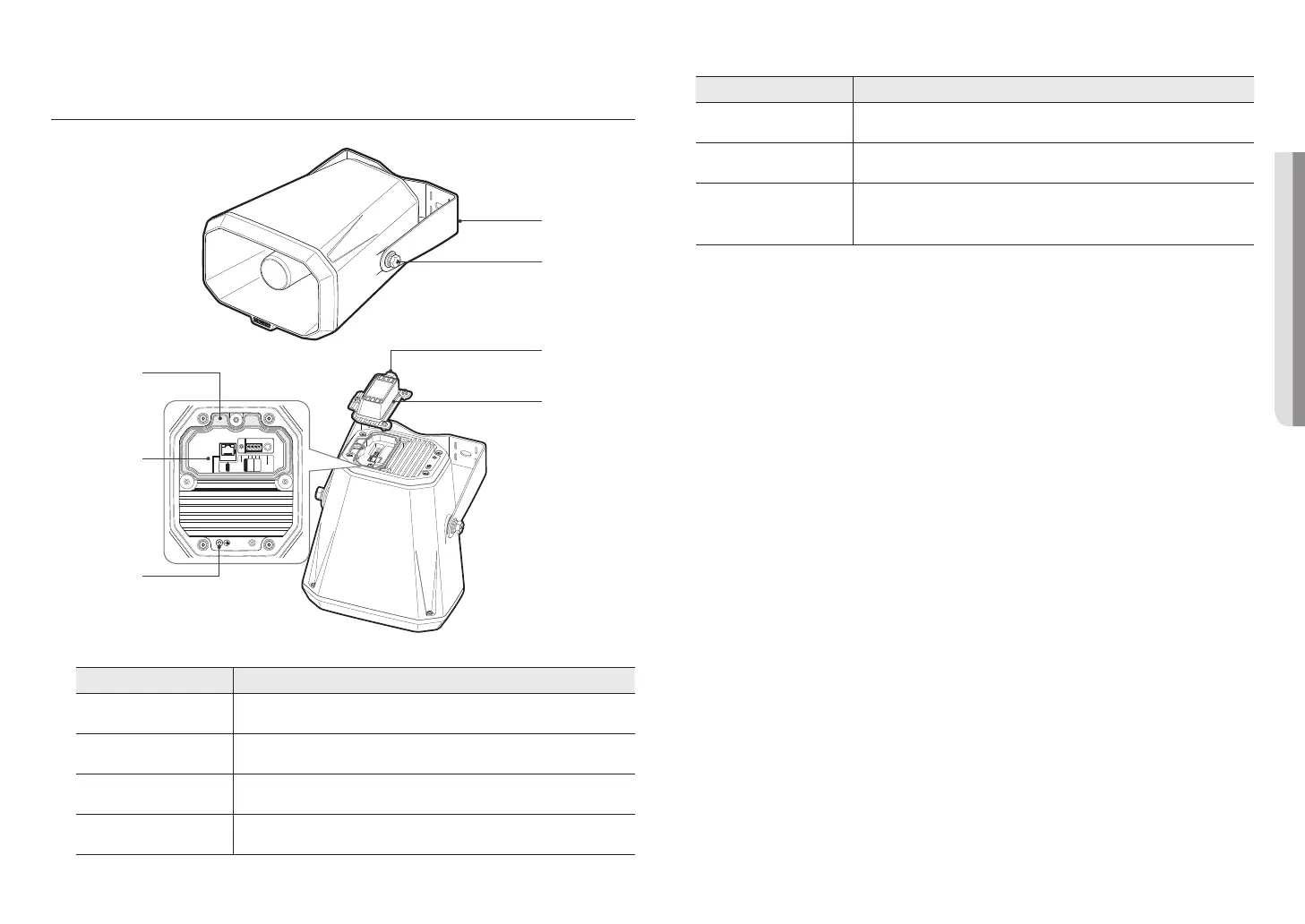

NAMES AND FUNCTIONS OF THE IP SPEAKERS (HORN TYPE)
(SPA - H100B/SPA - H100W)
a
b
c
d
PoE+
ALARM
OUT
IN
GND
RESET STAT
e
g
f
Name Function Description
a
Bracket Mounts the speaker on a wall.
b
Bracket fixing screw Secures the bracket.
c
Waterproof plug Used for waterproofing when connecting the network and alarm cables.
d
Speaker terminal cover Protects the speaker terminals.
Name Function Description
e
Gasket Dustproof/waterproof gasket.
f
Audio module Equipped with an audio module.
g
Grounding port
Used for earth-grounding.
Grounding serves to protect the product from lightning strikes.
Before connection, be sure to turn off the power of the device.
M
`
MicroSD card slot is not available.
`
BGM or Chime sound sources can only be uploaded to the internal storage.
