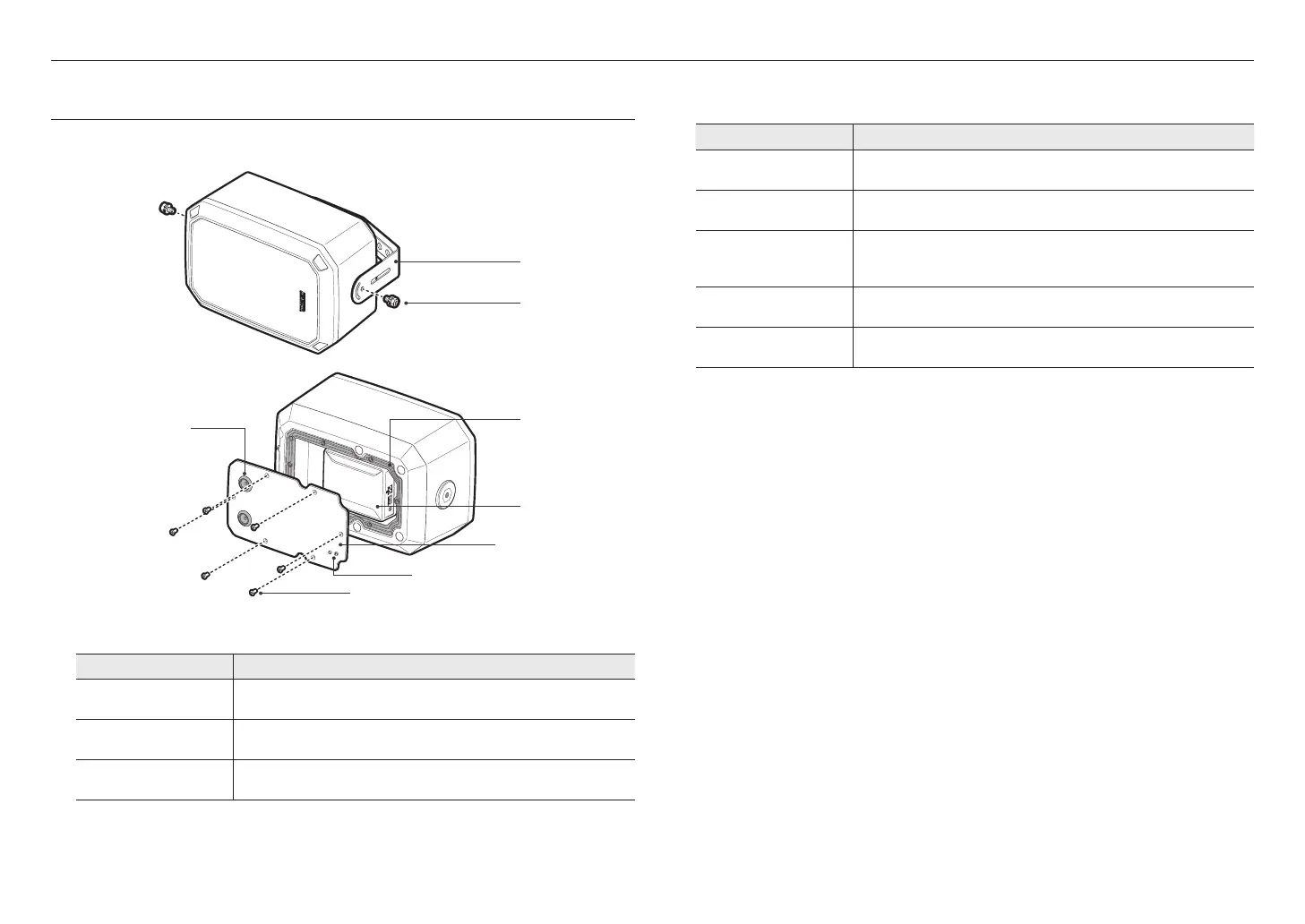

NAMES AND FUNCTIONS OF THE IP SPEAKERS (WALL-MOUNT TYPE)
(SPA-W100B/SPA-W100W)
a
b
c
d
e
f
h
g
Name Function Description
a
Bracket Mounts the speaker on a wall.
b
Bracket fixing screw Secures the bracket.
c
Audio module Equipped with an audio module.
Name Function Description
d
Gasket Dustproof/waterproof gasket.
e
Speaker terminal cover Covers the speaker terminal.
f
Grounding port
Used for earth-grounding.
Grounding serves to protect the product from lightning strikes.
Before connection, be sure to turn off the power of the device.
g
Screw A screw for securing the speaker terminal cover.
h
Cable bushing Connects network and alarm cables.
To Next Page
