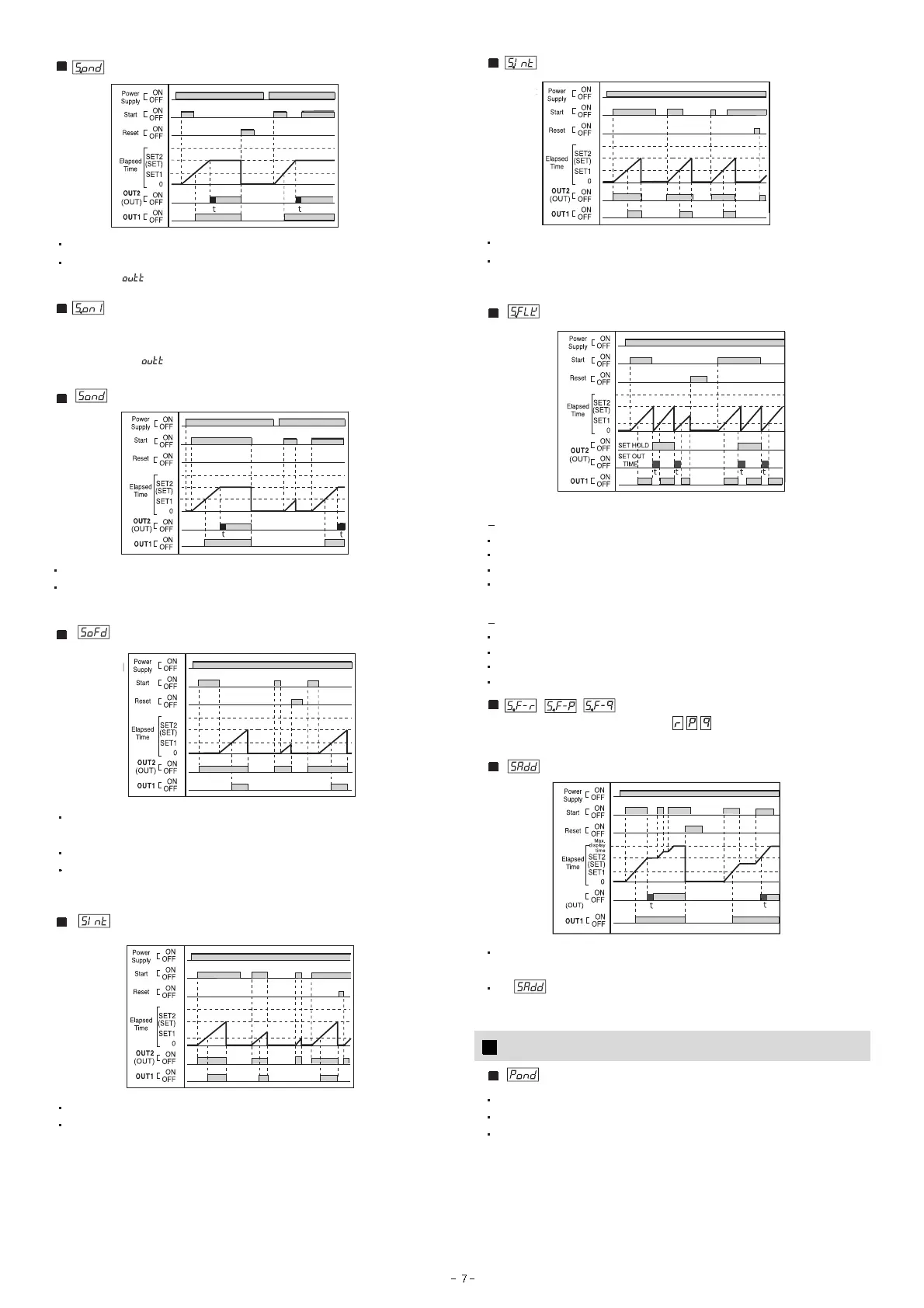

Twin Timer[TTIM]Output Action
Signal START / ON delay
Interval / Signal START
Flicker / Signal START
Signal Addition
Power RUN - ON delay
Flicker / Signal START
Same operation as counter output mode
Signal RUN / ON delay
Signal RUN / OFF delay
Interval / Signal RUN
Signal START / ON delay (Counter F output mode operation)
- RUN when initial setup value of START (CP2) is ON
- When setup time exceeds, display value will increase and put out the output (one
short output with Setting
Run when START (CP2) is ‘ON’ within the initial setup value
When setup time exceeds, display value will maintain and output (one short
output with setting).
Runs when START (CP2) is ‘ON’.
Output is ‘ON’ during the set time, and the indicated value is initialized and
output is ‘OFF’ when the set time elapses.
RUN when START (CP2) maintains ON and it will become HOLD when it is
OFF (cumulative Timer Function)
No output operation within Down time range
Runs when Power is ’ON’
OFF Output for T1 Time / ON for T2 Time. Repetition
Initializes and stops when Reset is ‘ON’
[HOLD] Setup (when output time [OUTT] is set at 0[HOLD])
Setup Set Time in Run Mode
Maintains the indication of initial value when Power is ‘ON’
Runs when becomes START (CP2).
ON/OFF Repetitious Action of control output after reaching the Set Time.
Initializes and stops when Reset is ‘ON’
ONE SHOT TIME Setup (when output time [OUTT] is set at more than 1)
Setup Set2 Time in Run Mode.
Maintains the indication of initial value when Power is ‘ON’
Runs when Power is ‘ON’
One Shot Output after reaching the Set Time.
Initializes and stops when Reset is ‘ON’
Run when CP2 (START) is ‘ON’ within the initial setup value and when ‘OFF’, it RESET
When setup time exceeds, it maintains display value and output time
When START (CP2) is ‘ON’ then output become ‘ON’ and time will display
initial value.
Time activates the initial value to run when START (CP2) is ‘OFF’.
The initial value is initialized and output is ‘OFF’ when the set time elapses.
Runs when START (CP2) is ‘ON’ and resets when ‘OFF’
Output is ‘ON’during the set time, and the initial value is initialized and output
is ‘OFF’ when the set time elapses.
